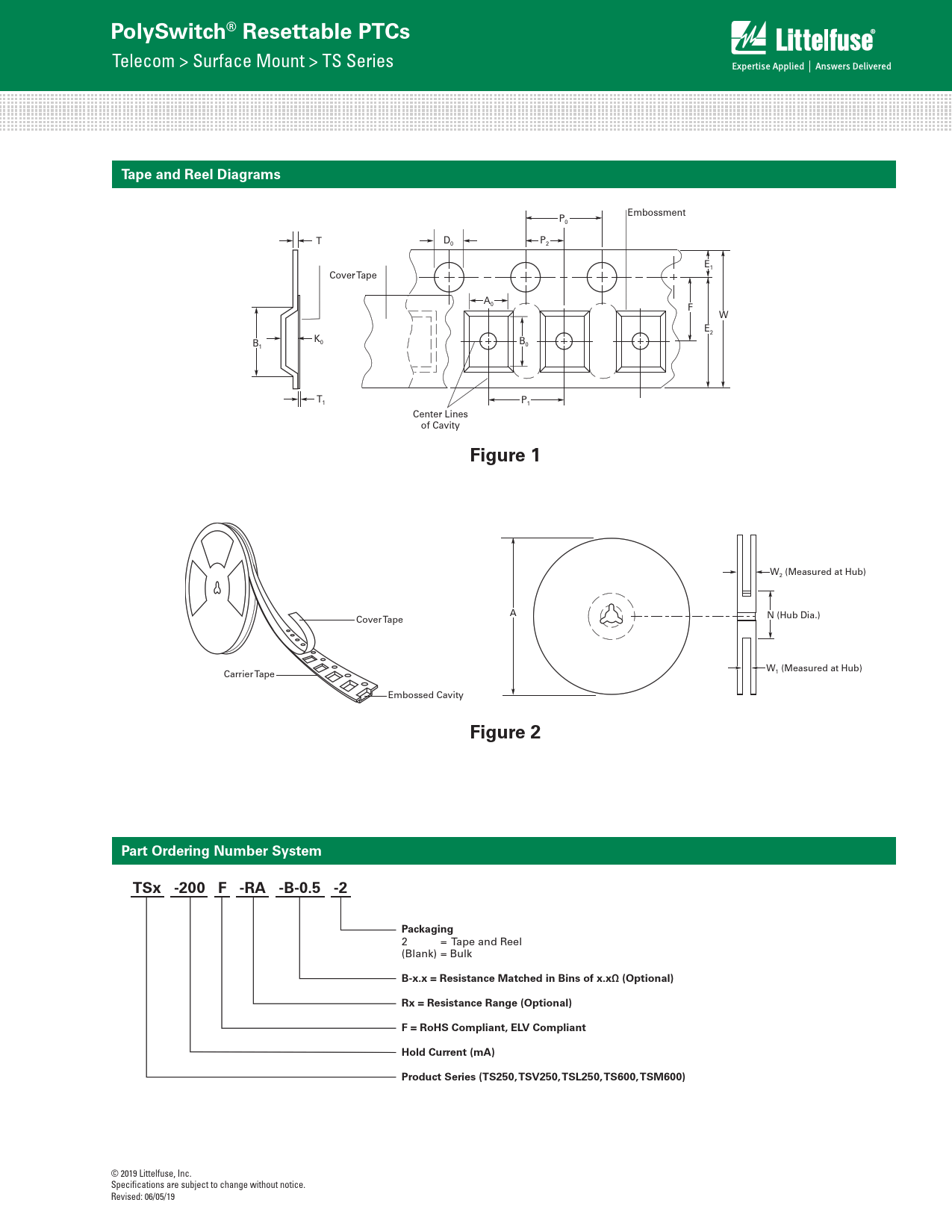

PolySwitch® Resettable PTCs. Tape and Reel Diagrams. Figure 1. Figure 2. Part Ordering Number System. TSx -200 F -RA -B-0.5 -2
Textversion des Dokuments
PolySwitch® Resettable PTCs
Telecom > Surface Mount > TS Series
Tape and Reel Diagrams
P Embossment 0 T D0 P2 E1 Cover Tape A0 F W E2 B K0 B0 1 T1 P1 Center Lines of Cavity
Figure 1
W (Measured at Hub) 2 A Cover Tape N (Hub Dia.) W (Measured at Hub) Carrier Tape 1 Embossed Cavity
Figure 2 Part Ordering Number System TSx -200 F -RA -B-0.5 -2 Packaging
2 = Tape and Reel (Blank) = Bulk
B-x.x = Resistance Matched in Bins of x.xΩ (Optional) Rx = Resistance Range (Optional) F = RoHS Compliant, ELV Compliant Hold Current (mA) Product Series (TS250, TSV250, TSL250, TS600, TSM600)
© 2019 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/05/19
