Datasheet TB67S111PG (Toshiba) - 7
| Hersteller | Toshiba |
| Beschreibung | BiCD Integrated Circuit Silicon Monolithic |
| Seiten / Seite | 15 / 7 — Absolute Maximum Ratings (Ta=25°C. Absolute maximum ratings. Operation … |
| Dateiformat / Größe | PDF / 315 Kb |
| Dokumentensprache | Englisch |
Absolute Maximum Ratings (Ta=25°C. Absolute maximum ratings. Operation Ranges (Ta=-20 to 85°C)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

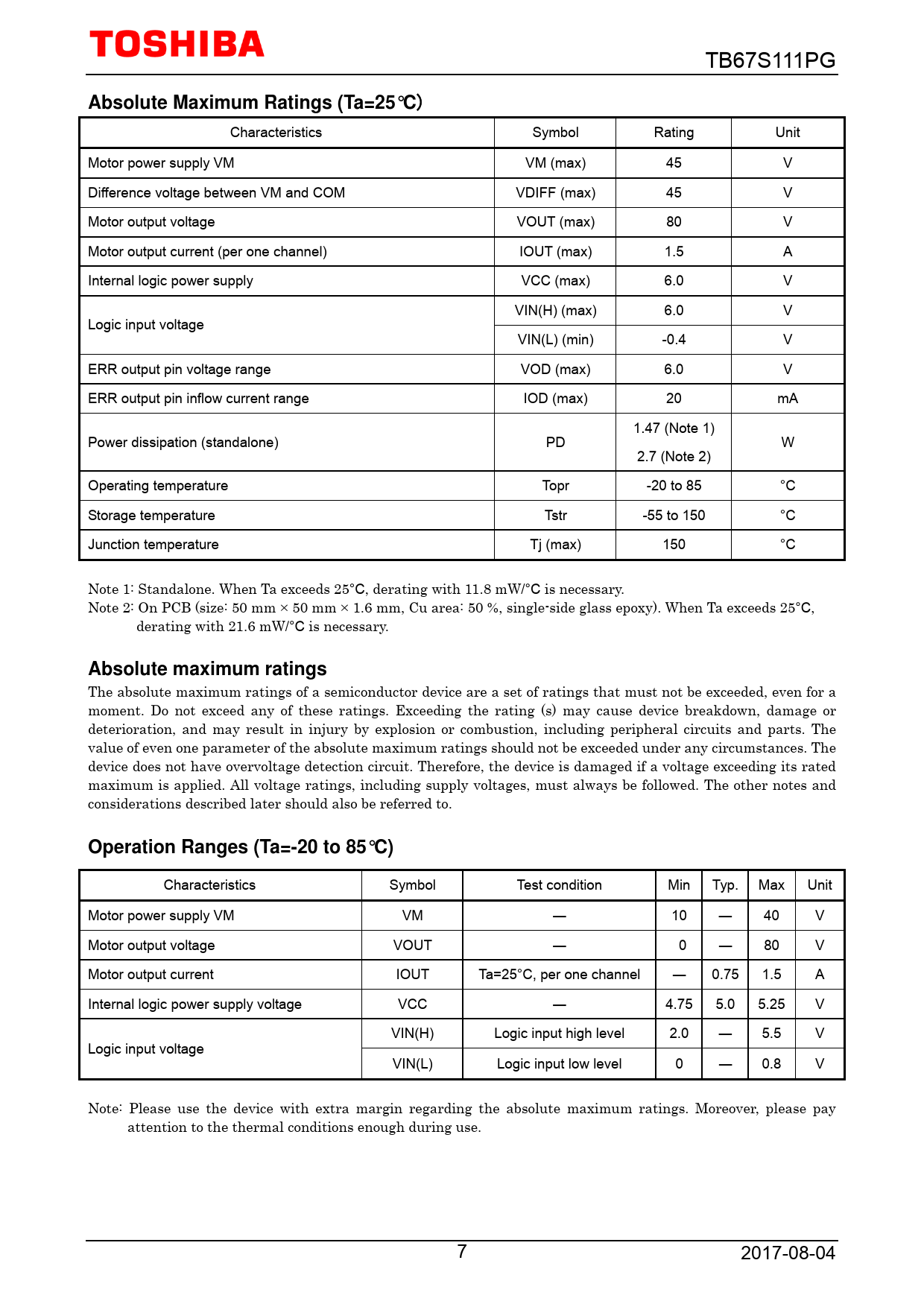

TB67S111PG
Absolute Maximum Ratings (Ta=25°C
) Characteristics Symbol Rating Unit Motor power supply VM VM (max) 45 V Dif erence voltage between VM and COM VDIFF (max) 45 V Motor output voltage VOUT (max) 80 V Motor output current (per one channel) IOUT (max) 1.5 A Internal logic power supply VCC (max) 6.0 V VIN(H) (max) 6.0 V Logic input voltage VIN(L) (min) -0.4 V ERR output pin voltage range VOD (max) 6.0 V ERR output pin inflow current range IOD (max) 20 mA 1.47 (Note 1) Power dissipation (standalone) PD W 2.7 (Note 2) Operating temperature Topr -20 to 85 °C Storage temperature Tstr -55 to 150 °C Junction temperature Tj (max) 150 °C Note 1: Standalone. When Ta exceeds 25°C, derating with 11.8 mW/°C is necessary. Note 2: On PCB (size: 50 mm × 50 mm × 1.6 mm, Cu area: 50 %, single-side glass epoxy). When Ta exceeds 25°C, derating with 21.6 mW/°C is necessary.
Absolute maximum ratings
The absolute maximum ratings of a semiconductor device are a set of ratings that must not be exceeded, even for a moment. Do not exceed any of these ratings. Exceeding the rating (s) may cause device breakdown, damage or deterioration, and may result in injury by explosion or combustion, including peripheral circuits and parts. The value of even one parameter of the absolute maximum ratings should not be exceeded under any circumstances. The device does not have overvoltage detection circuit. Therefore, the device is damaged if a voltage exceeding its rated maximum is applied. All voltage ratings, including supply voltages, must always be followed. The other notes and considerations described later should also be referred to.
Operation Ranges (Ta=-20 to 85°C)
Characteristics Symbol Test condition Min Typ. Max Unit Motor power supply VM VM ― 10 ― 40 V Motor output voltage VOUT ― 0 ― 80 V Motor output current IOUT Ta=25°C, per one channel ― 0.75 1.5 A Internal logic power supply voltage VCC ― 4.75 5.0 5.25 V VIN(H) Logic input high level 2.0 ― 5.5 V Logic input voltage VIN(L) Logic input low level 0 ― 0.8 V Note: Please use the device with extra margin regarding the absolute maximum ratings. Moreover, please pay attention to the thermal conditions enough during use. 7 2017-08-04
