Datasheet AD9218-EP (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | 10-Bit, 40/65/80/105 MSPS 3 V Dual A/D Converter |
| Seiten / Seite | 11 / 3 — Enhanced Product. AD9218-EP. SPECIFICATIONS DC SPECIFICATIONS. Table 1. … |
| Dateiformat / Größe | PDF / 217 Kb |
| Dokumentensprache | Englisch |

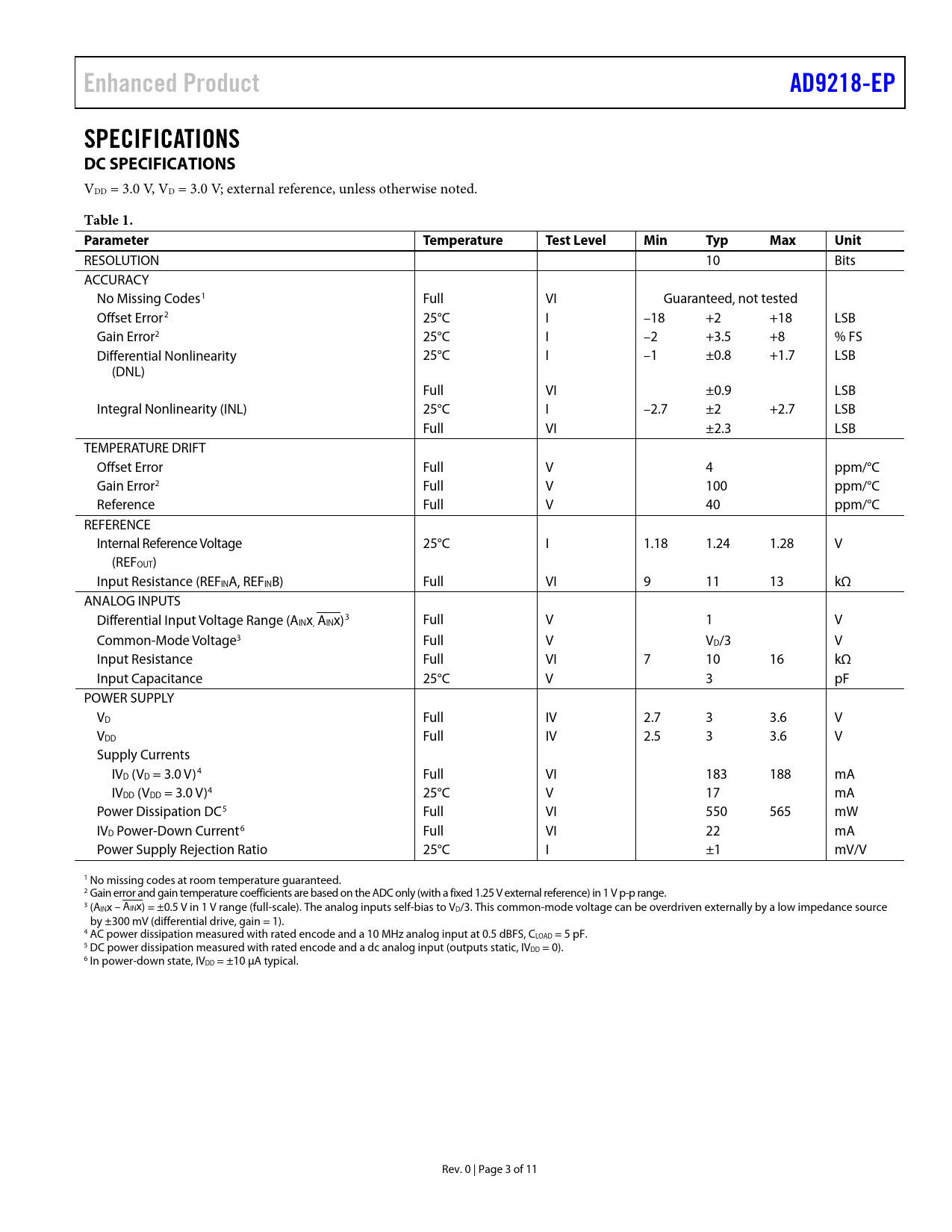

Enhanced Product. AD9218-EP. SPECIFICATIONS DC SPECIFICATIONS. Table 1. Parameter. Temperature. Test Level. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Enhanced Product AD9218-EP SPECIFICATIONS DC SPECIFICATIONS
VDD = 3.0 V, VD = 3.0 V; external reference, unless otherwise noted.
Table 1. Parameter Temperature Test Level Min Typ Max Unit
RESOLUTION 10 Bits ACCURACY No Missing Codes1 Full VI Guaranteed, not tested Offset Error2 25°C I –18 +2 +18 LSB Gain Error2 25°C I –2 +3.5 +8 % FS Differential Nonlinearity 25°C I –1 ±0.8 +1.7 LSB (DNL) Full VI ±0.9 LSB Integral Nonlinearity (INL) 25°C I –2.7 ±2 +2.7 LSB Full VI ±2.3 LSB TEMPERATURE DRIFT Offset Error Full V 4 ppm/°C Gain Error2 Full V 100 ppm/°C Reference Full V 40 ppm/°C REFERENCE Internal Reference Voltage 25°C I 1.18 1.24 1.28 V (REFOUT) Input Resistance (REFINA, REFINB) Full VI 9 11 13 kΩ ANALOG INPUTS Differential Input Voltage Range (AINx, AINx)3 Full V 1 V Common-Mode Voltage3 Full V VD/3 V Input Resistance Full VI 7 10 16 kΩ Input Capacitance 25°C V 3 pF POWER SUPPLY VD Full IV 2.7 3 3.6 V VDD Full IV 2.5 3 3.6 V Supply Currents IVD (VD = 3.0 V)4 Full VI 183 188 mA IVDD (VDD = 3.0 V)4 25°C V 17 mA Power Dissipation DC5 Full VI 550 565 mW IVD Power-Down Current6 Full VI 22 mA Power Supply Rejection Ratio 25°C I ±1 mV/V 1 No missing codes at room temperature guaranteed. 2 Gain error and gain temperature coefficients are based on the ADC only (with a fixed 1.25 V external reference) in 1 V p-p range. 3 (AINx – AINx) = ±0.5 V in 1 V range (full-scale). The analog inputs self-bias to VD/3. This common-mode voltage can be overdriven externally by a low impedance source by ±300 mV (differential drive, gain = 1). 4 AC power dissipation measured with rated encode and a 10 MHz analog input at 0.5 dBFS, CLOAD = 5 pF. 5 DC power dissipation measured with rated encode and a dc analog input (outputs static, IVDD = 0). 6 In power-down state, IVDD = ±10 µA typical. Rev. 0 | Page 3 of 11 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS DIGITAL SPECIFICATIONS AC SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS EXPLANATION OF TEST LEVELS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
