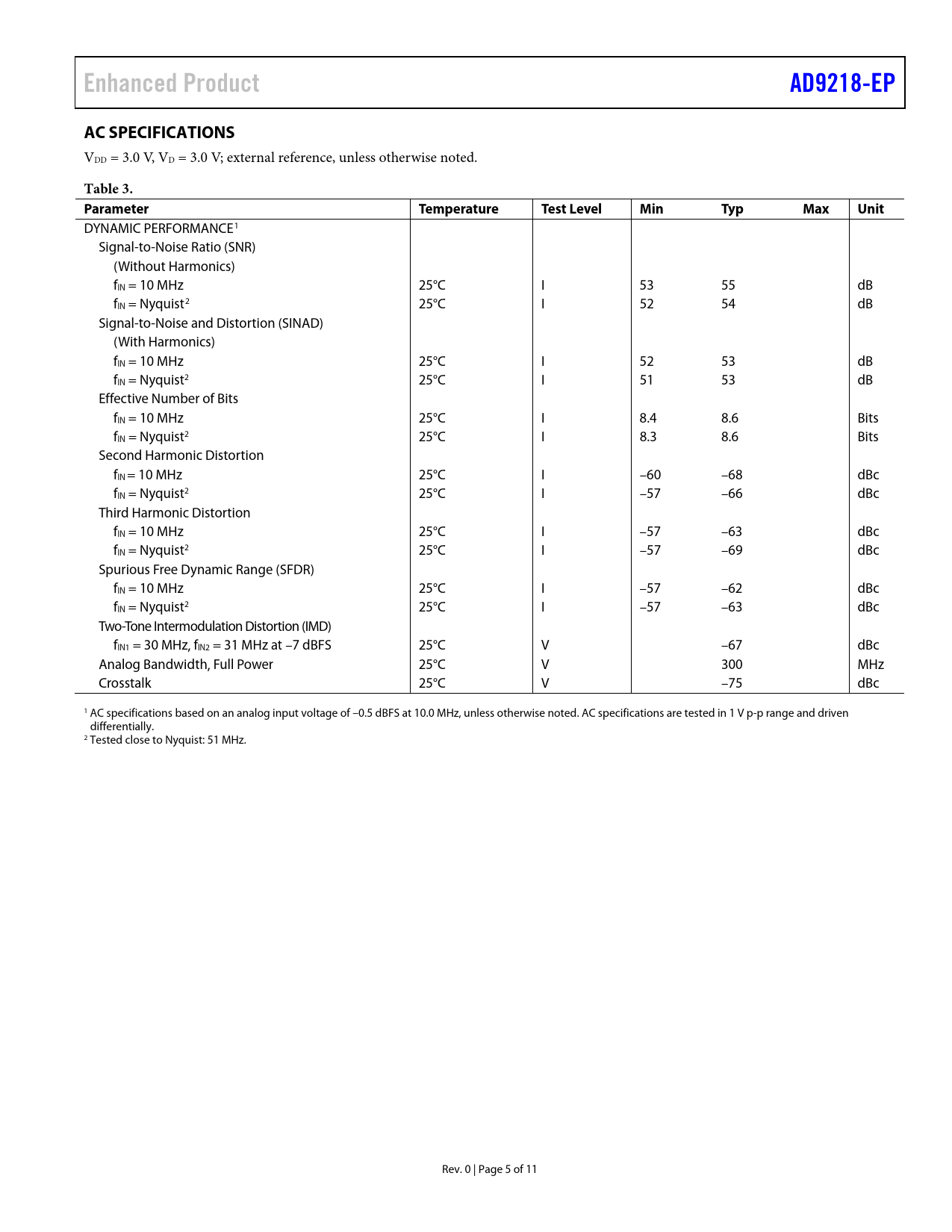

Enhanced ProductAD9218-EPAC SPECIFICATIONS VDD = 3.0 V, VD = 3.0 V; external reference, unless otherwise noted. Table 3. ParameterTemperatureTest LevelMinTypMaxUnit DYNAMIC PERFORMANCE1 Signal-to-Noise Ratio (SNR) (Without Harmonics) fIN = 10 MHz 25°C I 53 55 dB fIN = Nyquist2 25°C I 52 54 dB Signal-to-Noise and Distortion (SINAD) (With Harmonics) fIN = 10 MHz 25°C I 52 53 dB fIN = Nyquist2 25°C I 51 53 dB Effective Number of Bits fIN = 10 MHz 25°C I 8.4 8.6 Bits fIN = Nyquist2 25°C I 8.3 8.6 Bits Second Harmonic Distortion fIN = 10 MHz 25°C I –60 –68 dBc fIN = Nyquist2 25°C I –57 –66 dBc Third Harmonic Distortion fIN = 10 MHz 25°C I –57 –63 dBc fIN = Nyquist2 25°C I –57 –69 dBc Spurious Free Dynamic Range (SFDR) fIN = 10 MHz 25°C I –57 –62 dBc fIN = Nyquist2 25°C I –57 –63 dBc Two-Tone Intermodulation Distortion (IMD) fIN1 = 30 MHz, fIN2 = 31 MHz at –7 dBFS 25°C V –67 dBc Analog Bandwidth, Full Power 25°C V 300 MHz Crosstalk 25°C V –75 dBc 1 AC specifications based on an analog input voltage of –0.5 dBFS at 10.0 MHz, unless otherwise noted. AC specifications are tested in 1 V p-p range and driven differentially. 2 Tested close to Nyquist: 51 MHz. Rev. 0 | Page 5 of 11 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS DIGITAL SPECIFICATIONS AC SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS EXPLANATION OF TEST LEVELS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
