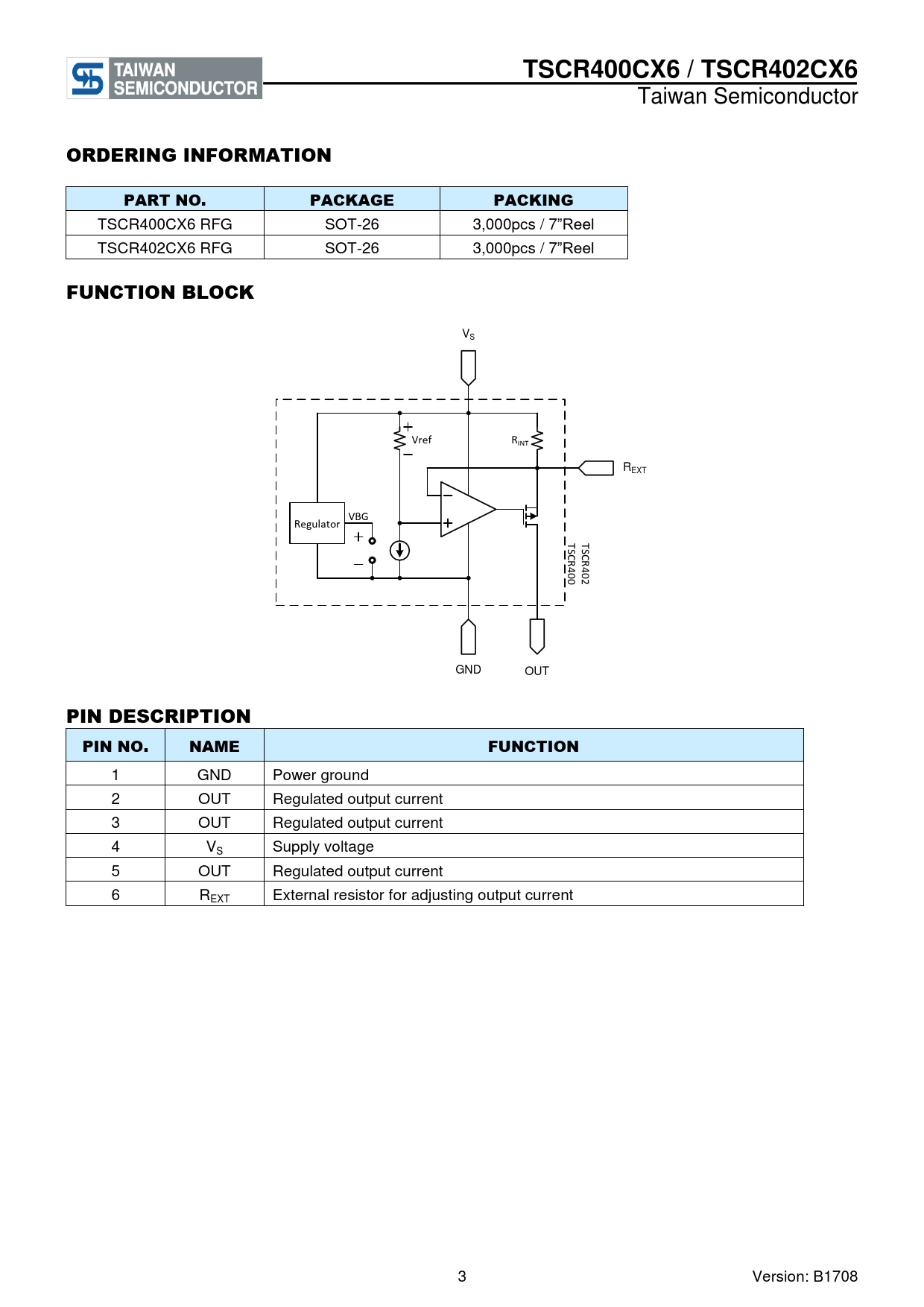

TSCR400CX6 / TSCR402CX6. ORDERING INFORMATION. PART NO. PACKAGE. PACKING. FUNCTION BLOCK. PIN DESCRIPTION. PIN NO. NAME. FUNCTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
TSCR400CX6 / TSCR402CX6
Taiwan Semiconductor
ORDERING INFORMATION PART NO. PACKAGE PACKING
TSCR400CX6 RFG SOT-26 3,000pcs / 7”Reel TSCR402CX6 RFG SOT-26 3,000pcs / 7”Reel
FUNCTION BLOCK
VS Vref RINT REXT VBG Regulator T T S S C C R R 4 4 0 0 0 2 GND OUT
PIN DESCRIPTION PIN NO. NAME FUNCTION
1 GND Power ground 2 OUT Regulated output current 3 OUT Regulated output current 4 VS Supply voltage 5 OUT Regulated output current 6 REXT External resistor for adjusting output current 3 Version: B1708
