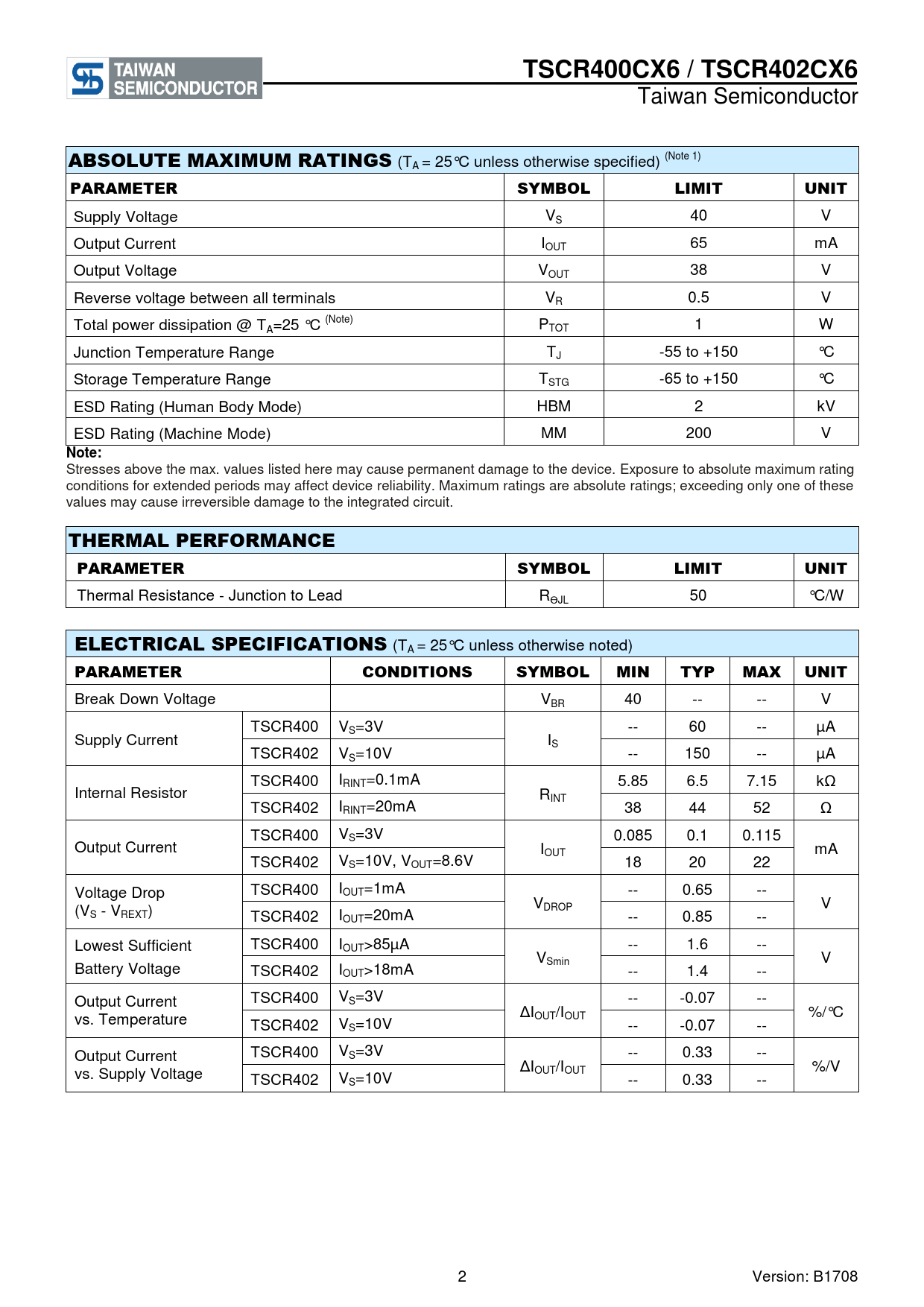

TSCR400CX6 / TSCR402CX6
Taiwan Semiconductor
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise specified) (Note 1)
PARAMETER SYMBOL LIMIT UNIT
Supply Voltage VS 40 V Output Current IOUT 65 mA Output Voltage VOUT 38 V Reverse voltage between all terminals VR 0.5 V Total power dissipation @ TA=25 °C (Note) PTOT 1 W Junction Temperature Range TJ -55 to +150 °C Storage Temperature Range TSTG -65 to +150 °C ESD Rating (Human Body Mode) HBM 2 kV ESD Rating (Machine Mode) MM 200 V
Note:
Stresses above the max. values listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Maximum ratings are absolute ratings; exceeding only one of these values may cause irreversible damage to the integrated circuit.
THERMAL PERFORMANCE PARAMETER SYMBOL LIMIT UNIT
Thermal Resistance - Junction to Lead RӨJL 50 °C/W
ELECTRICAL SPECIFICATIONS
(TA = 25°C unless otherwise noted)
PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNIT
Break Down Voltage VBR 40 -- -- V TSCR400 VS=3V -- 60 -- µA Supply Current IS TSCR402 VS=10V -- 150 -- µA TSCR400 IRINT=0.1mA 5.85 6.5 7.15 kΩ Internal Resistor RINT TSCR402 IRINT=20mA 38 44 52 Ω TSCR400 VS=3V 0.085 0.1 0.115 Output Current IOUT mA TSCR402 VS=10V, VOUT=8.6V 18 20 22 Voltage Drop TSCR400 IOUT=1mA -- 0.65 -- V V (V DROP S - VREXT) TSCR402 IOUT=20mA -- 0.85 -- Lowest Sufficient TSCR400 IOUT>85µA -- 1.6 -- VSmin V Battery Voltage TSCR402 IOUT>18mA -- 1.4 -- Output Current TSCR400 VS=3V -- -0.07 -- ΔI %/°C vs. Temperature OUT/IOUT TSCR402 VS=10V -- -0.07 -- Output Current TSCR400 VS=3V -- 0.33 -- ΔI %/V vs. Supply Voltage OUT/IOUT TSCR402 VS=10V -- 0.33 --
2 Version: B1708
