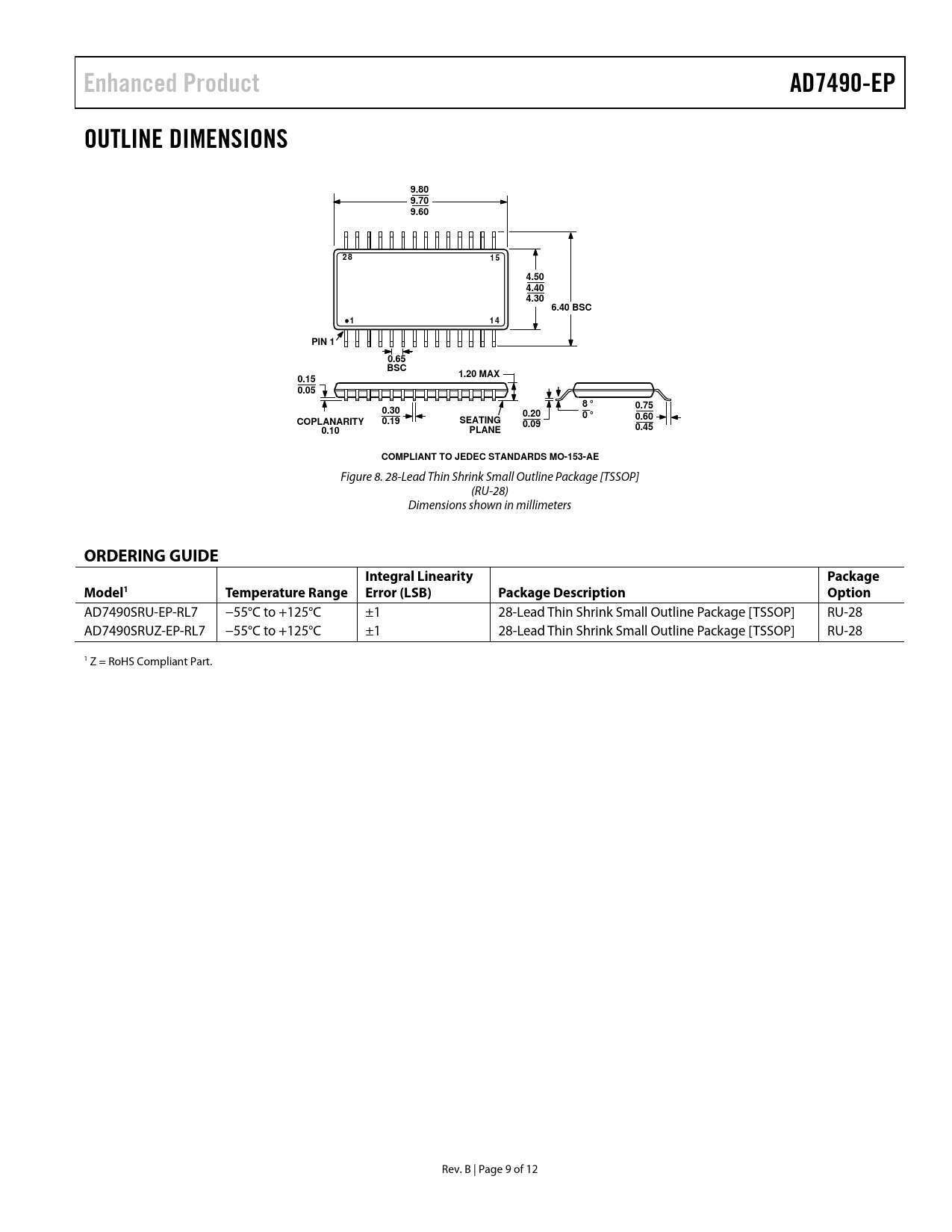

Enhanced Product AD7490-EP OUTLINE DIMENSIONS 9.80 9.70 9.60 2 8 1 5 4.50 4.40 4.30 6.40 BSC 1 1 4 PIN 1 0.65 BSC 1.20 MAX 0.15 0.05 8 ° 0.75 0.30 0.20 0 ° 0.60 COPLANARITY 0.19 SEATING 0.09 0.10 PLANE 0.45 COMPLIANT TO JEDEC STANDARDS MO-153-AE
Figure 8. 28-Lead Thin Shrink Small Outline Package [TSSOP] (RU-28) Dimensions shown in millimeters
ORDERING GUIDE Integral Linearity Package Model1 Temperature Range Error (LSB) Package Description Option
AD7490SRU-EP-RL7 −55°C to +125°C ±1 28-Lead Thin Shrink Small Outline Package [TSSOP] RU-28 AD7490SRUZ-EP-RL7 −55°C to +125°C ±1 28-Lead Thin Shrink Small Outline Package [TSSOP] RU-28 1 Z = RoHS Compliant Part. Rev. B | Page 9 of 12 Document Outline Features Enhanced Product Features Functional Block Diagram General Description Product Highlights Revision History Specifications Timing Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Outline Dimensions Ordering Guide
