Datasheet ADL6010S (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | Aerospace ADL6010S Fast Responding, 45 dB Range, 0.5 GHz TO 43.5 GHz Envelope Detector |
| Seiten / Seite | 8 / 8 — ADL6010S. 6.0. Die Packaging Information. Table V – Packaging … |
| Revision | C |
| Dateiformat / Größe | PDF / 199 Kb |
| Dokumentensprache | Englisch |

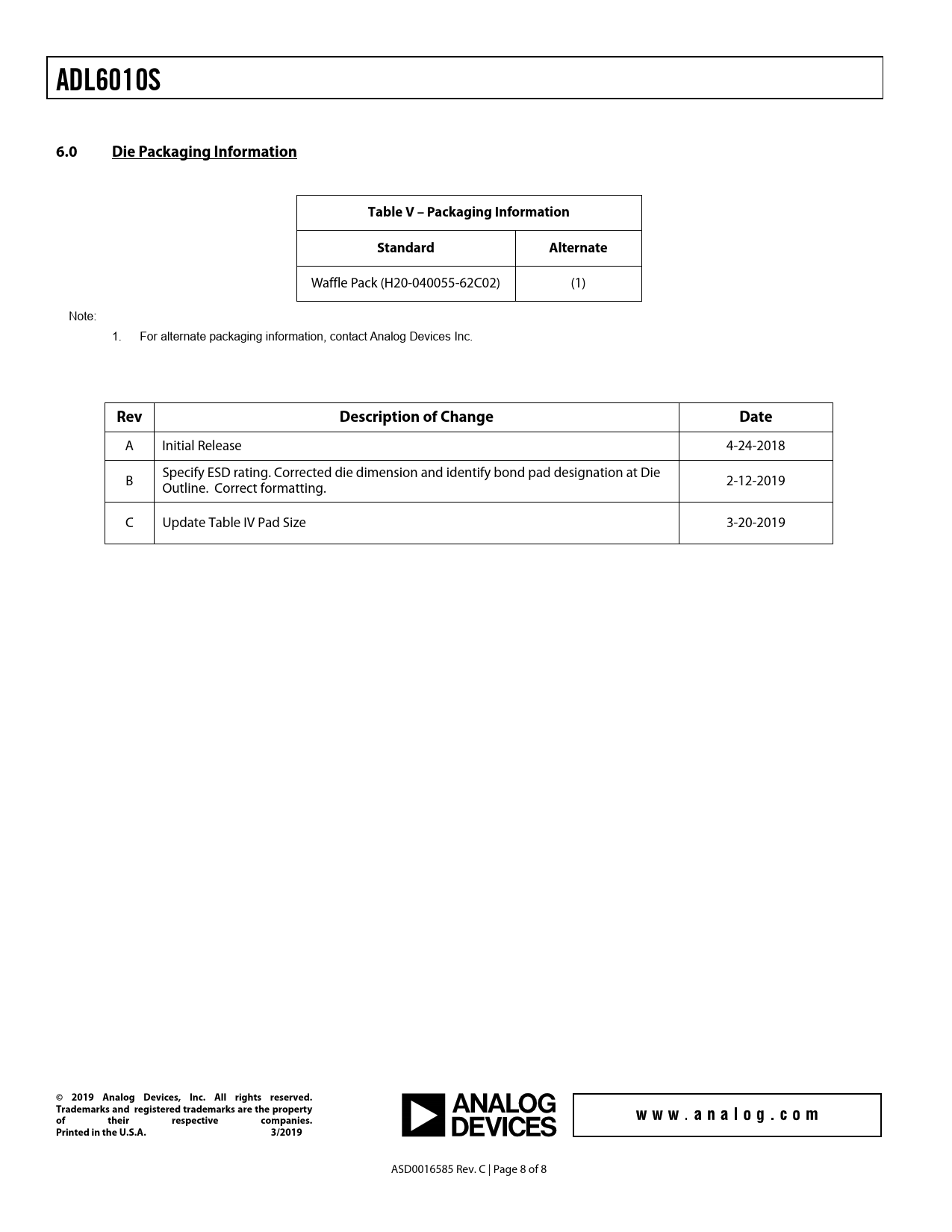

ADL6010S. 6.0. Die Packaging Information. Table V – Packaging Information. Standard. Alternate. Rev. Description of Change. Date
Textversion des Dokuments
ADL6010S 6.0 Die Packaging Information Table V – Packaging Information Standard Alternate
Waffle Pack (H20-040055-62C02) (1) Note: 1. For alternate packaging information, contact Analog Devices Inc.
Rev Description of Change Date
A Initial Release 4-24-2018 Specify ESD rating. Corrected die dimension and identify bond pad designation at Die B 2-12-2019 Outline. Correct formatting. C Update Table IV Pad Size 3-20-2019
© 2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective companies. Printed in the U.S.A. 3/2019
ASD0016585 Rev. C | Page 8 of 8
