FAST RESPONDING, 45 dB RANGE, 0.5 GHz TO. 43.5 GHz ENVELOPE DETECTOR DIE. ADL6010S. 1.0. Scope. 2.0. Part Number. 3.0. Die Information
Textversion des Dokuments

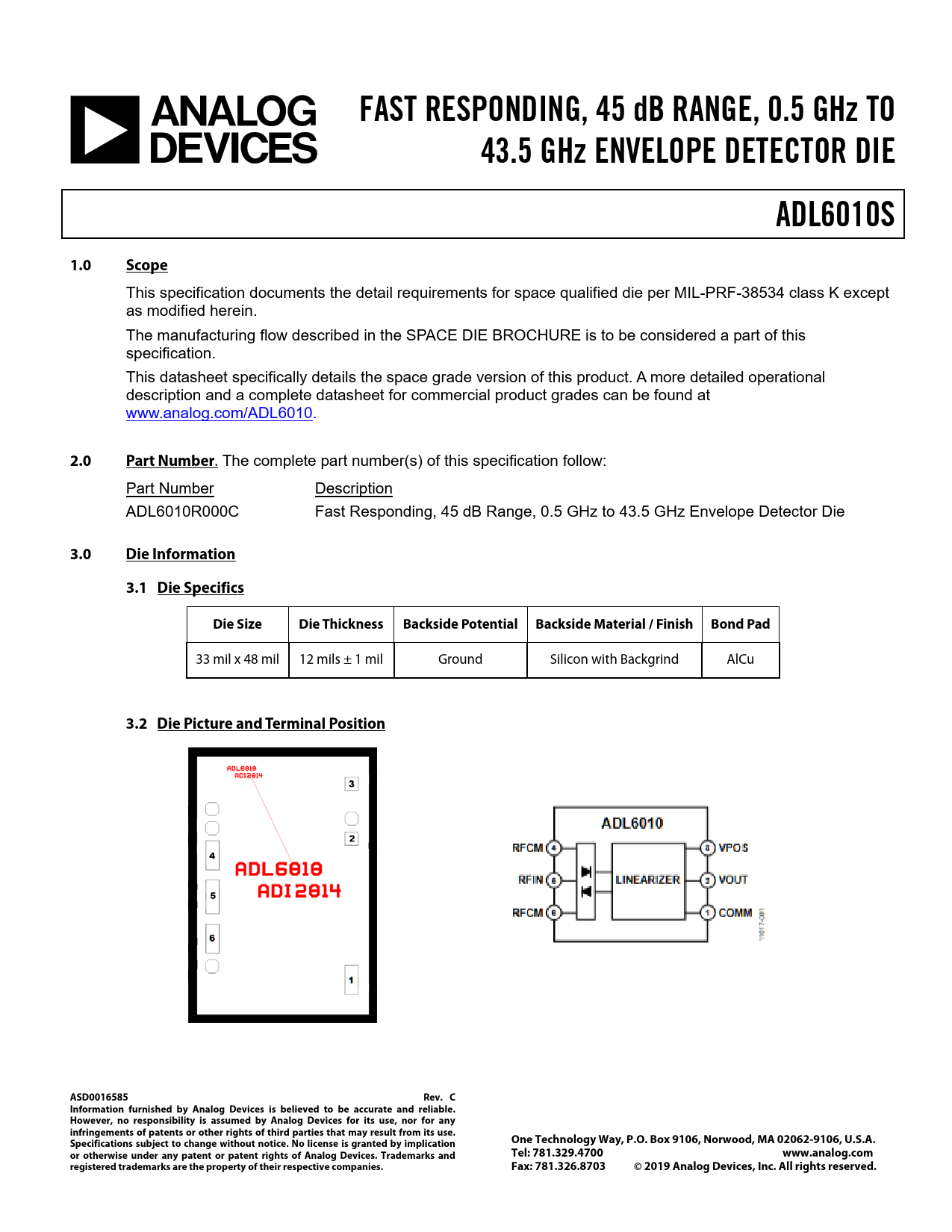

FAST RESPONDING, 45 dB RANGE, 0.5 GHz TO 43.5 GHz ENVELOPE DETECTOR DIE ADL6010S 1.0 Scope
This specification documents the detail requirements for space qualified die per MIL-PRF-38534 class K except as modified herein. The manufacturing flow described in the SPACE DIE BROCHURE is to be considered a part of this specification. This datasheet specifically details the space grade version of this product. A more detailed operational description and a complete datasheet for commercial product grades can be found at www.analog.com/ADL6010.
2.0 Part Number
. The complete part number(s) of this specification follow: Part Number Description ADL6010R000C Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector Die
3.0 Die Information 3.1 Die Specifics Die Size Die Thickness Backside Potential Backside Material / Finish Bond Pad
33 mil x 48 mil 12 mils ± 1 mil Ground
Silicon with Backgrind
AlCu
3.2 Die Picture and Terminal Position ASD0016585 Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. or otherwise under any patent or patent rights of Analog Devices. Trademarks and Tel: 781.329.4700 www.analog.com registered trademarks are the property of their respective companies. Fax: 781.326.8703 © 2019 Analog Devices, Inc. All rights reserved.
