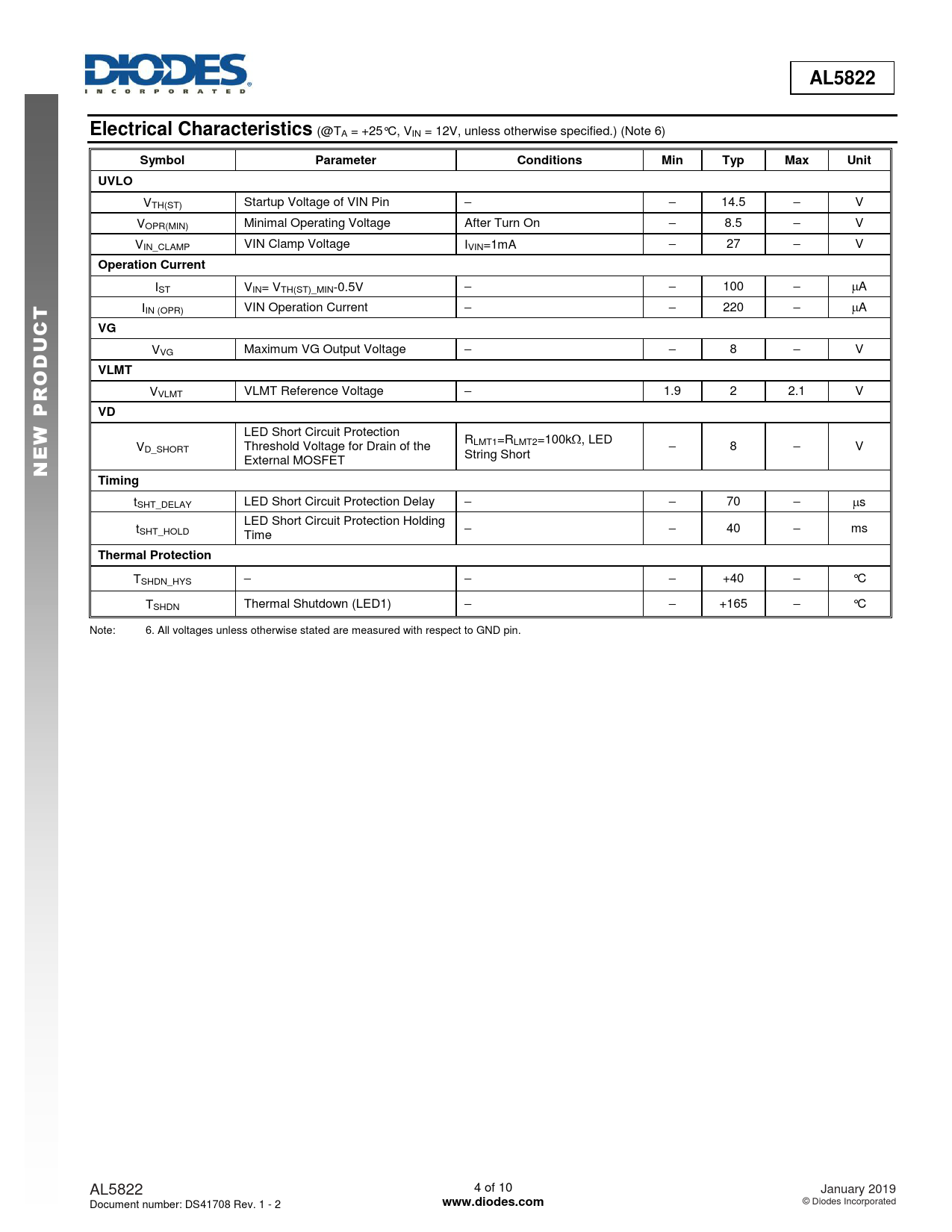

AL5822 Electrical Characteristics
(@TA = +25°C, VIN = 12V, unless otherwise specified.) (Note 6)
Symbol Parameter Conditions Min Typ Max Unit UVLO
VTH(ST) Startup Voltage of VIN Pin – – 14.5 – V VOPR(MIN) Minimal Operating Voltage After Turn On – 8.5 – V VIN_CLAMP VIN Clamp Voltage IVIN=1mA – 27 – V
Operation Current
IST VIN= VTH(ST)_MIN-0.5V – – 100 – A
T
IIN (OPR) VIN Operation Current – – 220 – A
C VG U D
VVG Maximum VG Output Voltage – – 8 – V
O VLMT R
VVLMT VLMT Reference Voltage – 1.9 2 2.1 V
P VD W
LED Short Circuit Protection
E
R V LMT1=RLMT2=100k, LED D_SHORT Threshold Voltage for Drain of the – 8 – V String Short
N
External MOSFET
Timing
tSHT_DELAY LED Short Circuit Protection Delay – – 70 – s LED Short Circuit Protection Holding tSHT_HOLD – – 40 – ms Time
Thermal Protection
TSHDN_HYS – – – +40 – °C TSHDN Thermal Shutdown (LED1) – – +165 – °C Note: 6. All voltages unless otherwise stated are measured with respect to GND pin. AL5822 4 of 10 January 2019 Document number: DS41708 Rev. 1 - 2
