Datasheet SBR10M100P5Q (Diodes)
| Hersteller | Diodes |
| Beschreibung | Surface Mount Schottky Barrier Diode |
| Seiten / Seite | 6 / 1 — SBR10M100P5Q. Green. 10A SBR. SUPER BARRIER RECTIFIER. PowerDI5. Product … |
| Dateiformat / Größe | PDF / 494 Kb |
| Dokumentensprache | Englisch |
SBR10M100P5Q. Green. 10A SBR. SUPER BARRIER RECTIFIER. PowerDI5. Product Summary (@TA = +25°C). Features and Benefits. RRM (V). IF (A)
Modelllinie für dieses Datenblatt
Textversion des Dokuments

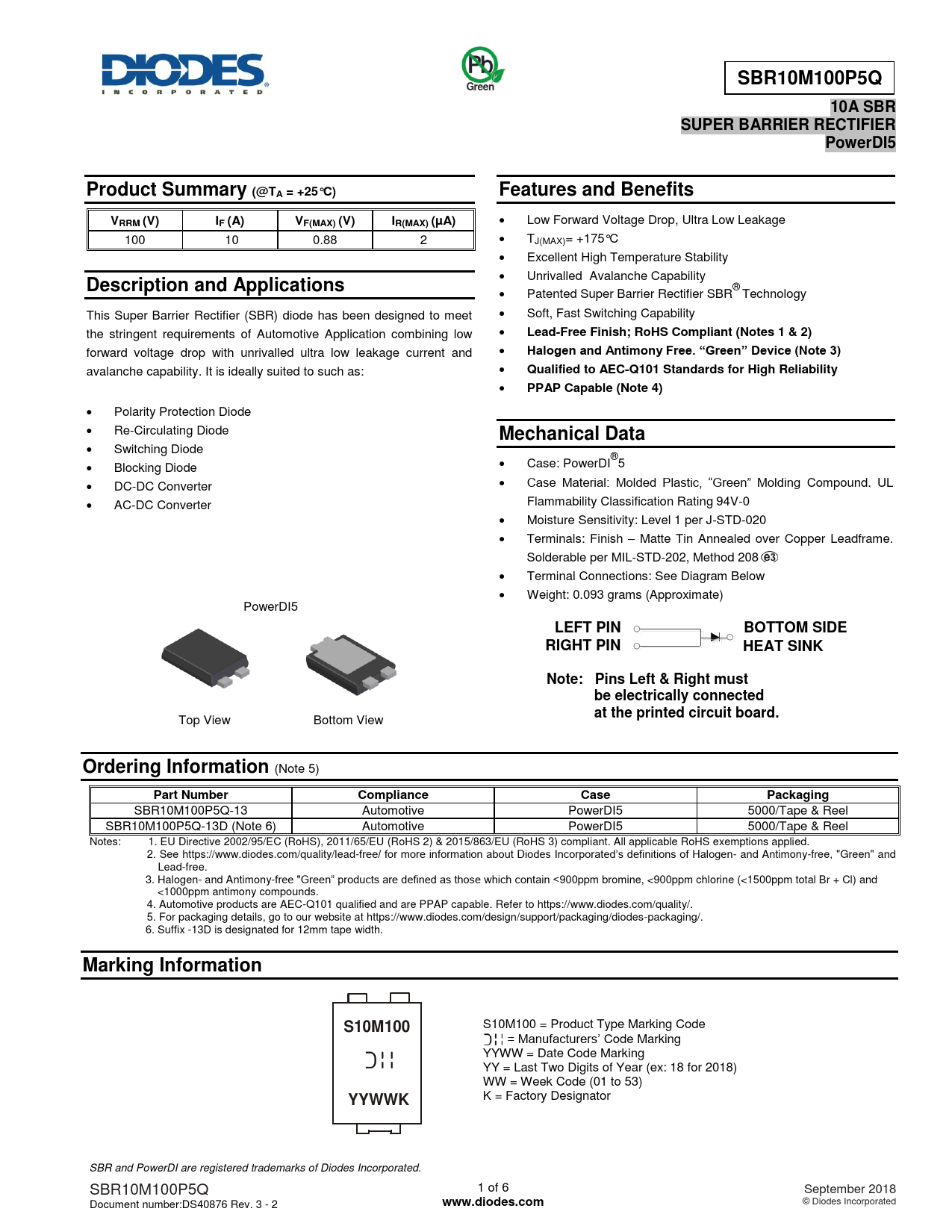

1 SBR10M100P5Q Green 10A SBR SUPER BARRIER RECTIFIER PowerDI5 Product Summary (@TA = +25°C) Features and Benefits V RRM (V) IF (A) VF(MAX) (V) IR(MAX) (µA)
Low Forward Voltage Drop, Ultra Low Leakage 100 10 0.88 2 TJ(MAX)= +175°C Excellent High Temperature Stability Unrivalled Avalanche Capability
Description and Applications
® Patented Super Barrier Rectifier SBR Technology This Super Barrier Rectifier (SBR) diode has been designed to meet Soft, Fast Switching Capability the stringent requirements of Automotive Application combining low
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
forward voltage drop with unrivalled ultra low leakage current and
Halogen and Antimony Free. “Green” Device (Note 3)
avalanche capability. It is ideally suited to such as:
Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)
Polarity Protection Diode Re-Circulating Diode
Mechanical Data
Switching Diode ® Blocking Diode Case: PowerDI 5 DC-DC Converter Case Material: Molded Plastic, “Green” Molding Compound. UL AC-DC Converter Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Below Weight: 0.093 grams (Approximate) PowerDI5
LEFT PIN BOTTOM SIDE RIGHT PIN HEAT SINK Note: Pins Left & Right must be electrically connected at the printed circuit board.
Top View Bottom View
Ordering Information
(Note 5)
Part Number Compliance Case Packaging
SBR10M100P5Q-13 Automotive PowerDI5 5000/Tape & Reel SBR10M100P5Q-13D (Note 6) Automotive PowerDI5 5000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/. 5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. 6. Suffix -13D is designated for 12mm tape width.
Marking Information S10M100
S10M100 = Product Type Marking Code = Manufacturers’ Code Marking YYWW = Date Code Marking YY = Last Two Digits of Year (ex: 18 for 2018) WW = Week Code (01 to 53)
YYWWK
K = Factory Designator SBR and PowerDI are registered trademarks of Diodes Incorporated. SBR10M100P5Q 1 of 6 September 2018 Document number:DS40876 Rev. 3 - 2
www.diodes.com
© Diodes Incorporated
