5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR. S-1318 Series. Electrical Characteristics
Modelllinie für dieses Datenblatt
- S-1318A12-A4T2U4 S-1318A12-M5T1U4 S-1318A18-A4T2U4 S-1318A18-M5T1U4 S-1318A22-A4T2U4 S-1318A22-M5T1U4 S-1318A23-A4T2U4 S-1318A23-M5T1U4 S-1318A25-A4T2U4 S-1318A25-M5T1U4 S-1318A28-A4T2U4 S-1318A28-M5T1U4 S-1318A30-A4T2U4 S-1318A30-M5T1U4 S-1318A33-A4T2U4 S-1318A33-M5T1U4 S-1318B12-A4T2U4 S-1318B12-M5T1U4 S-1318B18-A4T2U4 S-1318B18-M5T1U4 S-1318B22-A4T2U4 S-1318B22-M5T1U4 S-1318B23-A4T2U4 S-1318B23-M5T1U4 S-1318B25-A4T2U4 S-1318B25-M5T1U4 S-1318B28-A4T2U4 S-1318B28-M5T1U4 S-1318B30-A4T2U4 S-1318B30-M5T1U4 S-1318B33-A4T2U4 S-1318B33-M5T1U4 S-1318C12-A4T2U4 S-1318C12-M5T1U4 S-1318C18-A4T2U4 S-1318C18-M5T1U4 S-1318C22-A4T2U4 S-1318C22-M5T1U4 S-1318C23-A4T2U4 S-1318C23-M5T1U4 S-1318C25-A4T2U4 S-1318C25-M5T1U4 S-1318C28-A4T2U4 S-1318C28-M5T1U4 S-1318C30-A4T2U4 S-1318C30-M5T1U4 S-1318C33-A4T2U4 S-1318C33-M5T1U4 S-1318D12-A4T2U4 S-1318D12-M5T1U4 S-1318D18-A4T2U4 S-1318D18-M5T1U4 S-1318D22-A4T2U4 S-1318D22-M5T1U4 S-1318D23-A4T2U4 S-1318D23-M5T1U4 S-1318D25-A4T2U4 S-1318D25-M5T1U4 S-1318D28-A4T2U4 S-1318D28-M5T1U4 S-1318D30-A4T2U4 S-1318D30-M5T1U4 S-1318D33-A4T2U4 S-1318D33-M5T1U4
Textversion des Dokuments
5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR
Rev.1.1_00

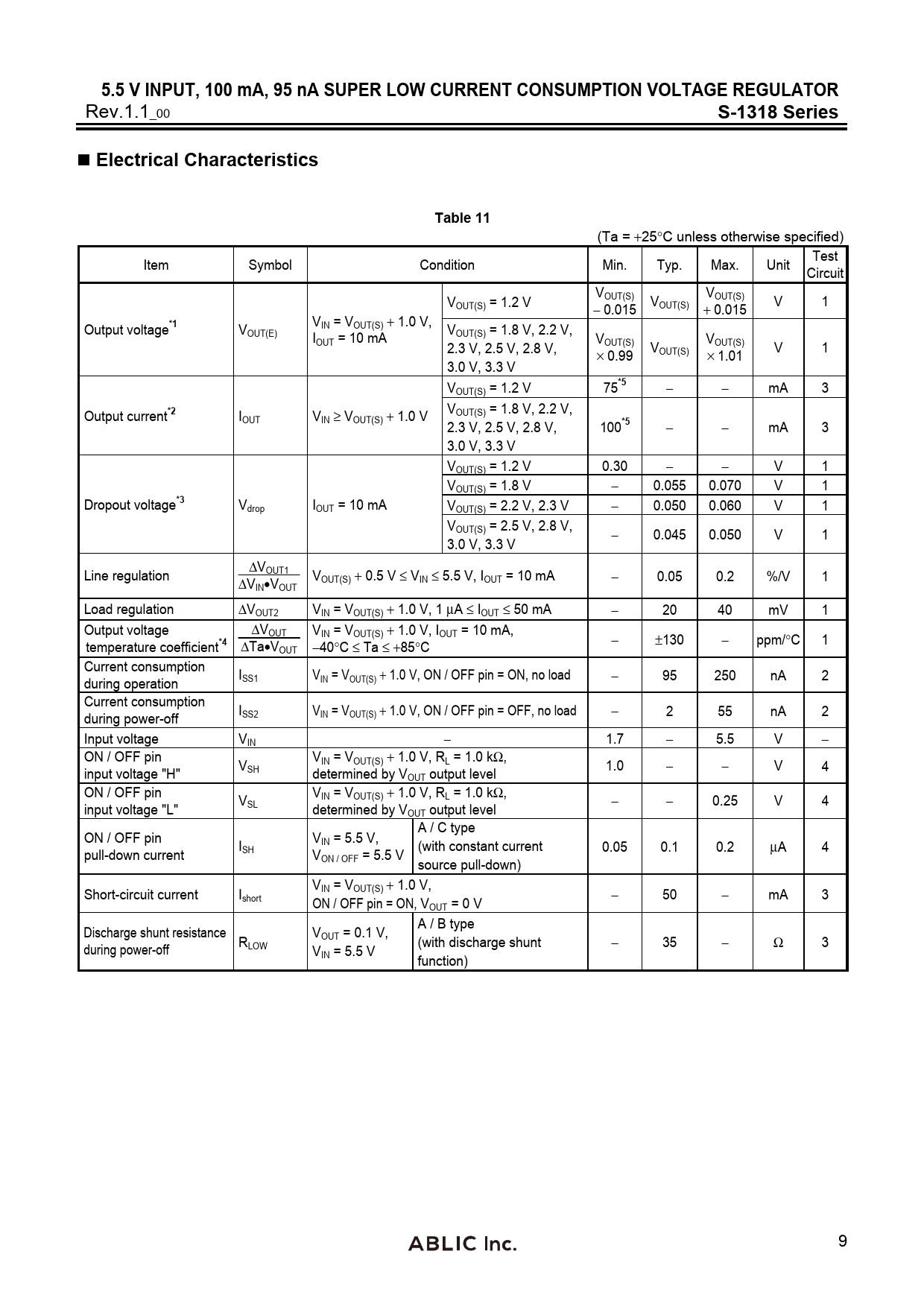

S-1318 Series Electrical Characteristics Table 11
(Ta = +25°C unless otherwise specified) Test Item Symbol Condition Min. Typ. Max. Unit Circuit V V V OUT(S) OUT(S) OUT(S) = 1.2 V V V 1 − 0.015 OUT(S) + 0.015 V Output voltage
*1
V IN = VOUT(S) + 1.0 V, OUT(E) V I OUT(S) = 1.8 V, 2.2 V, OUT = 10 mA V V 2.3 V, 2.5 V, 2.8 V, OUT(S) V OUT(S) V 1 × 0.99 OUT(S) × 1.01 3.0 V, 3.3 V VOUT(S) = 1.2 V 75
*5
− − mA 3 Output current
*2
I VOUT(S) = 1.8 V, 2.2 V, OUT VIN ≥ VOUT(S) + 1.0 V 2.3 V, 2.5 V, 2.8 V, 100
*5
− − mA 3 3.0 V, 3.3 V VOUT(S) = 1.2 V 0.30 − − V 1 VOUT(S) = 1.8 V − 0.055 0.070 V 1 Dropout voltage
*3
Vdrop IOUT = 10 mA VOUT(S) = 2.2 V, 2.3 V − 0.050 0.060 V 1 VOUT(S) = 2.5 V, 2.8 V, − 0.045 0.050 V 1 3.0 V, 3.3 V ΔV Line regulation OUT1 Δ V V OUT(S) + 0.5 V ≤ VIN ≤ 5.5 V, IOUT = 10 mA − 0.05 0.2 %/V 1 IN•VOUT Load regulation ΔVOUT2 VIN = VOUT(S) + 1.0 V, 1 μA ≤ IOUT ≤ 50 mA − 20 40 mV 1 Output voltage ΔVOUT V IN = VOUT(S) + 1.0 V, IOUT = 10 mA, temperature coefficient
*4
ΔTa•VOUT −40°C ≤ Ta ≤ +85°C − ±130 − ppm/°C 1 Current consumption I during operation SS1 VIN = VOUT(S) + 1.0 V, ON / OFF pin = ON, no load − 95 250 nA 2 Current consumption I during power-off SS2 VIN = VOUT(S) + 1.0 V, ON / OFF pin = OFF, no load − 2 55 nA 2 Input voltage VIN − 1.7 − 5.5 V − ON / OFF pin V V IN = VOUT(S) + 1.0 V, RL = 1.0 kΩ, 1.0 − − V input voltage "H" SH 4 determined by VOUT output level ON / OFF pin V V IN = VOUT(S) + 1.0 V, RL = 1.0 kΩ, − − 0.25 V 4 input voltage "L" SL determined by VOUT output level A / C type ON / OFF pin V I IN = 5.5 V, (with constant current pull-down current SH V 0.05 0.1 0.2 μA 4 ON / OFF = 5.5 V source pull-down) V Short-circuit current I IN = VOUT(S) + 1.0 V, short − 50 − mA 3 ON / OFF pin = ON, VOUT = 0 V A / B type Discharge shunt resistance VOUT = 0.1 V, during power-off RLOW (with discharge shunt − 35 − Ω 3 VIN = 5.5 V function) 9 Document Outline 空白ページ 空白ページ 空白ページ 空白ページ
