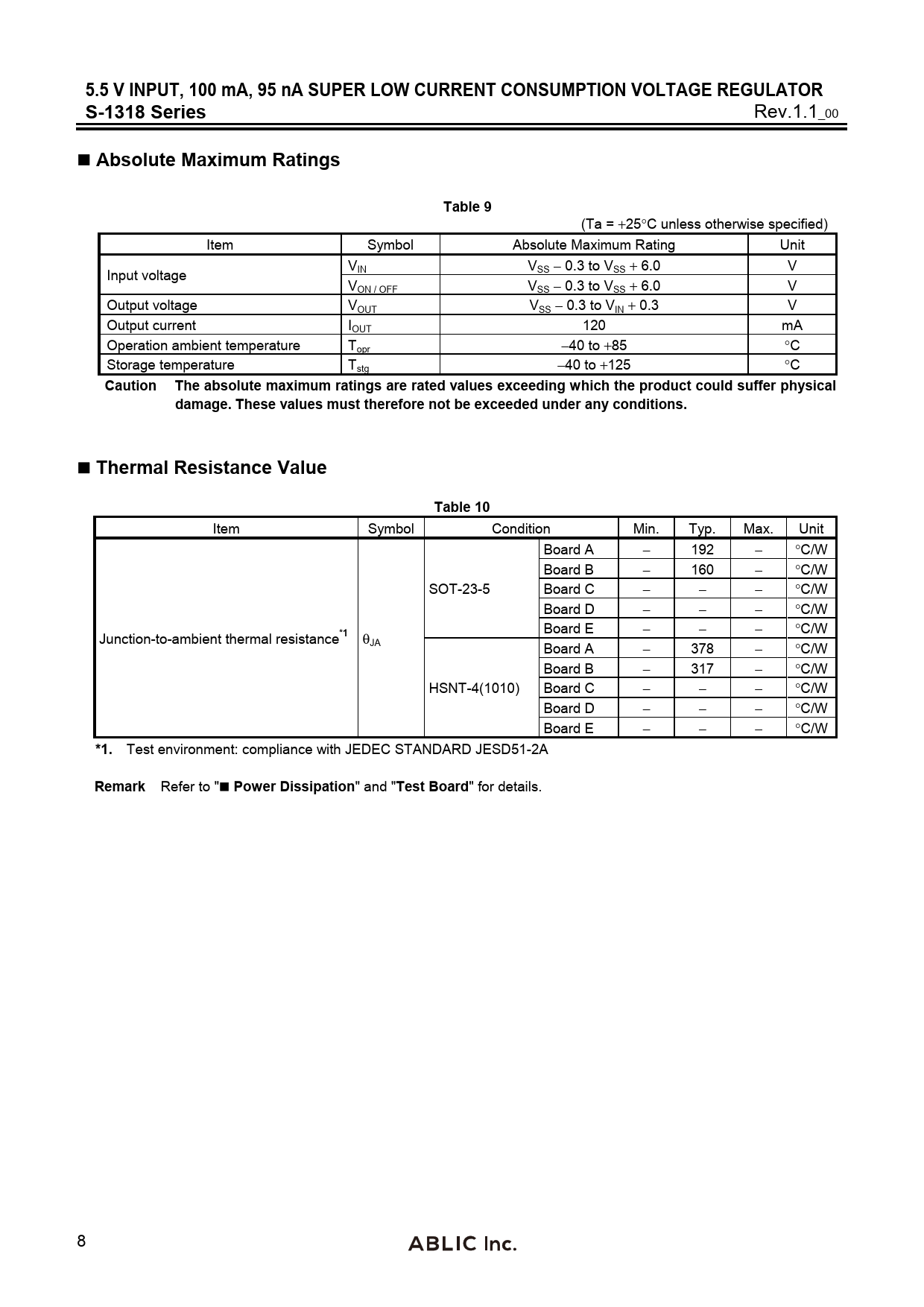

5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR S-1318 Series. Absolute Maximum Ratings. Table 9
Modelllinie für dieses Datenblatt
- S-1318A12-A4T2U4 S-1318A12-M5T1U4 S-1318A18-A4T2U4 S-1318A18-M5T1U4 S-1318A22-A4T2U4 S-1318A22-M5T1U4 S-1318A23-A4T2U4 S-1318A23-M5T1U4 S-1318A25-A4T2U4 S-1318A25-M5T1U4 S-1318A28-A4T2U4 S-1318A28-M5T1U4 S-1318A30-A4T2U4 S-1318A30-M5T1U4 S-1318A33-A4T2U4 S-1318A33-M5T1U4 S-1318B12-A4T2U4 S-1318B12-M5T1U4 S-1318B18-A4T2U4 S-1318B18-M5T1U4 S-1318B22-A4T2U4 S-1318B22-M5T1U4 S-1318B23-A4T2U4 S-1318B23-M5T1U4 S-1318B25-A4T2U4 S-1318B25-M5T1U4 S-1318B28-A4T2U4 S-1318B28-M5T1U4 S-1318B30-A4T2U4 S-1318B30-M5T1U4 S-1318B33-A4T2U4 S-1318B33-M5T1U4 S-1318C12-A4T2U4 S-1318C12-M5T1U4 S-1318C18-A4T2U4 S-1318C18-M5T1U4 S-1318C22-A4T2U4 S-1318C22-M5T1U4 S-1318C23-A4T2U4 S-1318C23-M5T1U4 S-1318C25-A4T2U4 S-1318C25-M5T1U4 S-1318C28-A4T2U4 S-1318C28-M5T1U4 S-1318C30-A4T2U4 S-1318C30-M5T1U4 S-1318C33-A4T2U4 S-1318C33-M5T1U4 S-1318D12-A4T2U4 S-1318D12-M5T1U4 S-1318D18-A4T2U4 S-1318D18-M5T1U4 S-1318D22-A4T2U4 S-1318D22-M5T1U4 S-1318D23-A4T2U4 S-1318D23-M5T1U4 S-1318D25-A4T2U4 S-1318D25-M5T1U4 S-1318D28-A4T2U4 S-1318D28-M5T1U4 S-1318D30-A4T2U4 S-1318D30-M5T1U4 S-1318D33-A4T2U4 S-1318D33-M5T1U4
Textversion des Dokuments
5.5 V INPUT, 100 mA, 95 nA SUPER LOW CURRENT CONSUMPTION VOLTAGE REGULATOR S-1318 Series
Rev.1.1_00
Absolute Maximum Ratings Table 9
(Ta = +25°C unless otherwise specified) Item Symbol Absolute Maximum Rating Unit V Input voltage IN VSS − 0.3 to VSS + 6.0 V VON / OFF VSS − 0.3 to VSS + 6.0 V Output voltage VOUT VSS − 0.3 to VIN + 0.3 V Output current IOUT 120 mA Operation ambient temperature Topr −40 to +85 °C Storage temperature Tstg −40 to +125 °C
Caution The absolute maximum ratings are rated values exceeding which the product could suffer physical damage. These values must therefore not be exceeded under any conditions. Thermal Resistance Value Table 10
Item Symbol Condition Min. Typ. Max. Unit Board A − 192 − °C/W Board B − 160 − °C/W SOT-23-5 Board C − − − °C/W Board D − − − °C/W Board E − − − °C/W Junction-to-ambient thermal resistance
*1
θJA Board A − 378 − °C/W Board B − 317 − °C/W HSNT-4(1010) Board C − − − °C/W Board D − − − °C/W Board E − − − °C/W
*1.
Test environment: compliance with JEDEC STANDARD JESD51-2A
Remark
Refer to "
Power Dissipation
" and "
Test Board
