Datasheet ADL5570 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | 2.3 GHz TO 2.4 GHz WiMAX Power Amplifier |
| Seiten / Seite | 12 / 7 — ADL5570. –20. –30. –40. –50. –60. –70. (dB. –80. –90. MKR X (GHz). Y … |
| Dateiformat / Größe | PDF / 356 Kb |
| Dokumentensprache | Englisch |
ADL5570. –20. –30. –40. –50. –60. –70. (dB. –80. –90. MKR X (GHz). Y (dBm). 2.350 540. –31.721. 2.355 450. –67.321. –100. 2.360 900. –72.822. 2.365 120
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADL5570 –20 1 –30 –40 –50 –60 2 ) 3 –70 (dB 4 –80 5 –90 MKR X (GHz) Y (dBm) 1 2.350 540 –31.721 2 2.355 450 –67.321 –100 3 2.360 900 –72.822 4 2.365 120 –79.339 –110 5 2.370 260 –87.368 –120
15 0
CENTER 2.35GHz VBW 100kHz SPAN 45MHz
9- 72
BW 100kHz 5s (1001 PTS)

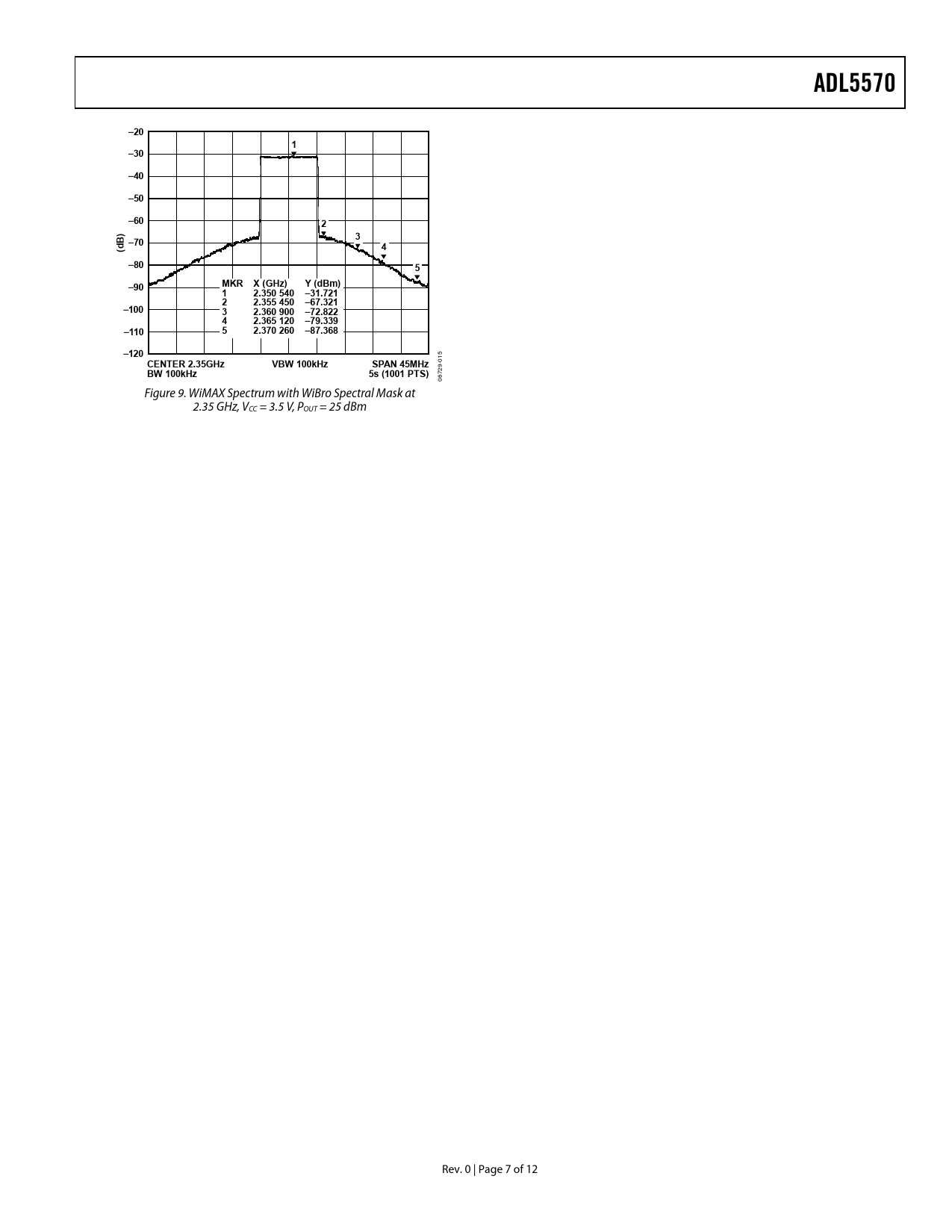

06 Figure 9. WiMAX Spectrum with WiBro Spectral Mask at 2.35 GHz, VCC = 3.5 V, POUT = 25 dBm Rev. 0 | Page 7 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS VCC = 3.5 V ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS BASIC CONNECTIONS Power Supply RF Input Interface RF Output Interface Transmit/Standby Enable VREG Enable MODE High Power/Low Power Enable 64 QAM OFDMA PERFORMANCE POWER-ADDED EFFICIENCY EVALUATION BOARD MEASUREMENT SETUP USING THE ADL5570 EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
