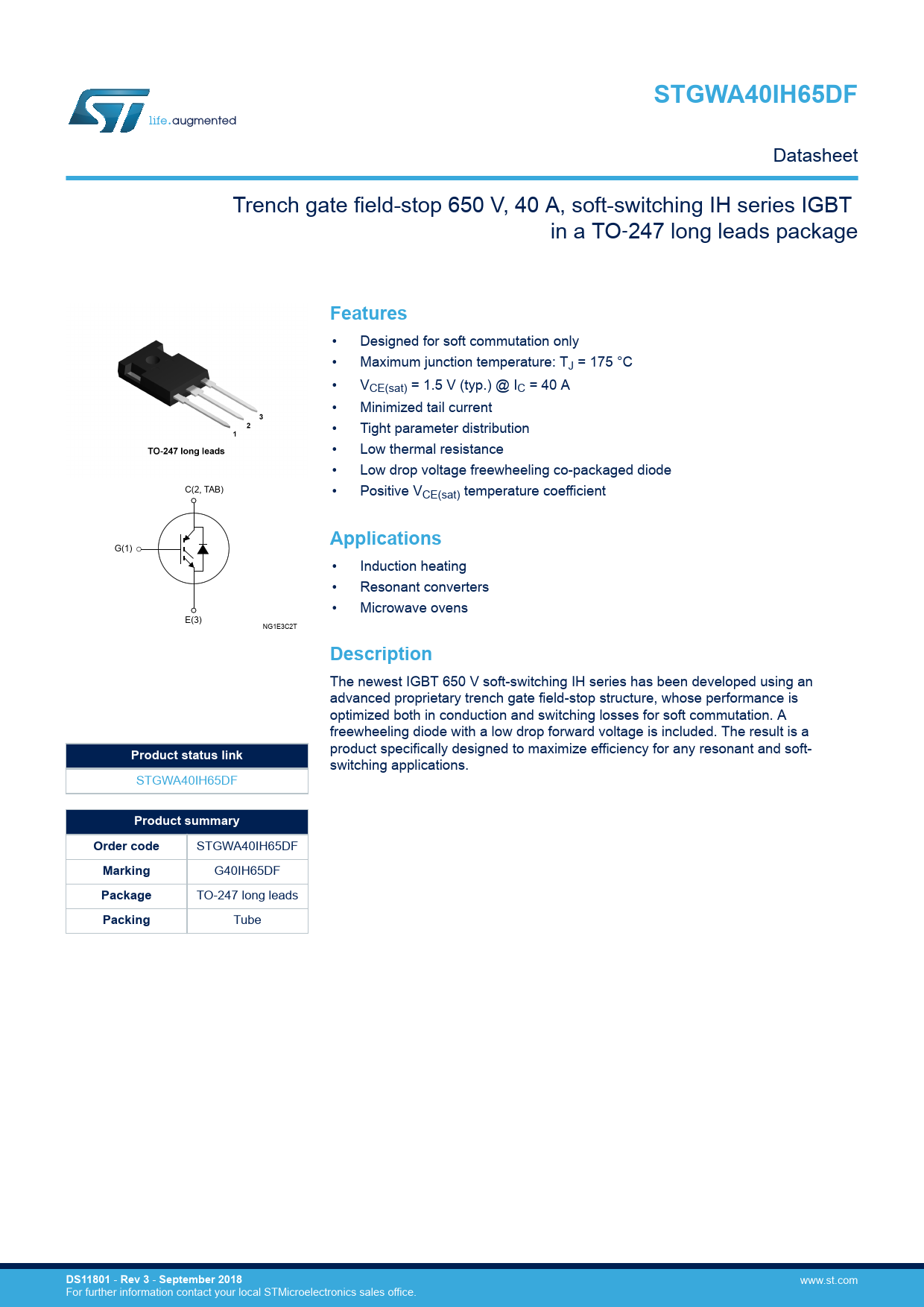

Datasheet STGWA40IH65DF (STMicroelectronics)

STGWA40IH65DF
Datasheet Trench gate field-stop 650 V, 40 A, soft-switching IH series IGBT in a TO‑247 long leads package
Features
• Designed for soft commutation only • Maximum junction temperature: TJ = 175 °C • VCE(sat) = 1.5 V (typ.) @ IC = 40 A • Minimized tail current • Tight parameter distribution • Low thermal resistance • Low drop voltage freewheeling co-packaged diode C(2, TAB) • Positive VCE(sat) temperature coefficient
Applications
G(1) • Induction heating • Resonant converters • Microwave ovens E(3) NG1E3C2T
Description
The newest IGBT 650 V soft-switching IH series has been developed using an advanced proprietary trench gate field-stop structure, whose performance is optimized both in conduction and switching losses for soft commutation. A freewheeling diode with a low drop forward voltage is included. The result is a product specifically designed to maximize efficiency for any resonant and soft-
Product status link
switching applications. STGWA40IH65DF
Product summary Order code
STGWA40IH65DF
Marking
G40IH65DF
Package
TO-247 long leads
Packing
Tube
DS11801
-
Rev 3
-
September 2018
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline 1 Electrical ratings 2 Electrical characteristics 2.1 Electrical characteristics (curves) 3 Test circuits 4 Package information 4.1 TO-247 long leads package information Revision history
