Datasheet STGWA40IH65DF (STMicroelectronics) - 4
| Hersteller | STMicroelectronics |
| Beschreibung | Trench gate field-stop 650 V, 40 A, soft-switching IH series IGBT in a TO-247 long leads package |
| Seiten / Seite | 15 / 4 — STGWA40IH65DF. Electrical characteristics. Table 5. IGBT switching … |
| Revision | 3 |
| Dateiformat / Größe | PDF / 351 Kb |
| Dokumentensprache | Englisch |
STGWA40IH65DF. Electrical characteristics. Table 5. IGBT switching characteristics (inductive load). Symbol. Parameter
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 9 link to page 9 link to page 9 link to page 9 link to page 4 link to page 9 link to page 9 link to page 9 link to page 9

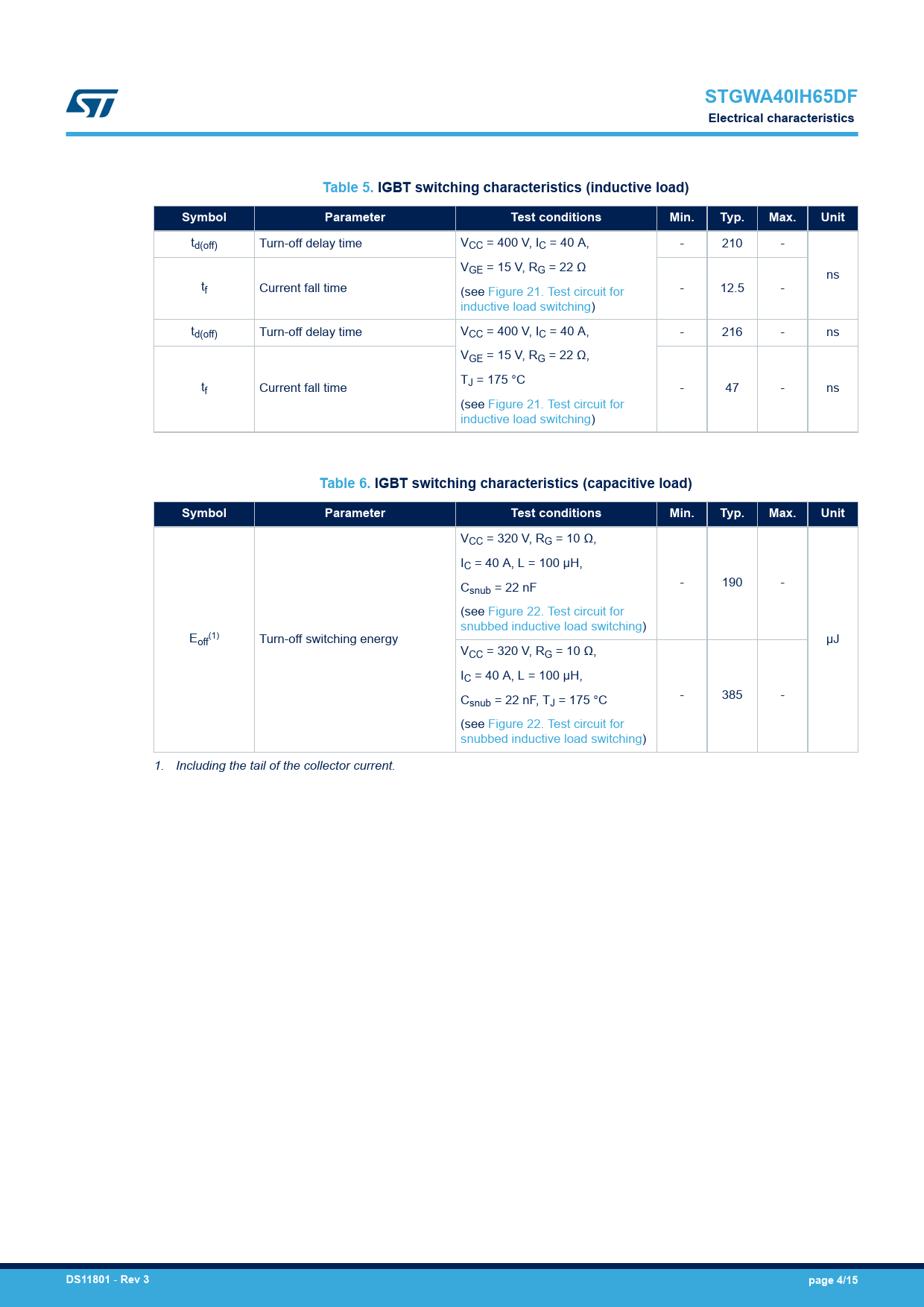

STGWA40IH65DF Electrical characteristics Table 5. IGBT switching characteristics (inductive load) Symbol Parameter Test conditions Min. Typ. Max. Unit
td(off) Turn-off delay time VCC = 400 V, IC = 40 A, - 210 - VGE = 15 V, RG = 22 Ω ns tf Current fall time (see Figure 21. Test circuit for - 12.5 - inductive load switching) td(off) Turn-off delay time VCC = 400 V, IC = 40 A, - 216 - ns VGE = 15 V, RG = 22 Ω, TJ = 175 °C tf Current fall time - 47 - ns (see Figure 21. Test circuit for inductive load switching)
Table 6. IGBT switching characteristics (capacitive load) Symbol Parameter Test conditions Min. Typ. Max. Unit
VCC = 320 V, RG = 10 Ω, IC = 40 A, L = 100 μH, C - 190 - snub = 22 nF (see Figure 22. Test circuit for snubbed inductive load switching) E (1) off Turn-off switching energy μJ VCC = 320 V, RG = 10 Ω, IC = 40 A, L = 100 μH, C - 385 - snub = 22 nF, TJ = 175 °C (see Figure 22. Test circuit for snubbed inductive load switching) 1. Including the tail of the collector current.
DS11801
-
Rev 3 page 4/15
