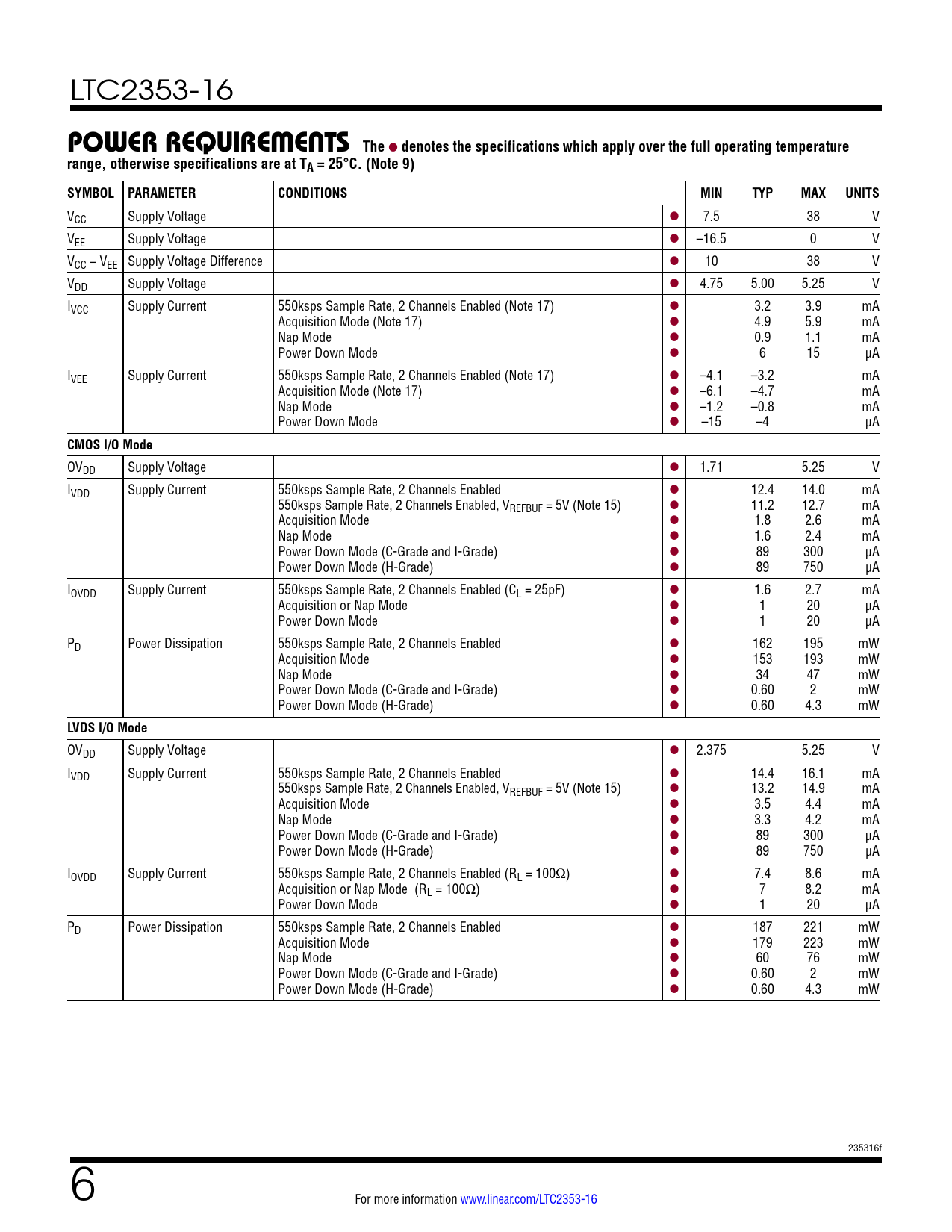

POWER REQUIREMENTS. The. denotes the specifications which apply over the full operating temperature
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC2353-16
POWER REQUIREMENTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Supply Voltage l 7.5 38 V VEE Supply Voltage l –16.5 0 V VCC − VEE Supply Voltage Difference l 10 38 V VDD Supply Voltage l 4.75 5.00 5.25 V IVCC Supply Current 550ksps Sample Rate, 2 Channels Enabled (Note 17) l 3.2 3.9 mA Acquisition Mode (Note 17) l 4.9 5.9 mA Nap Mode l 0.9 1.1 mA Power Down Mode l 6 15 μA IVEE Supply Current 550ksps Sample Rate, 2 Channels Enabled (Note 17) l –4.1 –3.2 mA Acquisition Mode (Note 17) l –6.1 –4.7 mA Nap Mode l –1.2 –0.8 mA Power Down Mode l –15 –4 μA
CMOS I/O Mode
OVDD Supply Voltage l 1.71 5.25 V IVDD Supply Current 550ksps Sample Rate, 2 Channels Enabled l 12.4 14.0 mA 550ksps Sample Rate, 2 Channels Enabled, VREFBUF = 5V (Note 15) l 11.2 12.7 mA Acquisition Mode l 1.8 2.6 mA Nap Mode l 1.6 2.4 mA Power Down Mode (C-Grade and I-Grade) l 89 300 μA Power Down Mode (H-Grade) l 89 750 µA IOVDD Supply Current 550ksps Sample Rate, 2 Channels Enabled (CL = 25pF) l 1.6 2.7 mA Acquisition or Nap Mode l 1 20 μA Power Down Mode l 1 20 μA PD Power Dissipation 550ksps Sample Rate, 2 Channels Enabled l 162 195 mW Acquisition Mode l 153 193 mW Nap Mode l 34 47 mW Power Down Mode (C-Grade and I-Grade) l 0.60 2 mW Power Down Mode (H-Grade) l 0.60 4.3 mW
LVDS I/O Mode
OVDD Supply Voltage l 2.375 5.25 V IVDD Supply Current 550ksps Sample Rate, 2 Channels Enabled l 14.4 16.1 mA 550ksps Sample Rate, 2 Channels Enabled, VREFBUF = 5V (Note 15) l 13.2 14.9 mA Acquisition Mode l 3.5 4.4 mA Nap Mode l 3.3 4.2 mA Power Down Mode (C-Grade and I-Grade) l 89 300 μA Power Down Mode (H-Grade) l 89 750 µA IOVDD Supply Current 550ksps Sample Rate, 2 Channels Enabled (RL = 100Ω) l 7.4 8.6 mA Acquisition or Nap Mode (RL = 100Ω) l 7 8.2 mA Power Down Mode l 1 20 μA PD Power Dissipation 550ksps Sample Rate, 2 Channels Enabled l 187 221 mW Acquisition Mode l 179 223 mW Nap Mode l 60 76 mW Power Down Mode (C-Grade and I-Grade) l 0.60 2 mW Power Down Mode (H-Grade) l 0.60 4.3 mW 235316f 6 For more information www.linear.com/LTC2353-16 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS CONVERTER CHARACTERISTICS DYNAMIC ACCURACY INTERNAL REFERENCE CHARACTERISTICS REFERENCE BUFFER CHARACTERISTICS DIGITAL INPUTS AND DIGITAL OUTPUTS POWER REQUIREMENTS ADC TIMING CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS CONFIGURATION TABLES FUNCTIONAL BLOCK DIAGRAM TIMING DIAGRAM APPLICATIONS INFORMATION BOARD LAYOUT PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
