Datasheet LT1784 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 2.5MHz, Over-The-Top Low Power, Rail-to-Rail Input and Output Op Amp in SOT-23 |
| Seiten / Seite | 12 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply … |
| Dateiformat / Größe | PDF / 204 Kb |
| Dokumentensprache | Englisch |

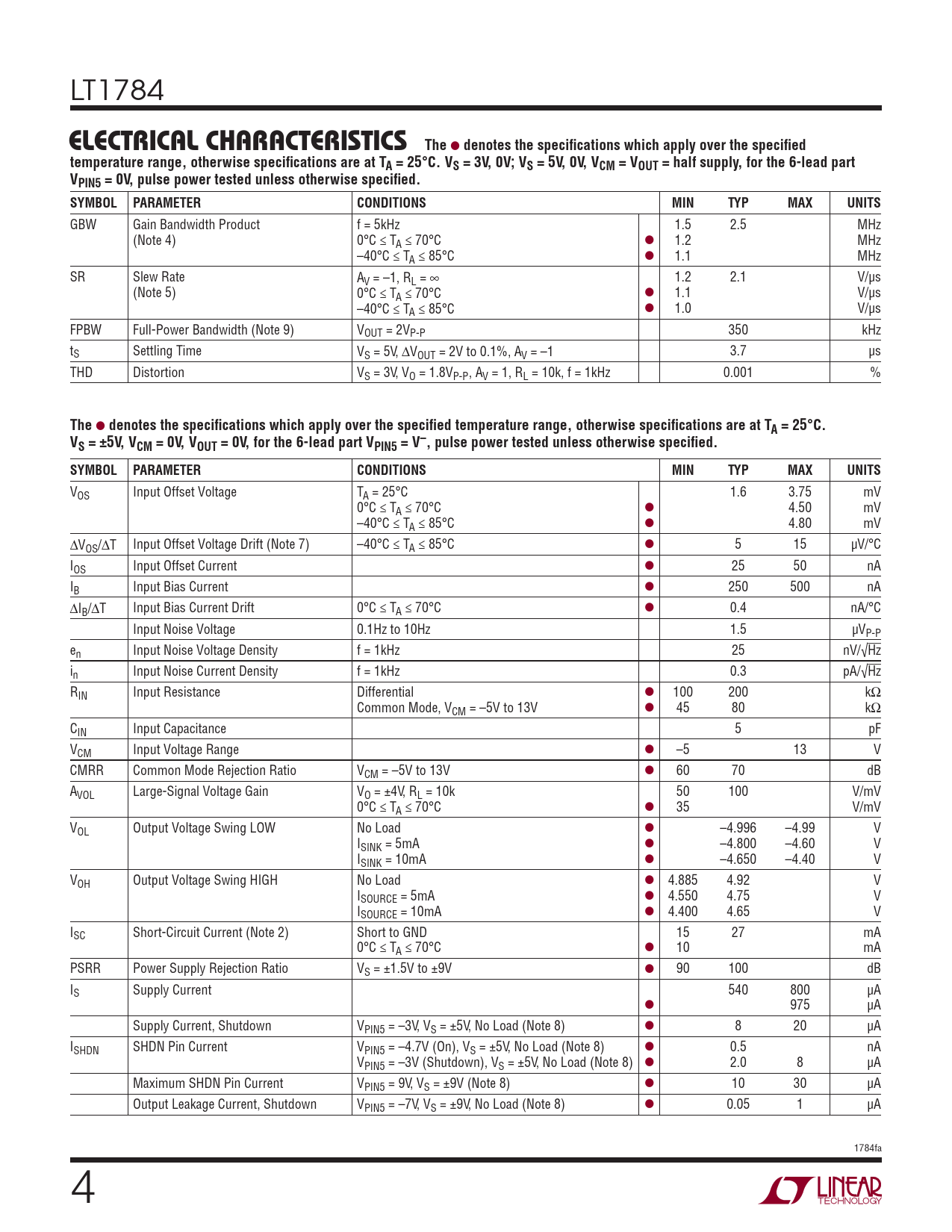

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the specifi ed
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1784
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the specifi ed temperature range, otherwise specifi cations are at TA = 25°C. VS = 3V, 0V; VS = 5V, 0V, VCM = VOUT = half supply, for the 6-lead part VPIN5 = 0V, pulse power tested unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
GBW Gain Bandwidth Product f = 5kHz 1.5 2.5 MHz (Note 4) 0°C ≤ TA ≤ 70°C l 1.2 MHz –40°C ≤ TA ≤ 85°C l 1.1 MHz SR Slew Rate AV = –1, RL = ∞ 1.2 2.1 V/μs (Note 5) 0°C ≤ T l A ≤ 70°C 1.1 V/μs –40°C ≤ T l A ≤ 85°C 1.0 V/μs FPBW Full-Power Bandwidth (Note 9) VOUT = 2VP-P 350 kHz tS Settling Time VS = 5V, ΔVOUT = 2V to 0.1%, AV = –1 3.7 μs THD Distortion VS = 3V, VO = 1.8VP-P , AV = 1, RL = 10k, f = 1kHz 0.001 %
