| Beschreibung | Quad 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV√Hz Noise, Low Power Op Amps |
| Seiten / Seite | 28 / 10 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 1.7 Mb |
| Dokumentensprache | Englisch |

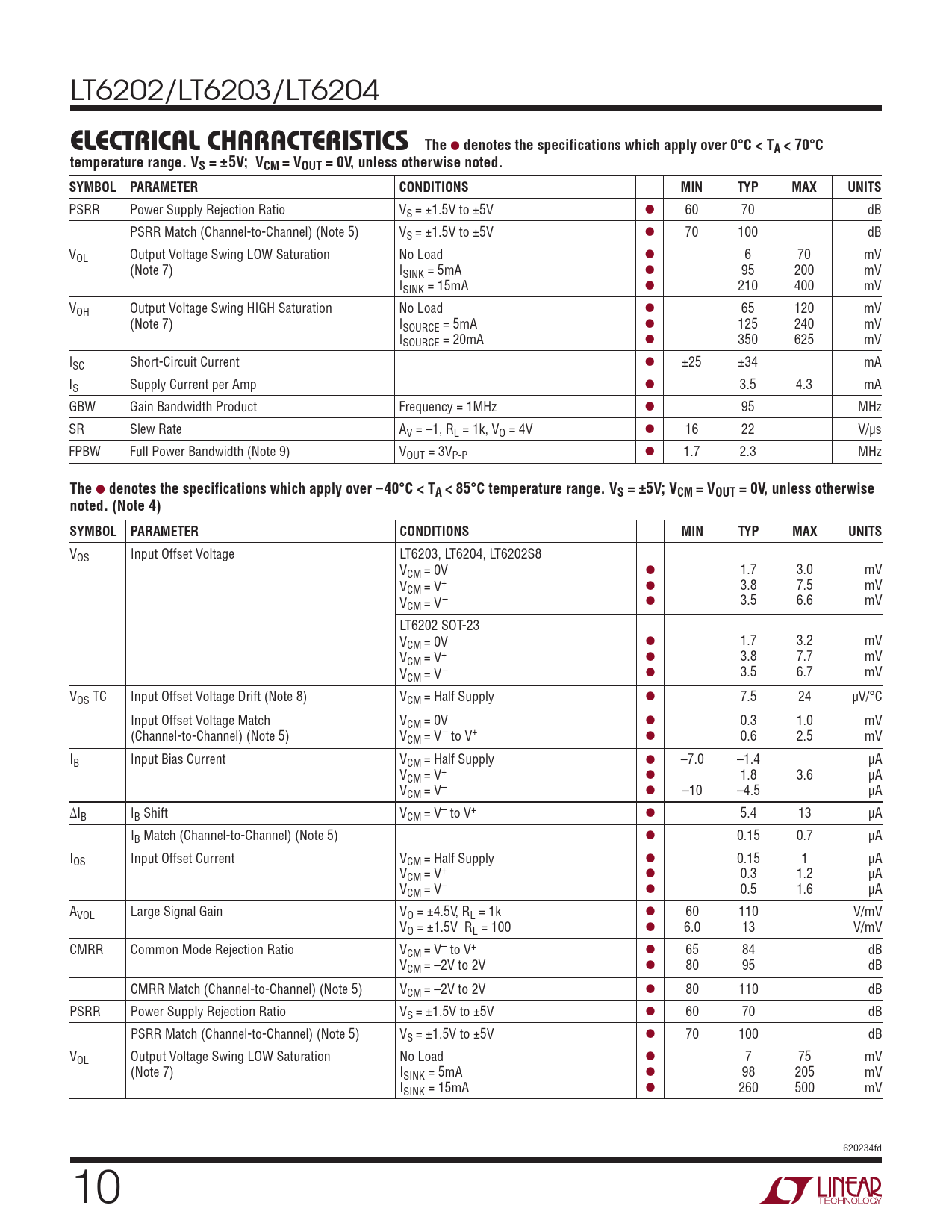

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over 0°C < TA < 70°C
Modelllinie für dieses Datenblatt
- LT6202CS5#PBF LT6202CS5#TRMPBF LT6202CS5#TRPBF LT6202CS8#PBF LT6202CS8#TRPBF LT6202HS5#PBF LT6202HS5#TRMPBF LT6202HS5#TRPBF LT6202IS5#PBF LT6202IS5#TRMPBF LT6202IS5#TRPBF LT6202IS8#PBF LT6202IS8#TRPBF
Textversion des Dokuments
LT6202/LT6203/LT6204
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over 0°C < TA < 70°C temperature range. VS = ±5V; VCM = VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 60 70 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±1.5V to ±5V l 70 100 dB VOL Output Voltage Swing LOW Saturation No Load l 6 70 mV (Note 7) ISINK = 5mA l 95 200 mV ISINK = 15mA l 210 400 mV VOH Output Voltage Swing HIGH Saturation No Load l 65 120 mV (Note 7) ISOURCE = 5mA l 125 240 mV ISOURCE = 20mA l 350 625 mV ISC Short-Circuit Current l ±25 ±34 mA IS Supply Current per Amp l 3.5 4.3 mA GBW Gain Bandwidth Product Frequency = 1MHz l 95 MHz SR Slew Rate AV = –1, RL = 1k, VO = 4V l 16 22 V/µs FPBW Full Power Bandwidth (Note 9) VOUT = 3VP-P l 1.7 2.3 MHz
The
l
denotes the specifications which apply over –40°C < TA < 85°C temperature range. VS = ±5V; VCM = VOUT = 0V, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6203, LT6204, LT6202S8 VCM = 0V l 1.7 3.0 mV VCM = V+ l 3.8 7.5 mV VCM = V– l 3.5 6.6 mV LT6202 SOT-23 VCM = 0V l 1.7 3.2 mV VCM = V+ l 3.8 7.7 mV VCM = V– l 3.5 6.7 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 7.5 24 µV/°C Input Offset Voltage Match VCM = 0V l 0.3 1.0 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ l 0.6 2.5 mV IB Input Bias Current VCM = Half Supply l –7.0 –1.4 µA VCM = V+ l 1.8 3.6 µA VCM = V– l –10 –4.5 µA ∆IB IB Shift VCM = V– to V+ l 5.4 13 µA IB Match (Channel-to-Channel) (Note 5) l 0.15 0.7 µA IOS Input Offset Current VCM = Half Supply l 0.15 1 µA VCM = V+ l 0.3 1.2 µA VCM = V– l 0.5 1.6 µA AVOL Large Signal Gain VO = ±4.5V, RL = 1k l 60 110 V/mV VO = ±1.5V RL = 100 l 6.0 13 V/mV CMRR Common Mode Rejection Ratio VCM = V – to V+ l 65 84 dB VCM = –2V to 2V l 80 95 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = –2V to 2V l 80 110 dB PSRR Power Supply Rejection Ratio VS = ±1.5V to ±5V l 60 70 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±1.5V to ±5V l 70 100 dB VOL Output Voltage Swing LOW Saturation No Load l 7 75 mV (Note 7) ISINK = 5mA l 98 205 mV ISINK = 15mA l 260 500 mV 620234fd 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
