Datasheet LT6202, LT6203, LT6204 (Analog Devices) - 8
| Hersteller | Analog Devices |
| Beschreibung | Quad 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV√Hz Noise, Low Power Op Amps |
| Seiten / Seite | 28 / 8 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 1.7 Mb |
| Dokumentensprache | Englisch |
ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over –40°C < TA < 125°C
Modelllinie für dieses Datenblatt
- LT6202CS5#PBF LT6202CS5#TRMPBF LT6202CS5#TRPBF LT6202CS8#PBF LT6202CS8#TRPBF LT6202HS5#PBF LT6202HS5#TRMPBF LT6202HS5#TRPBF LT6202IS5#PBF LT6202IS5#TRMPBF LT6202IS5#TRPBF LT6202IS8#PBF LT6202IS8#TRPBF
Textversion des Dokuments

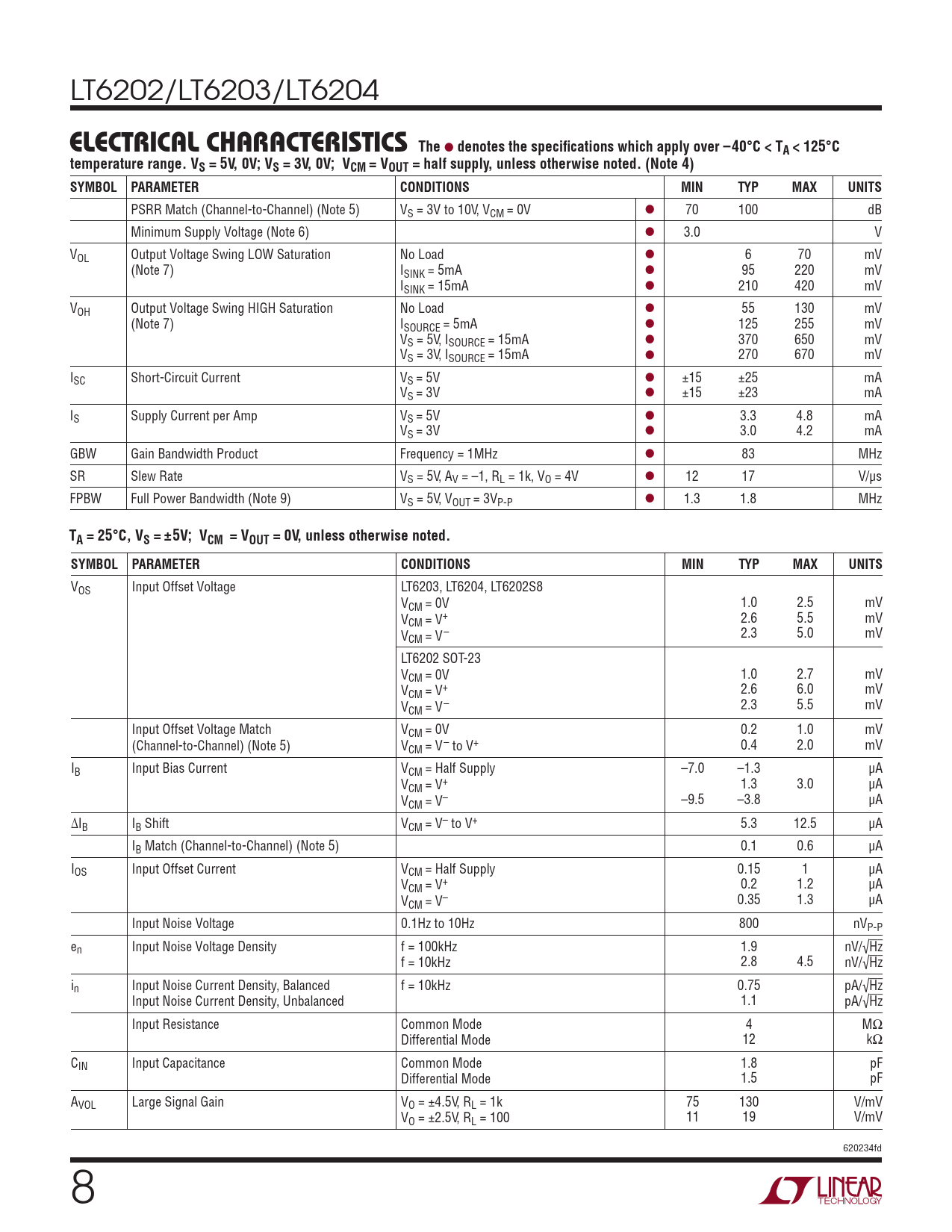

LT6202/LT6203/LT6204
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over –40°C < TA < 125°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 10V, VCM = 0V l 70 100 dB Minimum Supply Voltage (Note 6) l 3.0 V VOL Output Voltage Swing LOW Saturation No Load l 6 70 mV (Note 7) ISINK = 5mA l 95 220 mV ISINK = 15mA l 210 420 mV VOH Output Voltage Swing HIGH Saturation No Load l 55 130 mV (Note 7) ISOURCE = 5mA l 125 255 mV VS = 5V, ISOURCE = 15mA l 370 650 mV VS = 3V, ISOURCE = 15mA l 270 670 mV ISC Short-Circuit Current VS = 5V l ±15 ±25 mA VS = 3V l ±15 ±23 mA IS Supply Current per Amp VS = 5V l 3.3 4.8 mA VS = 3V l 3.0 4.2 mA GBW Gain Bandwidth Product Frequency = 1MHz l 83 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V l 12 17 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P l 1.3 1.8 MHz
TA = 25°C, VS = ±5V; VCM = VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage LT6203, LT6204, LT6202S8 VCM = 0V 1.0 2.5 mV VCM = V+ 2.6 5.5 mV VCM = V– 2.3 5.0 mV LT6202 SOT-23 VCM = 0V 1.0 2.7 mV VCM = V+ 2.6 6.0 mV VCM = V– 2.3 5.5 mV Input Offset Voltage Match VCM = 0V 0.2 1.0 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ 0.4 2.0 mV IB Input Bias Current VCM = Half Supply –7.0 –1.3 µA VCM = V+ 1.3 3.0 µA VCM = V– –9.5 –3.8 µA ∆IB IB Shift VCM = V– to V+ 5.3 12.5 µA IB Match (Channel-to-Channel) (Note 5) 0.1 0.6 µA IOS Input Offset Current VCM = Half Supply 0.15 1 µA VCM = V+ 0.2 1.2 µA VCM = V– 0.35 1.3 µA Input Noise Voltage 0.1Hz to 10Hz 800 nVP-P en Input Noise Voltage Density f = 100kHz 1.9 nV/√Hz f = 10kHz 2.8 4.5 nV/√Hz in Input Noise Current Density, Balanced f = 10kHz 0.75 pA/√Hz Input Noise Current Density, Unbalanced 1.1 pA/√Hz Input Resistance Common Mode 4 MΩ Differential Mode 12 kΩ CIN Input Capacitance Common Mode 1.8 pF Differential Mode 1.5 pF AVOL Large Signal Gain VO = ±4.5V, RL = 1k 75 130 V/mV VO = ±2.5V, RL = 100 11 19 V/mV 620234fd 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
