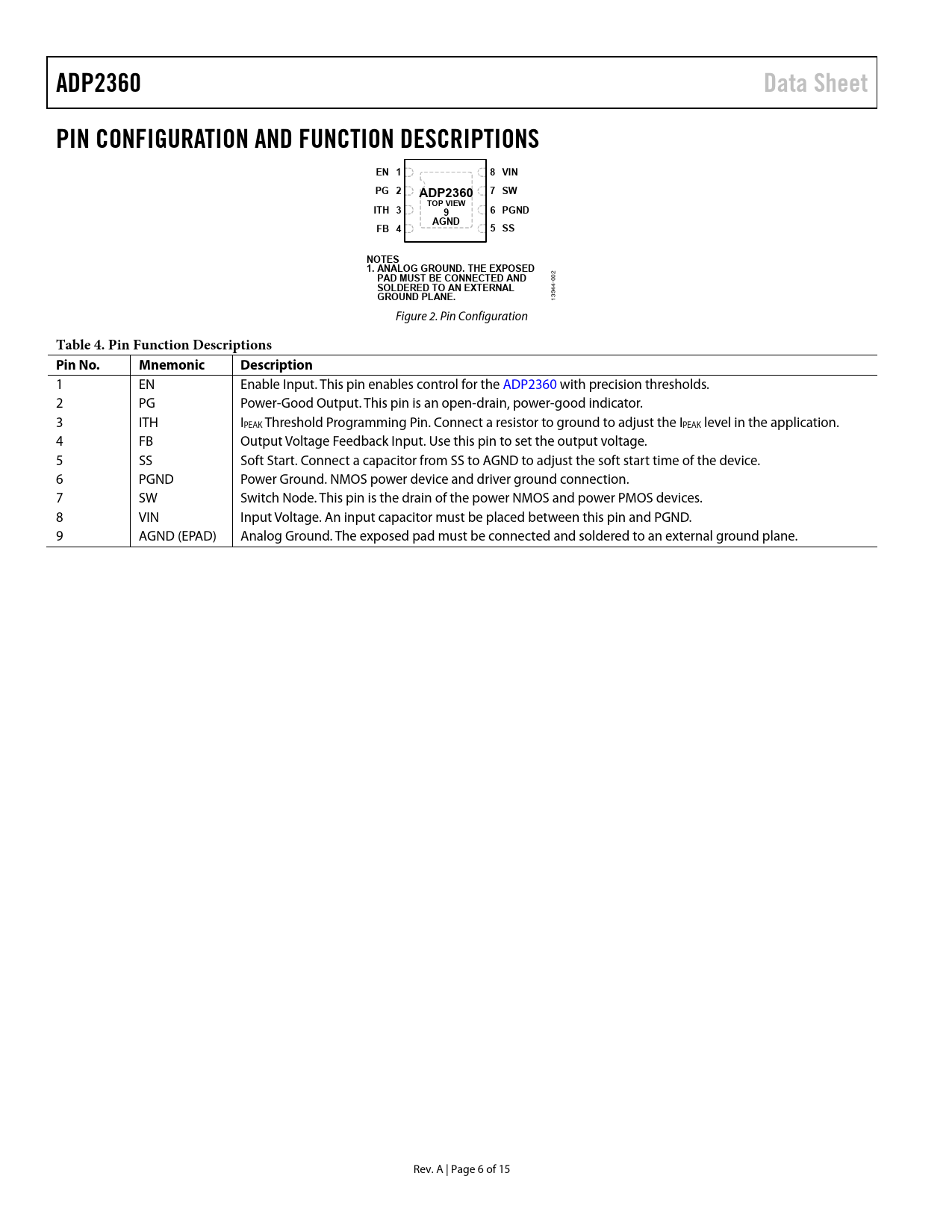

ADP2360 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EN 1 8 VIN PG 2 7 SW ADP2360 TOP VIEW ITH 3 6 PGND 9 AGND FB 4 5 SS NOTES 1. ANALOG GROUND. THE EXPOSED PAD MUST BE CONNECTED AND
002
SOLDERED TO AN EXTERNAL GROUND PLANE.
3944- 1 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 EN Enable Input. This pin enables control for the ADP2360 with precision thresholds. 2 PG Power-Good Output. This pin is an open-drain, power-good indicator. 3 ITH IPEAK Threshold Programming Pin. Connect a resistor to ground to adjust the IPEAK level in the application. 4 FB Output Voltage Feedback Input. Use this pin to set the output voltage. 5 SS Soft Start. Connect a capacitor from SS to AGND to adjust the soft start time of the device. 6 PGND Power Ground. NMOS power device and driver ground connection. 7 SW Switch Node. This pin is the drain of the power NMOS and power PMOS devices. 8 VIN Input Voltage. An input capacitor must be placed between this pin and PGND. 9 AGND (EPAD) Analog Ground. The exposed pad must be connected and soldered to an external ground plane. Rev. A | Page 6 of 15 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OVERVIEW CONTROL SCHEME 100% Duty Cycle Adjustable Peak Current Threshold (ITH) DEVICE FEATURES Fixed and Adjustable Output Models Shutdown/Precision Enable Soft Start Thermal Shutdown (TSD) Undervoltage Lockout (UVLO) Power Good APPLICATIONS INFORMATION SETTING THE OUTPUT VOLTAGE INPUT CAPACITOR SELECTION ESTIMATING THE SWITCHING FREQUENCY SETTING THE PEAK INDUCTOR CURRENT INDUCTOR SELECTION OUTPUT CAPACITOR SELECTION DESIGN OPTIMIZATION RECOMMENDED COMPONENTS PCB LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
