Datasheet LT1793 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | Low Noise, Picoampere Bias Current, JFET Input Op Amp |
| Seiten / Seite | 12 / 10 — PACKAGE DESCRIPTIO. Dimensions in inches (millimeters) unless otherwise … |
| Dateiformat / Größe | PDF / 176 Kb |
| Dokumentensprache | Englisch |

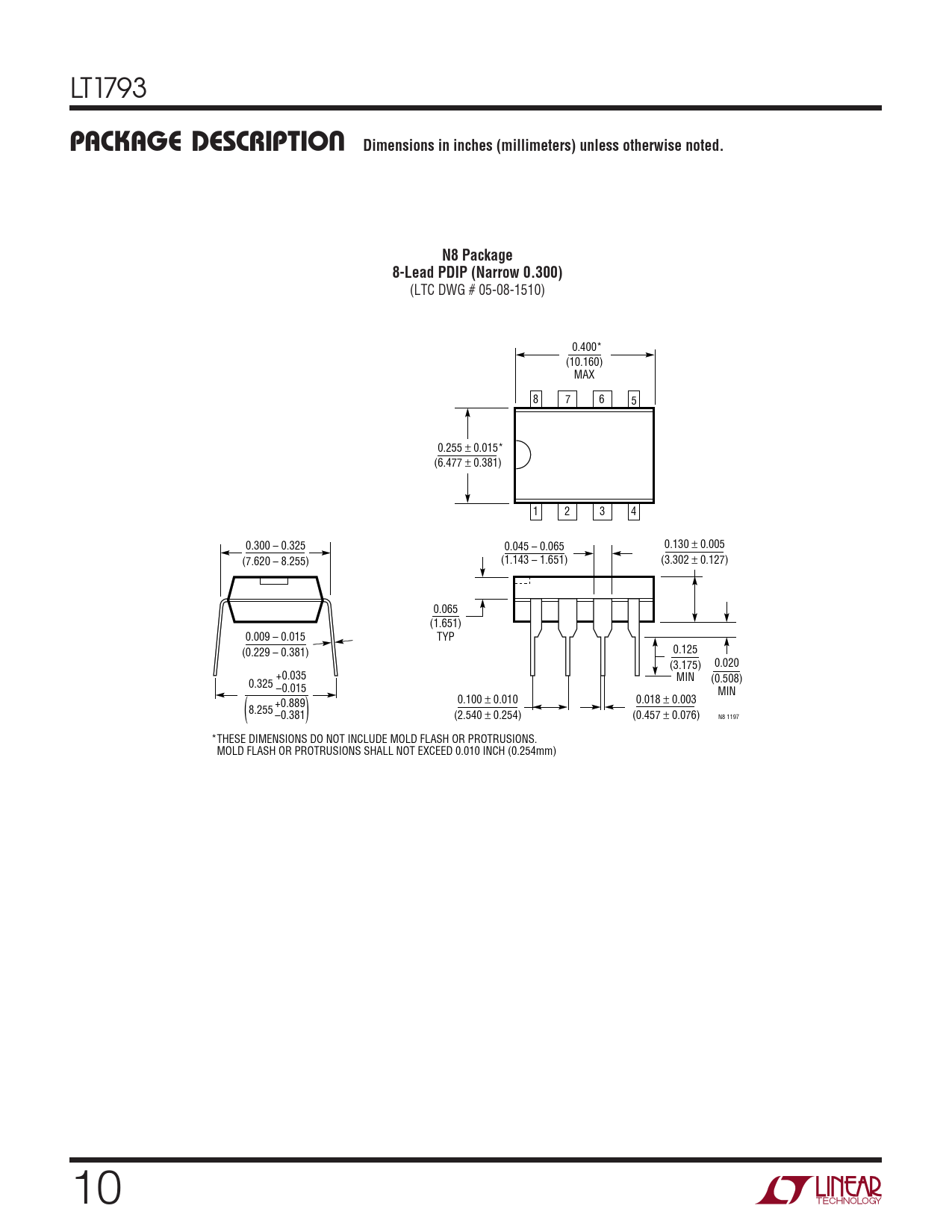

PACKAGE DESCRIPTIO. Dimensions in inches (millimeters) unless otherwise noted. N8 Package. 8-Lead PDIP (Narrow 0.300)
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1793
U PACKAGE DESCRIPTIO Dimensions in inches (millimeters) unless otherwise noted. N8 Package 8-Lead PDIP (Narrow 0.300)
(LTC DWG # 05-08-1510) 0.400* (10.160) MAX 8 7 6 5 0.255 ± 0.015* (6.477 ± 0.381) 1 2 3 4 0.300 – 0.325 0.045 – 0.065 0.130 ± 0.005 (7.620 – 8.255) (1.143 – 1.651) (3.302 ± 0.127) 0.065 (1.651) 0.009 – 0.015 TYP 0.125 (0.229 – 0.381) (3.175) 0.020 +0.035 MIN (0.508) 0.325 –0.015 MIN 0.100 ± 0.010 0.018 ± 0.003 +0.889 8.255 ( ) –0.381 (2.540 ± 0.254) (0.457 ± 0.076) N8 1197 *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.010 INCH (0.254mm) 10
