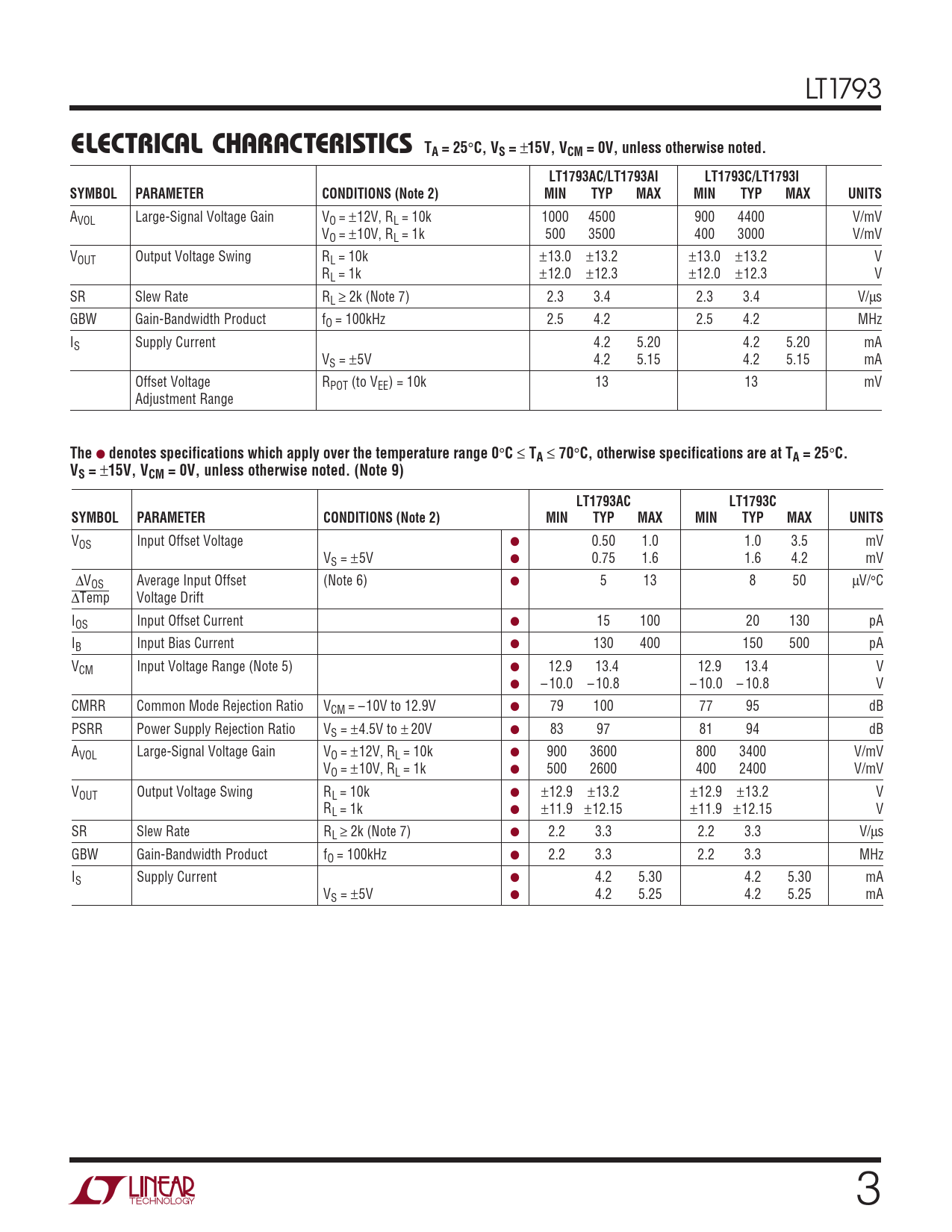

Datasheet LT1793 (Analog Devices) - 3

LT1793
ELECTRICAL CH C ARA TERISTICS TA = 25
°
C, VS =
±
15V, VCM = 0V, unless otherwise noted. LT1793AC/LT1793AI LT1793C/LT1793I SYMBOL PARAMETER CONDITIONS (Note 2) MIN TYP MAX MIN TYP MAX UNITS
AVOL Large-Signal Voltage Gain VO = ±12V, RL = 10k 1000 4500 900 4400 V/mV VO = ±10V, RL = 1k 500 3500 400 3000 V/mV VOUT Output Voltage Swing RL = 10k ±13.0 ±13.2 ±13.0 ±13.2 V RL = 1k ±12.0 ±12.3 ±12.0 ±12.3 V SR Slew Rate RL ≥ 2k (Note 7) 2.3 3.4 2.3 3.4 V/µs GBW Gain-Bandwidth Product fO = 100kHz 2.5 4.2 2.5 4.2 MHz IS Supply Current 4.2 5.20 4.2 5.20 mA VS = ±5V 4.2 5.15 4.2 5.15 mA Offset Voltage RPOT (to VEE) = 10k 13 13 mV Adjustment Range
The
●
denotes specifications which apply over the temperature range 0
°
C
≤
TA
≤
70
°
C, otherwise specifications are at TA = 25
°
C. VS =
±
15V, VCM = 0V, unless otherwise noted. (Note 9) LT1793AC LT1793C SYMBOL PARAMETER CONDITIONS (Note 2) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage ● 0.50 1.0 1.0 3.5 mV VS = ±5V ● 0.75 1.6 1.6 4.2 mV ∆VOS Average Input Offset (Note 6) ● 5 13 8 50 µV/°C ∆Temp Voltage Drift IOS Input Offset Current ● 15 100 20 130 pA IB Input Bias Current ● 130 400 150 500 pA VCM Input Voltage Range (Note 5) ● 12.9 13.4 12.9 13.4 V ● – 10.0 – 10.8 – 10.0 – 10.8 V CMRR Common Mode Rejection Ratio VCM = –10V to 12.9V ● 79 100 77 95 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ± 20V ● 83 97 81 94 dB AVOL Large-Signal Voltage Gain VO = ±12V, RL = 10k ● 900 3600 800 3400 V/mV VO = ±10V, RL = 1k ● 500 2600 400 2400 V/mV VOUT Output Voltage Swing RL = 10k ● ±12.9 ±13.2 ±12.9 ±13.2 V RL = 1k ● ±11.9 ±12.15 ±11.9 ±12.15 V SR Slew Rate RL ≥ 2k (Note 7) ● 2.2 3.3 2.2 3.3 V/µs GBW Gain-Bandwidth Product fO = 100kHz ● 2.2 3.3 2.2 3.3 MHz IS Supply Current ● 4.2 5.30 4.2 5.30 mA VS = ±5V ● 4.2 5.25 4.2 5.25 mA 3
