| Beschreibung | Dual/Quad Zero-Drift Operational Amplifiers |
| Seiten / Seite | 12 / 9 — TYPICAL APPLICATIO. Obtaining Ultralow VOS Drift and Low Noise. eIN (DC – … |
| Dateiformat / Größe | PDF / 148 Kb |
| Dokumentensprache | Englisch |

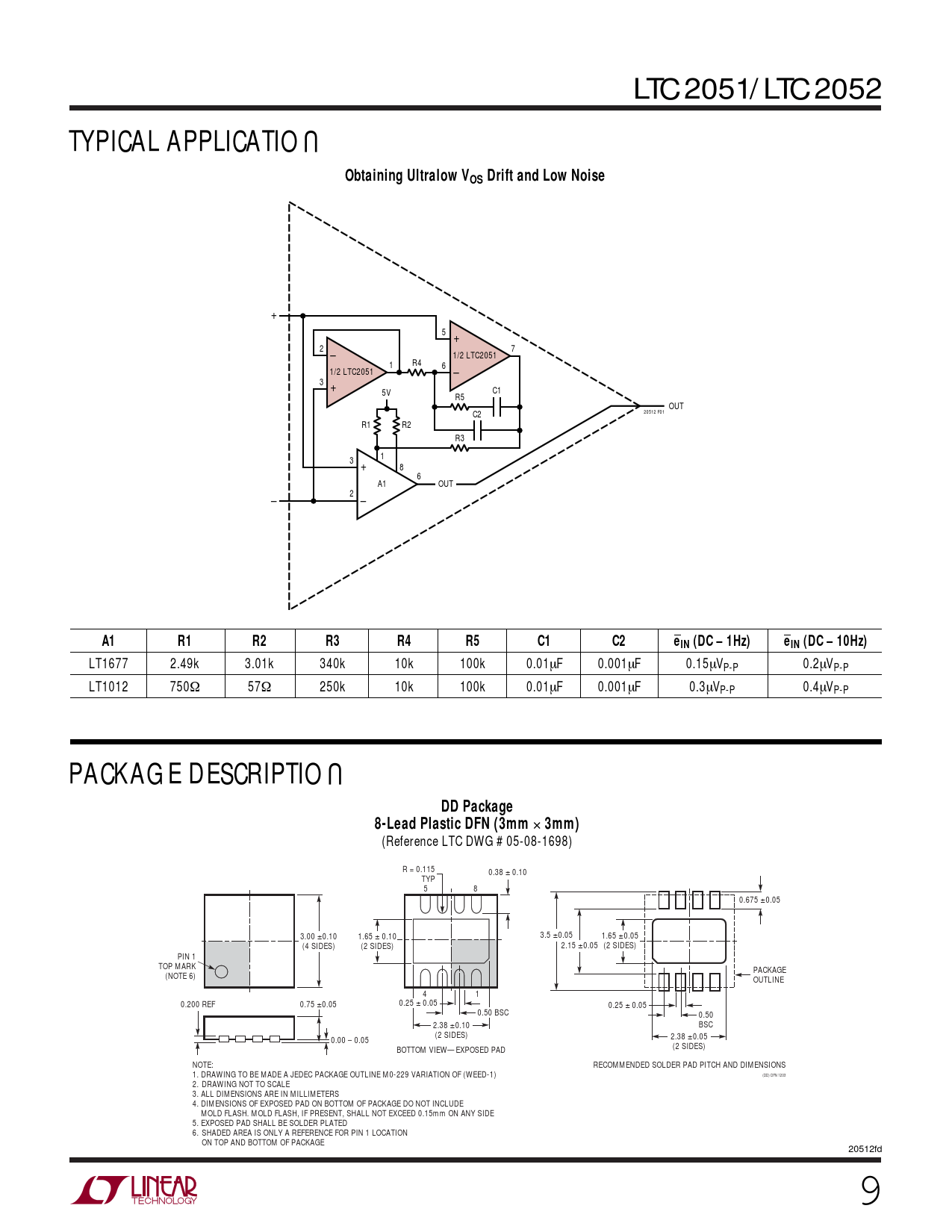

TYPICAL APPLICATIO. Obtaining Ultralow VOS Drift and Low Noise. eIN (DC – 1Hz). eIN (DC – 10Hz). PACKAGE DESCRIPTIO. DD Package
