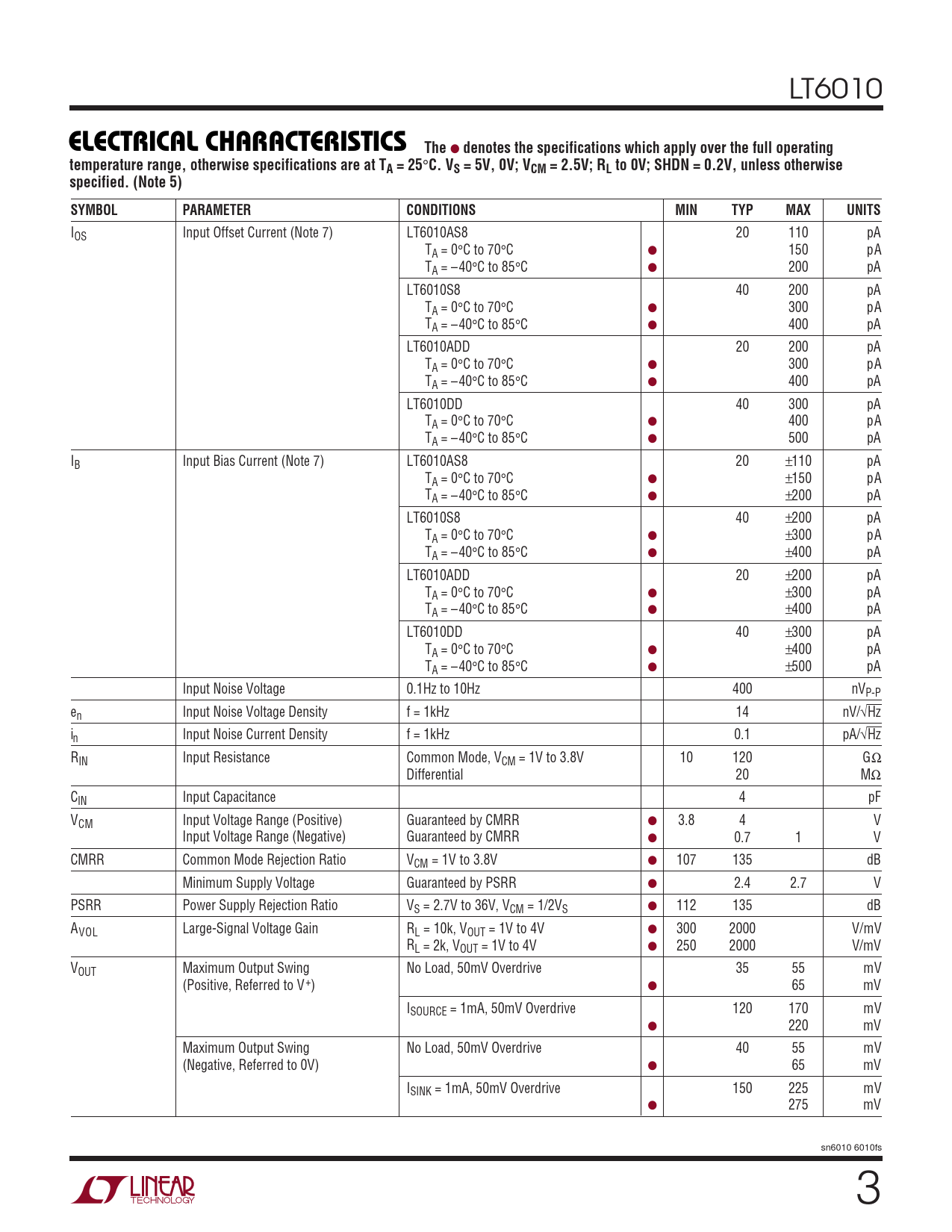

LT6010 ELECTRICAL CHARACTERISTICS The ● denotes the specifications which apply over the full operatingtemperature range, otherwise specifications are at TA = 25 ° C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; SHDN = 0.2V, unless otherwisespecified. (Note 5)SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITS IOS Input Offset Current (Note 7) LT6010AS8 20 110 pA TA = 0°C to 70°C ● 150 pA TA = –40°C to 85°C ● 200 pA LT6010S8 40 200 pA TA = 0°C to 70°C ● 300 pA TA = –40°C to 85°C ● 400 pA LT6010ADD 20 200 pA TA = 0°C to 70°C ● 300 pA TA = –40°C to 85°C ● 400 pA LT6010DD 40 300 pA TA = 0°C to 70°C ● 400 pA TA = –40°C to 85°C ● 500 pA IB Input Bias Current (Note 7) LT6010AS8 20 ±110 pA TA = 0°C to 70°C ● ±150 pA TA = –40°C to 85°C ● ±200 pA LT6010S8 40 ±200 pA TA = 0°C to 70°C ● ±300 pA TA = –40°C to 85°C ● ±400 pA LT6010ADD 20 ±200 pA TA = 0°C to 70°C ● ±300 pA TA = –40°C to 85°C ● ±400 pA LT6010DD 40 ±300 pA TA = 0°C to 70°C ● ±400 pA TA = –40°C to 85°C ● ±500 pA Input Noise Voltage 0.1Hz to 10Hz 400 nVP-P en Input Noise Voltage Density f = 1kHz 14 nV/√Hz in Input Noise Current Density f = 1kHz 0.1 pA/√Hz RIN Input Resistance Common Mode, VCM = 1V to 3.8V 10 120 GΩ Differential 20 MΩ CIN Input Capacitance 4 pF VCM Input Voltage Range (Positive) Guaranteed by CMRR ● 3.8 4 V Input Voltage Range (Negative) Guaranteed by CMRR ● 0.7 1 V CMRR Common Mode Rejection Ratio VCM = 1V to 3.8V ● 107 135 dB Minimum Supply Voltage Guaranteed by PSRR ● 2.4 2.7 V PSRR Power Supply Rejection Ratio VS = 2.7V to 36V, VCM = 1/2VS ● 112 135 dB AVOL Large-Signal Voltage Gain RL = 10k, VOUT = 1V to 4V ● 300 2000 V/mV RL = 2k, VOUT = 1V to 4V ● 250 2000 V/mV VOUT Maximum Output Swing No Load, 50mV Overdrive 35 55 mV (Positive, Referred to V+) ● 65 mV ISOURCE = 1mA, 50mV Overdrive 120 170 mV ● 220 mV Maximum Output Swing No Load, 50mV Overdrive 40 55 mV (Negative, Referred to 0V) ● 65 mV ISINK = 1mA, 50mV Overdrive 150 225 mV ● 275 mV sn6010 6010fs 3
