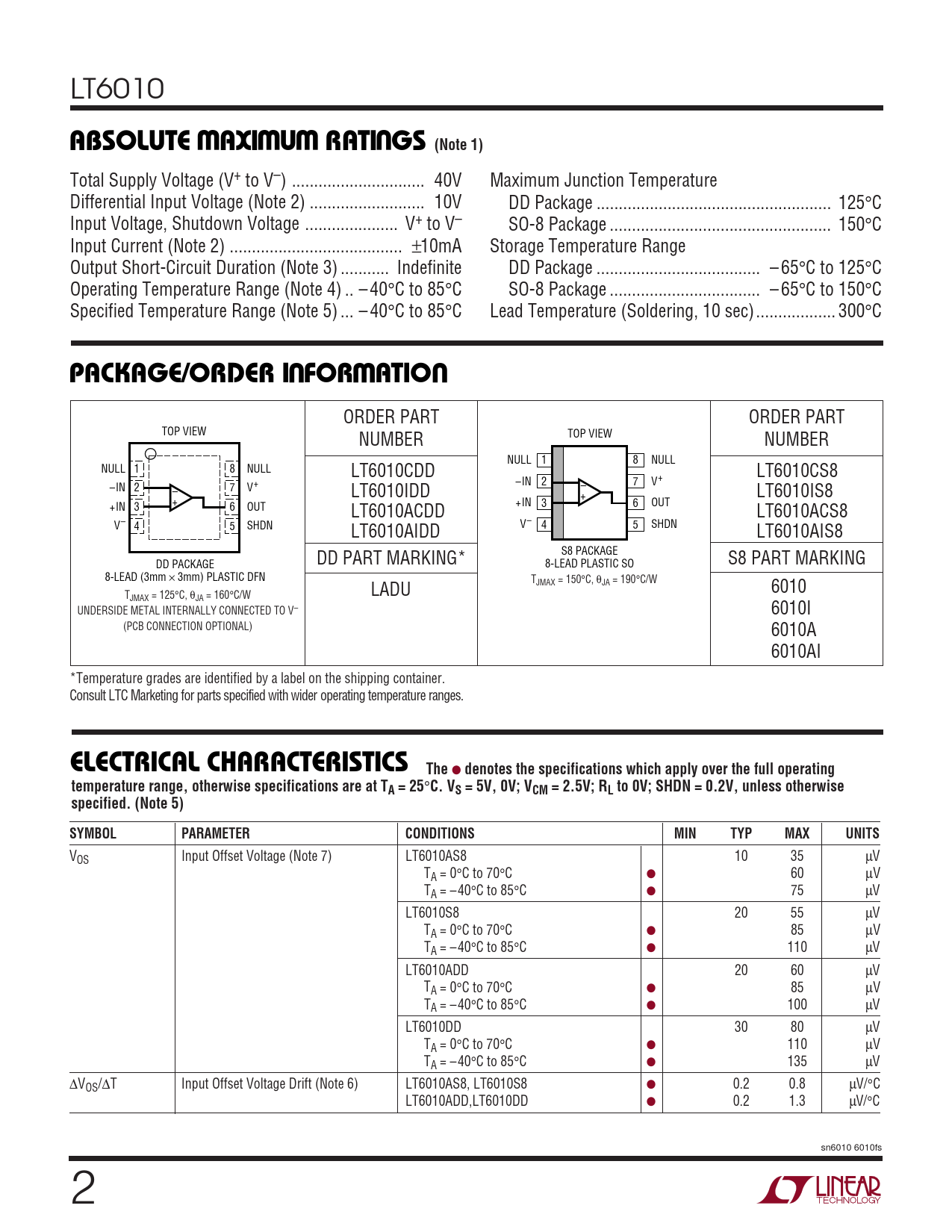

LT6010 WWWUABSOLUTE AXI U RATI GS (Note 1) Total Supply Voltage (V+ to V–) .. 40V Maximum Junction Temperature Differential Input Voltage (Note 2) .. 10V DD Package ... 125°C Input Voltage, Shutdown Voltage ... V+ to V– SO-8 Package .. 150°C Input Current (Note 2) ... ±10mA Storage Temperature Range Output Short-Circuit Duration (Note 3) ... Indefinite DD Package ... – 65°C to 125°C Operating Temperature Range (Note 4) .. – 40°C to 85°C SO-8 Package .. – 65°C to 150°C Specified Temperature Range (Note 5) ... – 40°C to 85°C Lead Temperature (Soldering, 10 sec).. 300°C UWUPACKAGE/ORDER I FOR ATIO ORDER PART ORDER PART TOP VIEW NUMBER TOP VIEW NUMBER NULL 1 8 NULL NULL 1 8 NULL LT6010CDD LT6010CS8 –IN 2 7 V+ –IN 2 7 V+ – – LT6010IDD + LT6010IS8 + +IN 3 6 OUT LT6010ACDD +IN 3 6 OUT LT6010ACS8 V– 4 5 SHDN LT6010AIDD V– 4 5 SHDN LT6010AIS8 DD PART MARKING* S8 PACKAGE 8-LEAD PLASTIC SO S8 PART MARKING DD PACKAGE 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 190°C/W 6010 LADU TJMAX = 125°C, θJA = 160°C/W UNDERSIDE METAL INTERNALLY CONNECTED TO V– 6010I (PCB CONNECTION OPTIONAL) 6010A 6010AI *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. ELECTRICAL CHARACTERISTICS The ● denotes the specifications which apply over the full operatingtemperature range, otherwise specifications are at TA = 25 ° C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; SHDN = 0.2V, unless otherwisespecified. (Note 5)SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITS VOS Input Offset Voltage (Note 7) LT6010AS8 10 35 µV TA = 0°C to 70°C ● 60 µV TA = –40°C to 85°C ● 75 µV LT6010S8 20 55 µV TA = 0°C to 70°C ● 85 µV TA = –40°C to 85°C ● 110 µV LT6010ADD 20 60 µV TA = 0°C to 70°C ● 85 µV TA = –40°C to 85°C ● 100 µV LT6010DD 30 80 µV TA = 0°C to 70°C ● 110 µV TA = –40°C to 85°C ● 135 µV ∆VOS/∆T Input Offset Voltage Drift (Note 6) LT6010AS8, LT6010S8 ● 0.2 0.8 µV/°C LT6010ADD,LT6010DD ● 0.2 1.3 µV/°C sn6010 6010fs 2
