Datasheet LT6013, LT6014 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Single/Dual 145µA, 9.5nV/√Hz, AV ≥5, Rail-to-Rail Output Precision Op Amps |
| Seiten / Seite | 16 / 3 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 346 Kb |
| Dokumentensprache | Englisch |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments

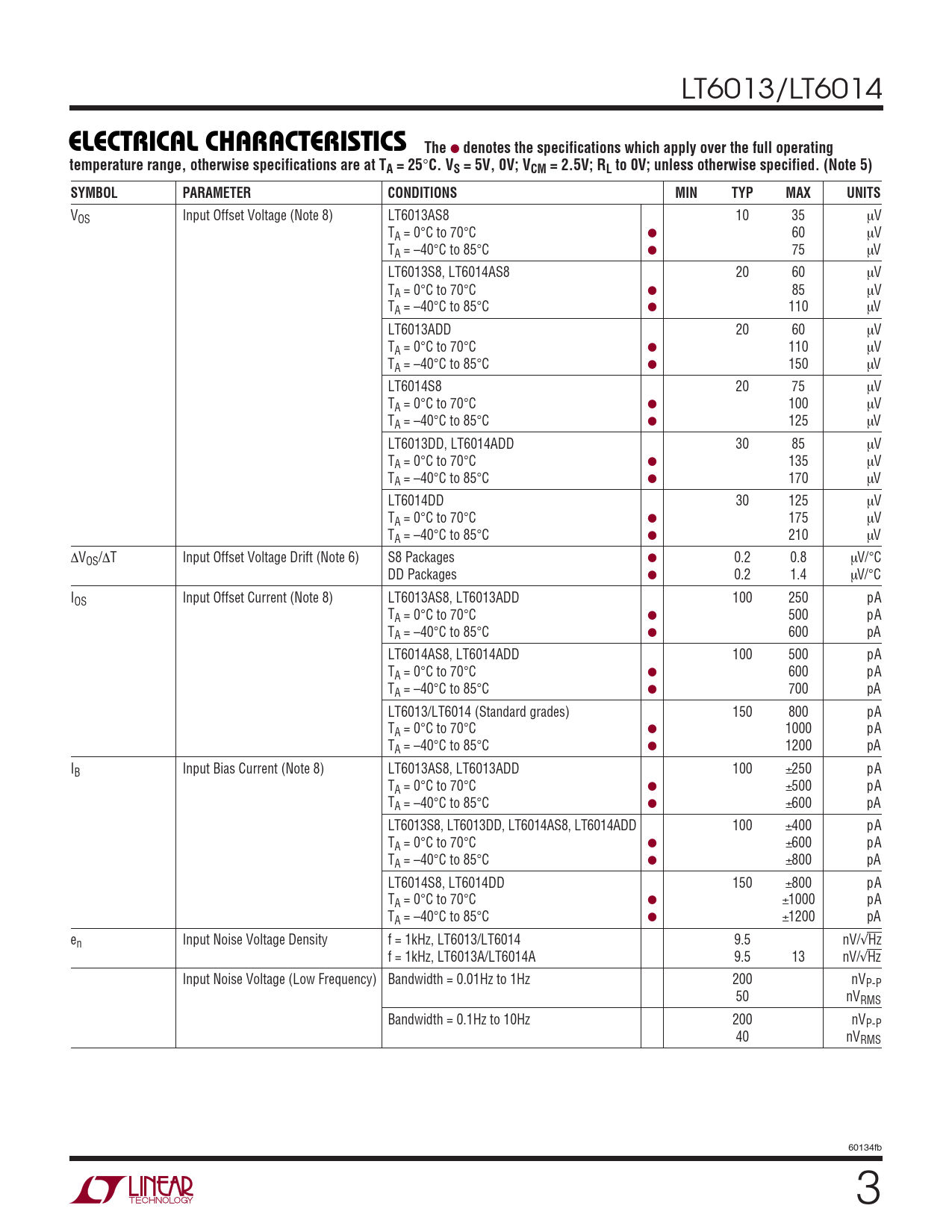

LT6013/LT6014
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 8) LT6013AS8 10 35 µV TA = 0°C to 70°C ● 60 µV TA = –40°C to 85°C ● 75 µV LT6013S8, LT6014AS8 20 60 µV TA = 0°C to 70°C ● 85 µV TA = –40°C to 85°C ● 110 µV LT6013ADD 20 60 µV TA = 0°C to 70°C ● 110 µV TA = –40°C to 85°C ● 150 µV LT6014S8 20 75 µV TA = 0°C to 70°C ● 100 µV TA = –40°C to 85°C ● 125 µV LT6013DD, LT6014ADD 30 85 µV TA = 0°C to 70°C ● 135 µV TA = –40°C to 85°C ● 170 µV LT6014DD 30 125 µV TA = 0°C to 70°C ● 175 µV TA = –40°C to 85°C ● 210 µV ∆VOS/∆T Input Offset Voltage Drift (Note 6) S8 Packages ● 0.2 0.8 µV/°C DD Packages ● 0.2 1.4 µV/°C IOS Input Offset Current (Note 8) LT6013AS8, LT6013ADD 100 250 pA TA = 0°C to 70°C ● 500 pA TA = –40°C to 85°C ● 600 pA LT6014AS8, LT6014ADD 100 500 pA TA = 0°C to 70°C ● 600 pA TA = –40°C to 85°C ● 700 pA LT6013/LT6014 (Standard grades) 150 800 pA TA = 0°C to 70°C ● 1000 pA TA = –40°C to 85°C ● 1200 pA IB Input Bias Current (Note 8) LT6013AS8, LT6013ADD 100 ±250 pA TA = 0°C to 70°C ● ±500 pA TA = –40°C to 85°C ● ±600 pA LT6013S8, LT6013DD, LT6014AS8, LT6014ADD 100 ±400 pA TA = 0°C to 70°C ● ±600 pA TA = –40°C to 85°C ● ±800 pA LT6014S8, LT6014DD 150 ±800 pA TA = 0°C to 70°C ● ±1000 pA TA = –40°C to 85°C ● ±1200 pA en Input Noise Voltage Density f = 1kHz, LT6013/LT6014 9.5 nV/√Hz f = 1kHz, LT6013A/LT6014A 9.5 13 nV/√Hz Input Noise Voltage (Low Frequency) Bandwidth = 0.01Hz to 1Hz 200 nVP-P 50 nVRMS Bandwidth = 0.1Hz to 10Hz 200 nVP-P 40 nVRMS 60134fb 3
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 8) LT6013AS8 10 35 µV TA = 0°C to 70°C ● 60 µV TA = –40°C to 85°C ● 75 µV LT6013S8, LT6014AS8 20 60 µV TA = 0°C to 70°C ● 85 µV TA = –40°C to 85°C ● 110 µV LT6013ADD 20 60 µV TA = 0°C to 70°C ● 110 µV TA = –40°C to 85°C ● 150 µV LT6014S8 20 75 µV TA = 0°C to 70°C ● 100 µV TA = –40°C to 85°C ● 125 µV LT6013DD, LT6014ADD 30 85 µV TA = 0°C to 70°C ● 135 µV TA = –40°C to 85°C ● 170 µV LT6014DD 30 125 µV TA = 0°C to 70°C ● 175 µV TA = –40°C to 85°C ● 210 µV ∆VOS/∆T Input Offset Voltage Drift (Note 6) S8 Packages ● 0.2 0.8 µV/°C DD Packages ● 0.2 1.4 µV/°C IOS Input Offset Current (Note 8) LT6013AS8, LT6013ADD 100 250 pA TA = 0°C to 70°C ● 500 pA TA = –40°C to 85°C ● 600 pA LT6014AS8, LT6014ADD 100 500 pA TA = 0°C to 70°C ● 600 pA TA = –40°C to 85°C ● 700 pA LT6013/LT6014 (Standard grades) 150 800 pA TA = 0°C to 70°C ● 1000 pA TA = –40°C to 85°C ● 1200 pA IB Input Bias Current (Note 8) LT6013AS8, LT6013ADD 100 ±250 pA TA = 0°C to 70°C ● ±500 pA TA = –40°C to 85°C ● ±600 pA LT6013S8, LT6013DD, LT6014AS8, LT6014ADD 100 ±400 pA TA = 0°C to 70°C ● ±600 pA TA = –40°C to 85°C ● ±800 pA LT6014S8, LT6014DD 150 ±800 pA TA = 0°C to 70°C ● ±1000 pA TA = –40°C to 85°C ● ±1200 pA en Input Noise Voltage Density f = 1kHz, LT6013/LT6014 9.5 nV/√Hz f = 1kHz, LT6013A/LT6014A 9.5 13 nV/√Hz Input Noise Voltage (Low Frequency) Bandwidth = 0.01Hz to 1Hz 200 nVP-P 50 nVRMS Bandwidth = 0.1Hz to 10Hz 200 nVP-P 40 nVRMS 60134fb 3
