LT6013/LT6014

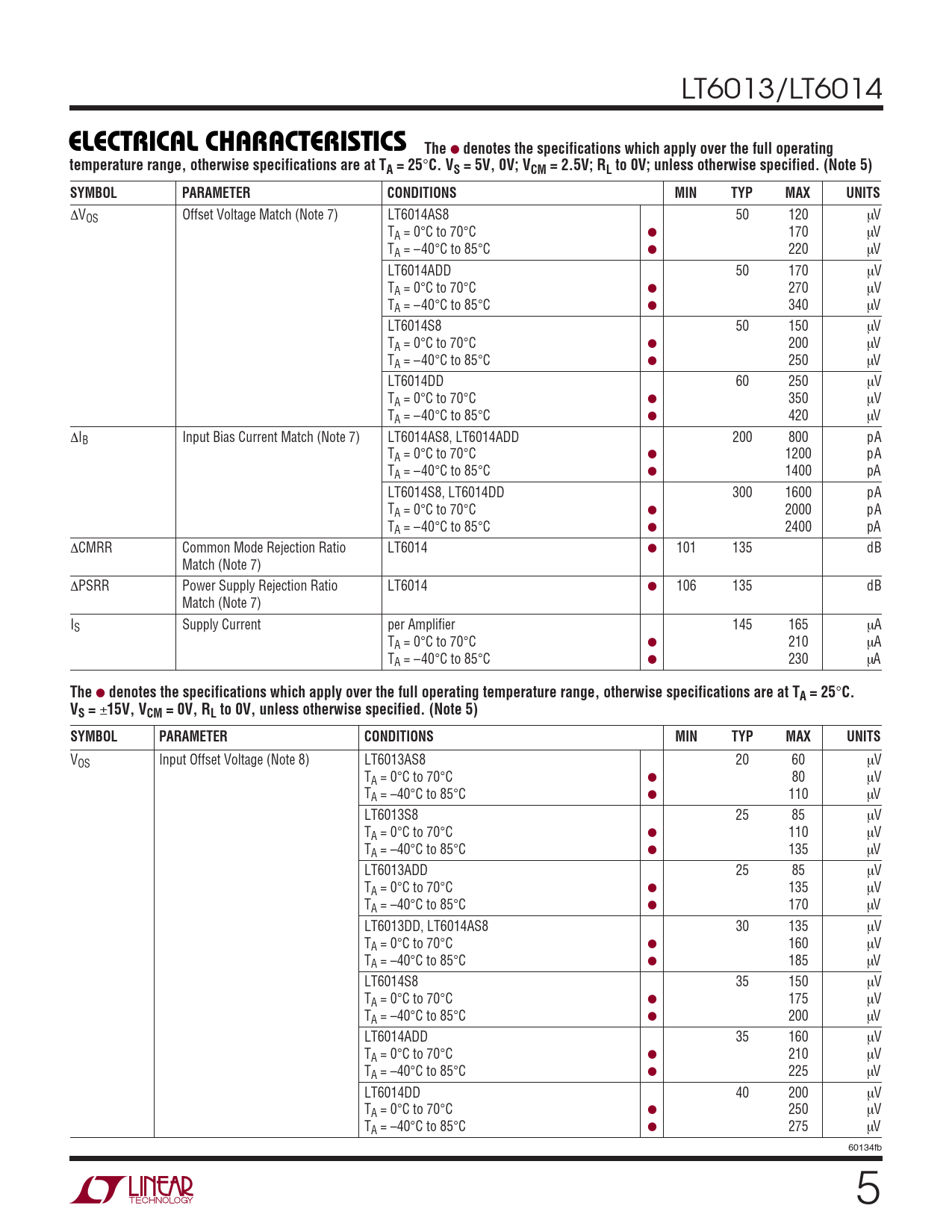

ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
∆VOS Offset Voltage Match (Note 7) LT6014AS8 50 120 µV TA = 0°C to 70°C ● 170 µV TA = –40°C to 85°C ● 220 µV LT6014ADD 50 170 µV TA = 0°C to 70°C ● 270 µV TA = –40°C to 85°C ● 340 µV LT6014S8 50 150 µV TA = 0°C to 70°C ● 200 µV TA = –40°C to 85°C ● 250 µV LT6014DD 60 250 µV TA = 0°C to 70°C ● 350 µV TA = –40°C to 85°C ● 420 µV ∆IB Input Bias Current Match (Note 7) LT6014AS8, LT6014ADD 200 800 pA TA = 0°C to 70°C ● 1200 pA TA = –40°C to 85°C ● 1400 pA LT6014S8, LT6014DD 300 1600 pA TA = 0°C to 70°C ● 2000 pA TA = –40°C to 85°C ● 2400 pA ∆CMRR Common Mode Rejection Ratio LT6014 ● 101 135 dB Match (Note 7) ∆PSRR Power Supply Rejection Ratio LT6014 ● 106 135 dB Match (Note 7) IS Supply Current per Amplifier 145 165 µA TA = 0°C to 70°C ● 210 µA TA = –40°C to 85°C ● 230 µA
The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
15V, VCM = 0V, RL to 0V, unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 8) LT6013AS8 20 60 µV TA = 0°C to 70°C ● 80 µV TA = –40°C to 85°C ● 110 µV LT6013S8 25 85 µV TA = 0°C to 70°C ● 110 µV TA = –40°C to 85°C ● 135 µV LT6013ADD 25 85 µV TA = 0°C to 70°C ● 135 µV TA = –40°C to 85°C ● 170 µV LT6013DD, LT6014AS8 30 135 µV TA = 0°C to 70°C ● 160 µV TA = –40°C to 85°C ● 185 µV LT6014S8 35 150 µV TA = 0°C to 70°C ● 175 µV TA = –40°C to 85°C ● 200 µV LT6014ADD 35 160 µV TA = 0°C to 70°C ● 210 µV TA = –40°C to 85°C ● 225 µV LT6014DD 40 200 µV TA = 0°C to 70°C ● 250 µV TA = –40°C to 85°C ● 275 µV 60134fb 5
