Datasheet LTC4366 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | High Voltage Surge Stopper |
| Seiten / Seite | 24 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. VDD Shunt Regulator vs. VDD Start-Up … |
| Dateiformat / Größe | PDF / 298 Kb |
| Dokumentensprache | Englisch |
TYPICAL PERFORMANCE CHARACTERISTICS. VDD Shunt Regulator vs. VDD Start-Up Current vs. VDD Current. Temperature
Modelllinie für dieses Datenblatt
- LTC4366CDDB-1#PBF LTC4366CDDB-1#TRMPBF LTC4366CDDB-1#TRPBF LTC4366CDDB-2#PBF LTC4366CDDB-2#TRMPBF LTC4366CDDB-2#TRPBF LTC4366CTS8-1#PBF LTC4366CTS8-1#TRMPBF LTC4366CTS8-1#TRPBF LTC4366CTS8-2#PBF LTC4366CTS8-2#TRMPBF LTC4366CTS8-2#TRPBF LTC4366HDDB-1#PBF LTC4366HDDB-1#TRMPBF LTC4366HDDB-1#TRPBF LTC4366HDDB-2#PBF LTC4366HDDB-2#TRMPBF LTC4366HDDB-2#TRPBF LTC4366HTS8-1#PBF LTC4366HTS8-1#TRMPBF LTC4366HTS8-1#TRPBF LTC4366HTS8-2#PBF LTC4366HTS8-2#TRMPBF LTC4366HTS8-2#TRPBF LTC4366IDDB-1#PBF LTC4366IDDB-1#TRMPBF LTC4366IDDB-1#TRPBF LTC4366IDDB-2#PBF LTC4366IDDB-2#TRMPBF LTC4366IDDB-2#TRPBF LTC4366ITS8-1#PBF LTC4366ITS8-1#TRMPBF LTC4366ITS8-1#TRPBF LTC4366ITS8-2#PBF LTC4366ITS8-2#TRMPBF LTC4366ITS8-2#TRPBF LTC4366MPDDB-1#PBF LTC4366MPDDB-1#TRMPBF LTC4366MPDDB-1#TRPBF LTC4366MPDDB-2#PBF LTC4366MPDDB-2#TRMPBF LTC4366MPDDB-2#TRPBF LTC4366MPTS8-1#PBF LTC4366MPTS8-1#TRMPBF LTC4366MPTS8-1#TRPBF LTC4366MPTS8-2#PBF LTC4366MPTS8-2#TRM LTC4366MPTS8-2#TRMPBF LTC4366MPTS8-2#TRPBF
Textversion des Dokuments
LTC4366

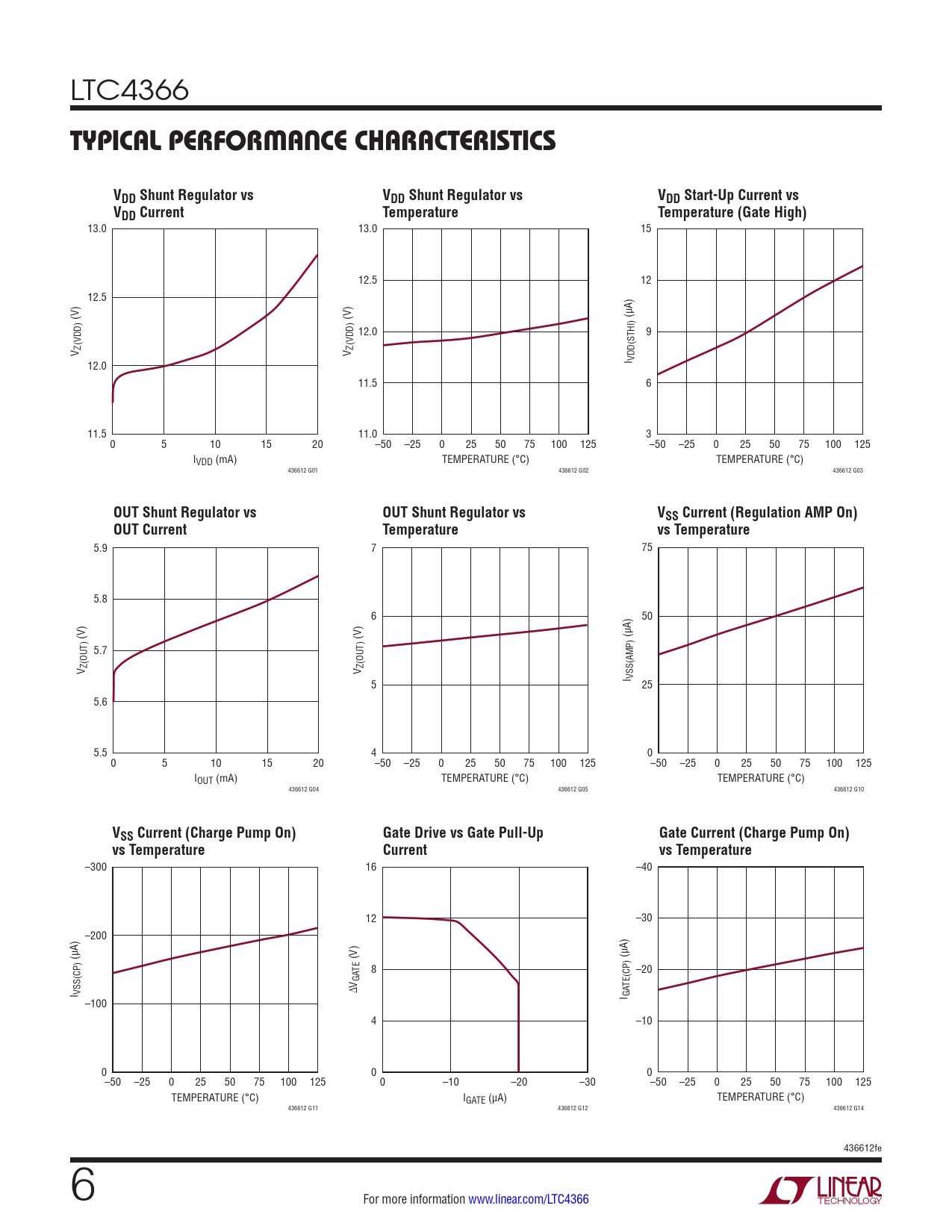

TYPICAL PERFORMANCE CHARACTERISTICS VDD Shunt Regulator vs VDD Shunt Regulator vs VDD Start-Up Current vs VDD Current Temperature Temperature (Gate High)
13.0 13.0 15 12.5 12 12.5 (V) (V) (µA) 12.0 9 V Z(VDD) V Z(VDD) 12.0 I VDD(STHI) 11.5 6 11.5 11.0 3 0 5 10 15 20 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 IVDD (mA) TEMPERATURE (°C) TEMPERATURE (°C) 436612 G01 436612 G02 436612 G03
OUT Shunt Regulator vs OUT Shunt Regulator vs VSS Current (Regulation AMP On) OUT Current Temperature vs Temperature
5.9 7 75 5.8 6 50 (V) (V) (µA) 5.7 V Z(OUT) V Z(OUT) 5 I VSS(AMP) 25 5.6 5.5 4 0 0 5 10 15 20 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 IOUT (mA) TEMPERATURE (°C) TEMPERATURE (°C) 436612 G04 436612 G05 436612 G10
VSS Current (Charge Pump On) Gate Drive vs Gate Pull-Up Gate Current (Charge Pump On) vs Temperature Current vs Temperature
–300 16 –40 12 –30 –200 (µA) (V) (µA) TE 8 –20 TE(CP) I VSS(CP) ∆V GA I GA –100 4 –10 0 0 0 –50 –25 0 25 50 75 100 125 0 –10 –20 –30 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) IGATE (µA) TEMPERATURE (°C) 436612 G11 436612 G12 436612 G14 436612fe 6 For more information www.linear.com/LTC4366 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Simplified Diagram Functional Diagram Operation Applications Information Package Description Typical Application Related Parts
