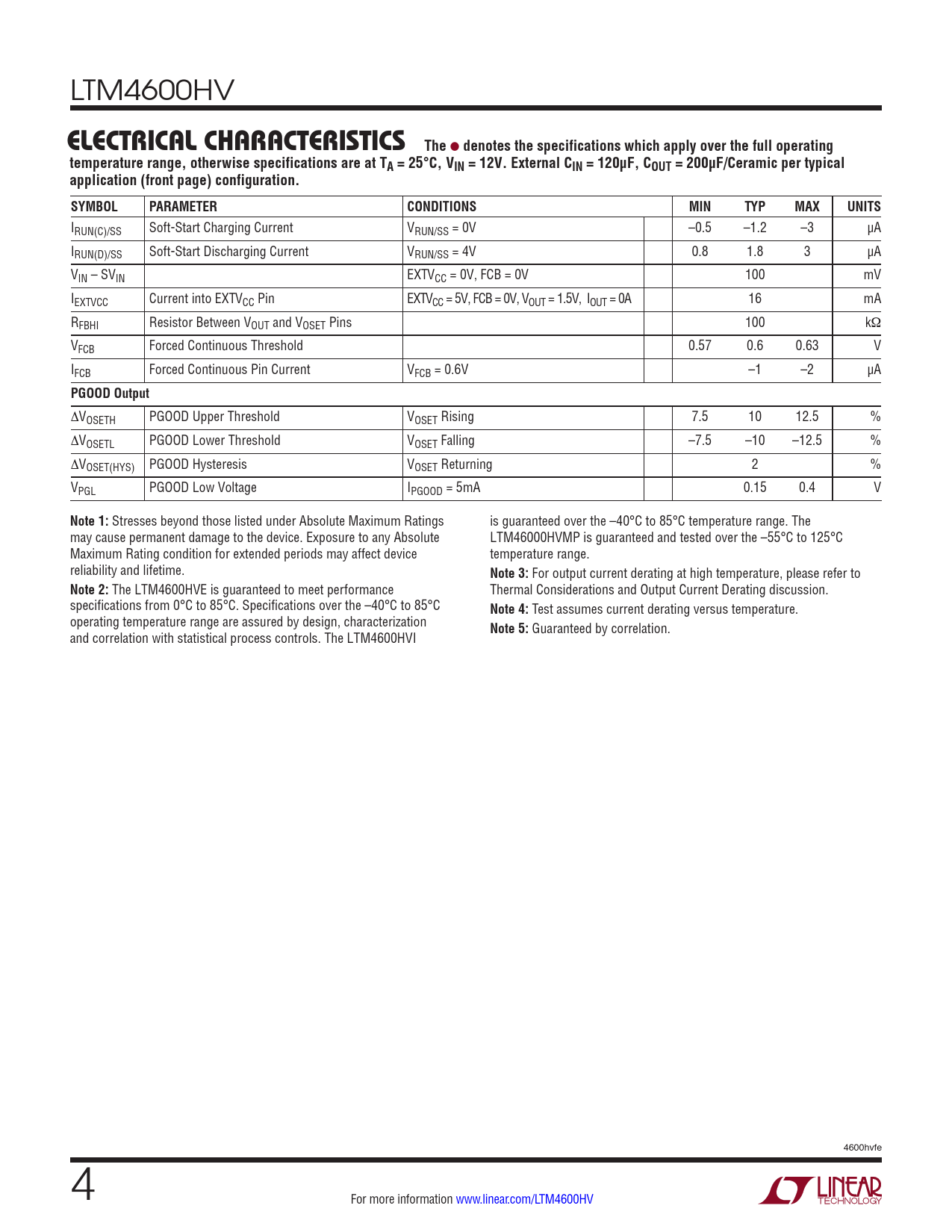

elecTrical characTerisTics The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTM4600HV
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VIN = 12V. External CIN = 120µF, COUT = 200µF/Ceramic per typical application (front page) configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IRUN(C)/SS Soft-Start Charging Current VRUN/SS = 0V –0.5 –1.2 –3 µA IRUN(D)/SS Soft-Start Discharging Current VRUN/SS = 4V 0.8 1.8 3 µA VIN – SVIN EXTVCC = 0V, FCB = 0V 100 mV IEXTVCC Current into EXTVCC Pin EXTVCC = 5V, FCB = 0V, VOUT = 1.5V, IOUT = 0A 16 mA RFBHI Resistor Between VOUT and VOSET Pins 100 kΩ VFCB Forced Continuous Threshold 0.57 0.6 0.63 V IFCB Forced Continuous Pin Current VFCB = 0.6V –1 –2 µA
PGOOD Output
ΔVOSETH PGOOD Upper Threshold VOSET Rising 7.5 10 12.5 % ΔVOSETL PGOOD Lower Threshold VOSET Falling –7.5 –10 –12.5 % ΔVOSET(HYS) PGOOD Hysteresis VOSET Returning 2 % VPGL PGOOD Low Voltage IPGOOD = 5mA 0.15 0.4 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings is guaranteed over the –40°C to 85°C temperature range. The may cause permanent damage to the device. Exposure to any Absolute LTM46000HVMP is guaranteed and tested over the –55°C to 125°C Maximum Rating condition for extended periods may affect device temperature range. reliability and lifetime.
Note 3:
For output current derating at high temperature, please refer to
Note 2:
The LTM4600HVE is guaranteed to meet performance Thermal Considerations and Output Current Derating discussion. specifications from 0°C to 85°C. Specifications over the –40°C to 85°C
Note 4:
Test assumes current derating versus temperature. operating temperature range are assured by design, characterization
Note 5:
Guaranteed by correlation. and correlation with statistical process controls. The LTM4600HVI 4600hvfe 4 For more information www.linear.com/LTM4600HV Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
