Datasheet HMC936ALP6E (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | GaAS MMIC 6 Bit Digital Phase Shifters, 1.2 - 1.4 GHz |
| Seiten / Seite | 6 / 5 — HMC936ALP6E. GaAs MMIC 6 BIT DIGITAL. PHASE SHIFTERS, 1.2 - 1.4 GHz. … |
| Dateiformat / Größe | PDF / 446 Kb |
| Dokumentensprache | Englisch |
HMC936ALP6E. GaAs MMIC 6 BIT DIGITAL. PHASE SHIFTERS, 1.2 - 1.4 GHz. Outline Drawing. Package Information. Pin Descriptions
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC936ALP6E
v03.0117

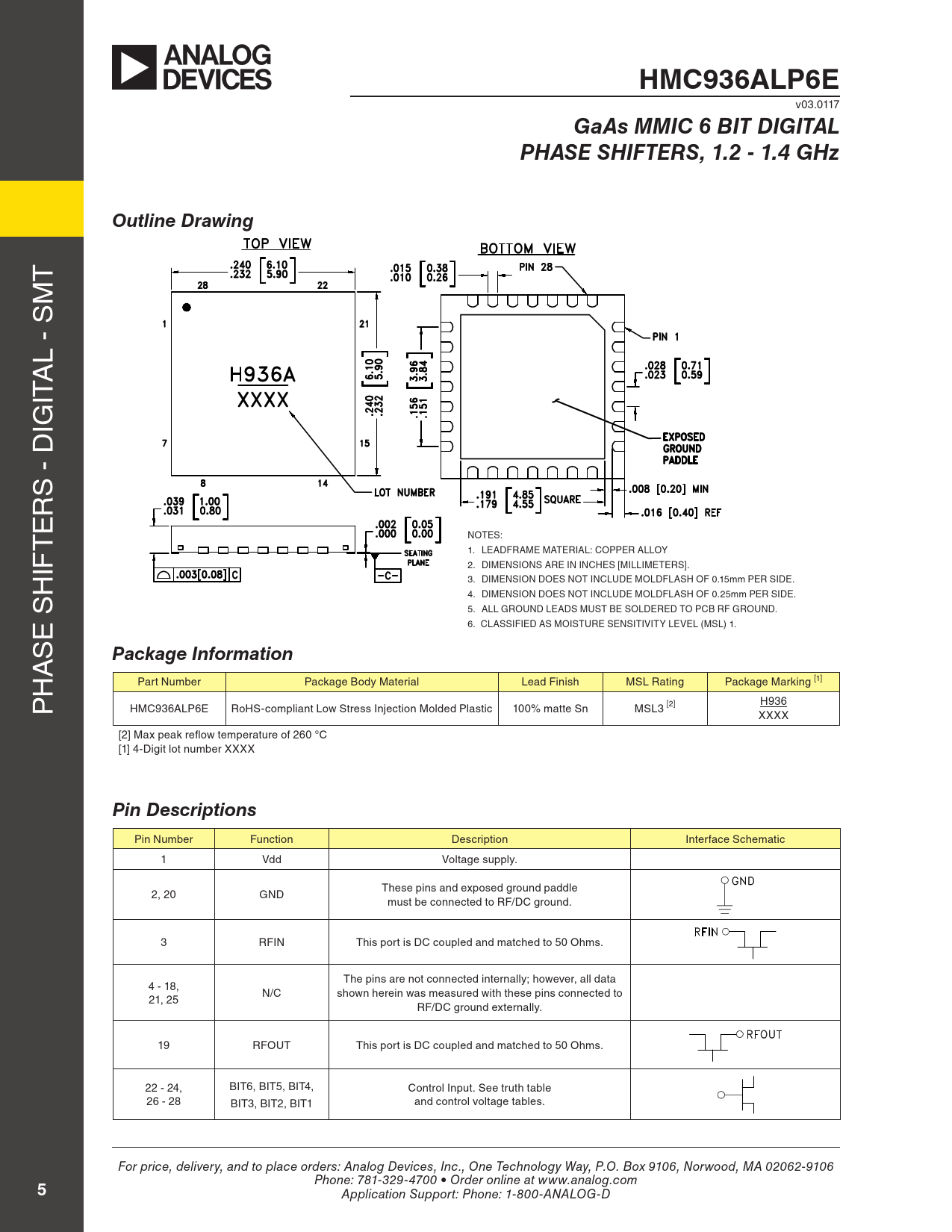

GaAs MMIC 6 BIT DIGITAL PHASE SHIFTERS, 1.2 - 1.4 GHz Outline Drawing
T M L - S ITA IG S - D R E T NOTES: 1. LEADFRAME MATERIAL: COPPER ALLOY IF 2. DIMENSIONS ARE IN INCHES [MILLIMETERS]. H 3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE. 4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE. 5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND. E S 6. CLASSIFIED AS MOISTURE SENSITIVITY LEVEL (MSL) 1. S A
Package Information
H Part Number Package Body Material Lead Finish MSL Rating Package Marking [1] P HMC936ALP6E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [2] H936 XXXX [2] Max peak reflow temperature of 260 °C [1] 4-Digit lot number XXXX
Pin Descriptions
Pin Number Function Description Interface Schematic 1 Vdd Voltage supply. These pins and exposed ground paddle 2, 20 GND must be connected to RF/DC ground. 3 RFIN This port is DC coupled and matched to 50 Ohms. The pins are not connected internally; however, all data 4 - 18, N/C shown herein was measured with these pins connected to 21, 25 RF/DC ground externally. 19 RFOUT This port is DC coupled and matched to 50 Ohms. 22 - 24, BIT6, BIT5, BIT4, Control Input. See truth table 26 - 28 BIT3, BIT2, BIT1 and control voltage tables. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
