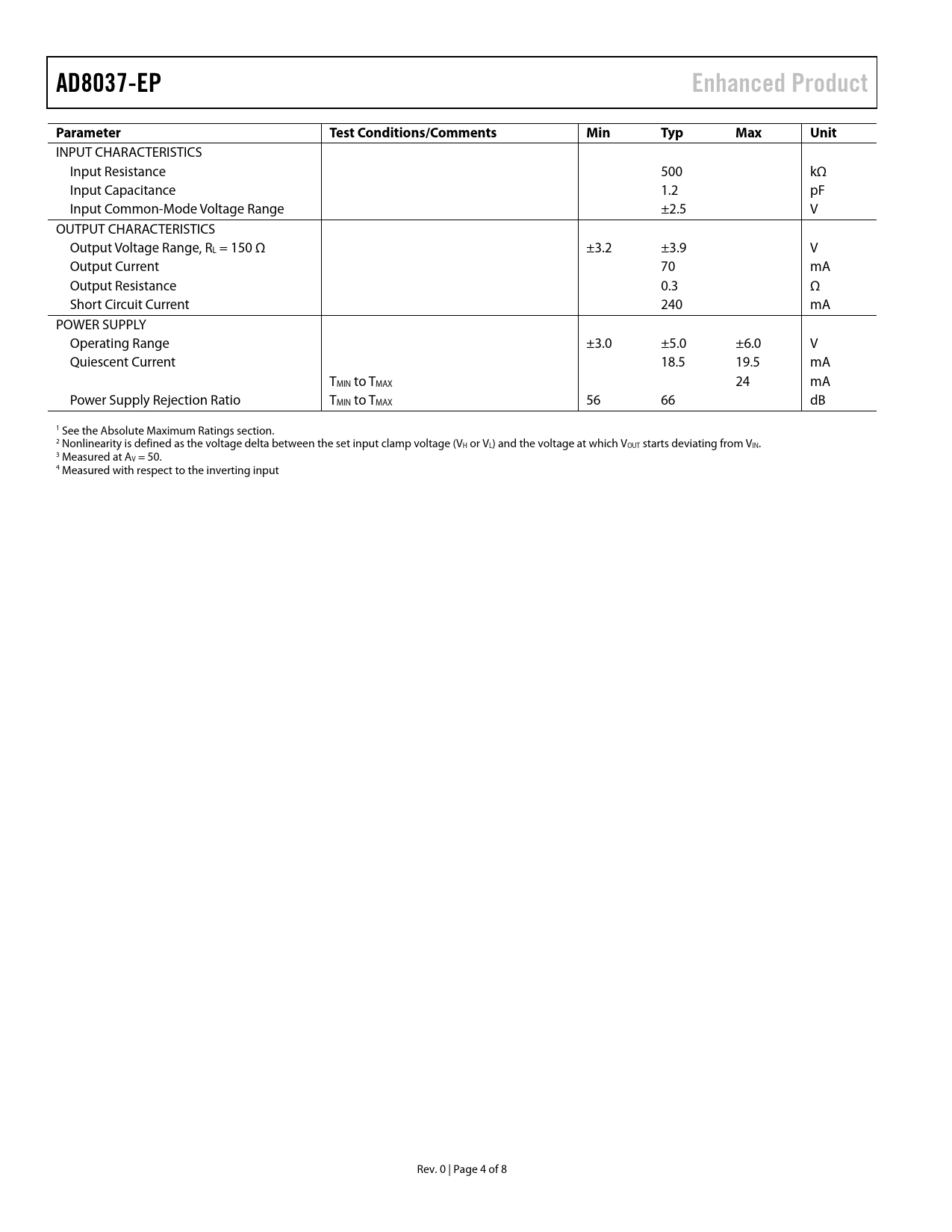

AD8037-EP Enhanced Product Parameter Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Input Resistance 500 kΩ Input Capacitance 1.2 pF Input Common-Mode Voltage Range ±2.5 V OUTPUT CHARACTERISTICS Output Voltage Range, RL = 150 Ω ±3.2 ±3.9 V Output Current 70 mA Output Resistance 0.3 Ω Short Circuit Current 240 mA POWER SUPPLY Operating Range ±3.0 ±5.0 ±6.0 V Quiescent Current 18.5 19.5 mA TMIN to TMAX 24 mA Power Supply Rejection Ratio TMIN to TMAX 56 66 dB 1 See the Absolute Maximum Ratings section. 2 Nonlinearity is defined as the voltage delta between the set input clamp voltage (VH or VL) and the voltage at which VOUT starts deviating from VIN. 3 Measured at AV = 50. 4 Measured with respect to the inverting input Rev. 0 | Page 4 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
