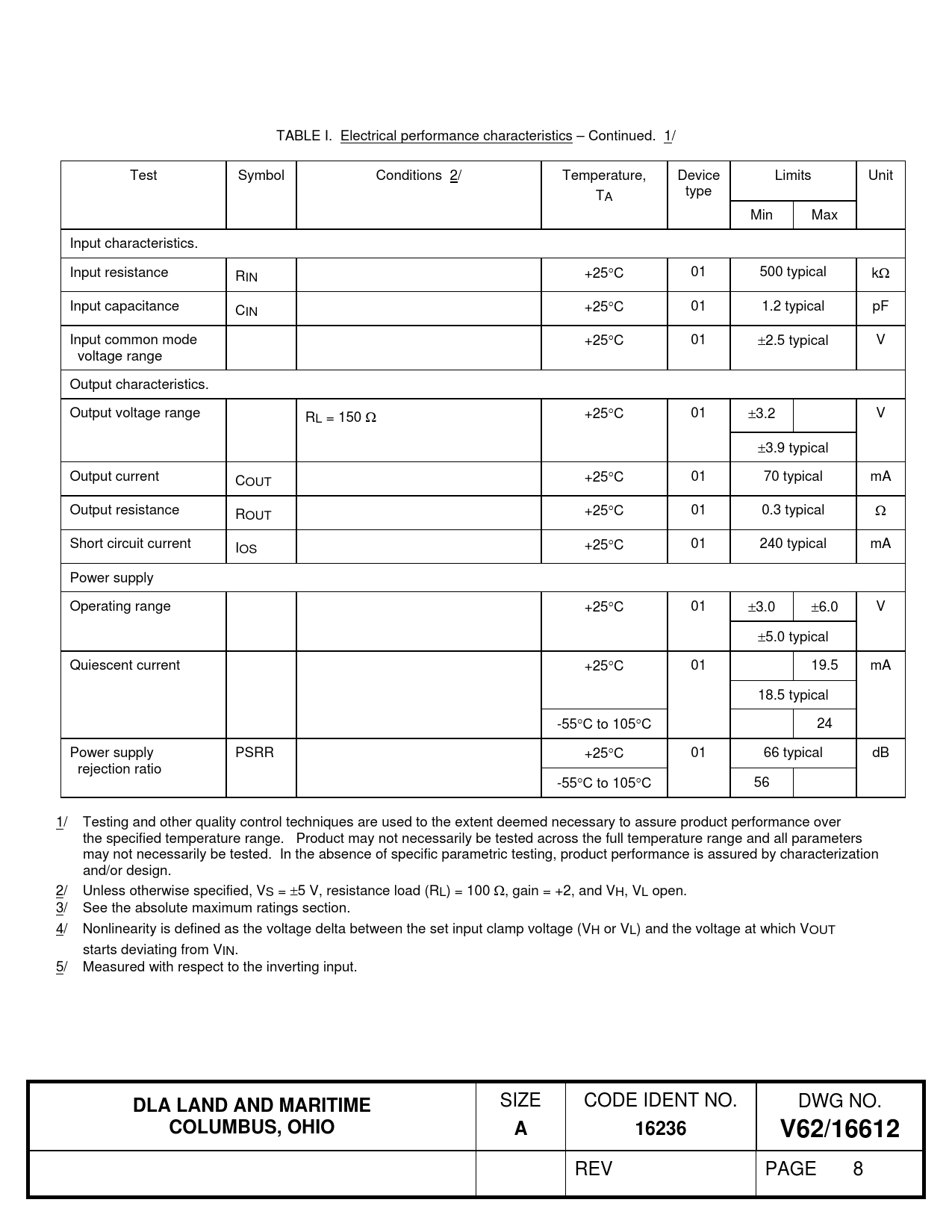

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit TA type Min Max Input characteristics. Input resistance RIN +25C 01 500 typical k Input capacitance CIN +25C 01 1.2 typical pF Input common mode +25C 01 2.5 typical V voltage range Output characteristics. Output voltage range RL = 150 +25C 01 3.2 V 3.9 typical Output current COUT +25C 01 70 typical mA Output resistance ROUT +25C 01 0.3 typical Short circuit current IOS +25C 01 240 typical mA Power supply Operating range +25C 01 3.0 6.0 V 5.0 typical Quiescent current +25C 01 19.5 mA 18.5 typical -55C to 105C 24 Power supply PSRR +25C 01 66 typical dB rejection ratio -55C to 105C 56 1/ Testing and other quality control techniques are used to the extent deemed necessary to assure product performance over the specified temperature range. Product may not necessarily be tested across the full temperature range and all parameters may not necessarily be tested. In the absence of specific parametric testing, product performance is assured by characterization and/or design. 2/ Unless otherwise specified, VS = 5 V, resistance load (RL) = 100 , gain = +2, and VH, VL open. 3/ See the absolute maximum ratings section. 4/ Nonlinearity is defined as the voltage delta between the set input clamp voltage (VH or VL) and the voltage at which VOUT starts deviating from VIN. 5/ Measured with respect to the inverting input.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16612
REV PAGE 8
