DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16612
Modelllinie für dieses Datenblatt
Textversion des Dokuments

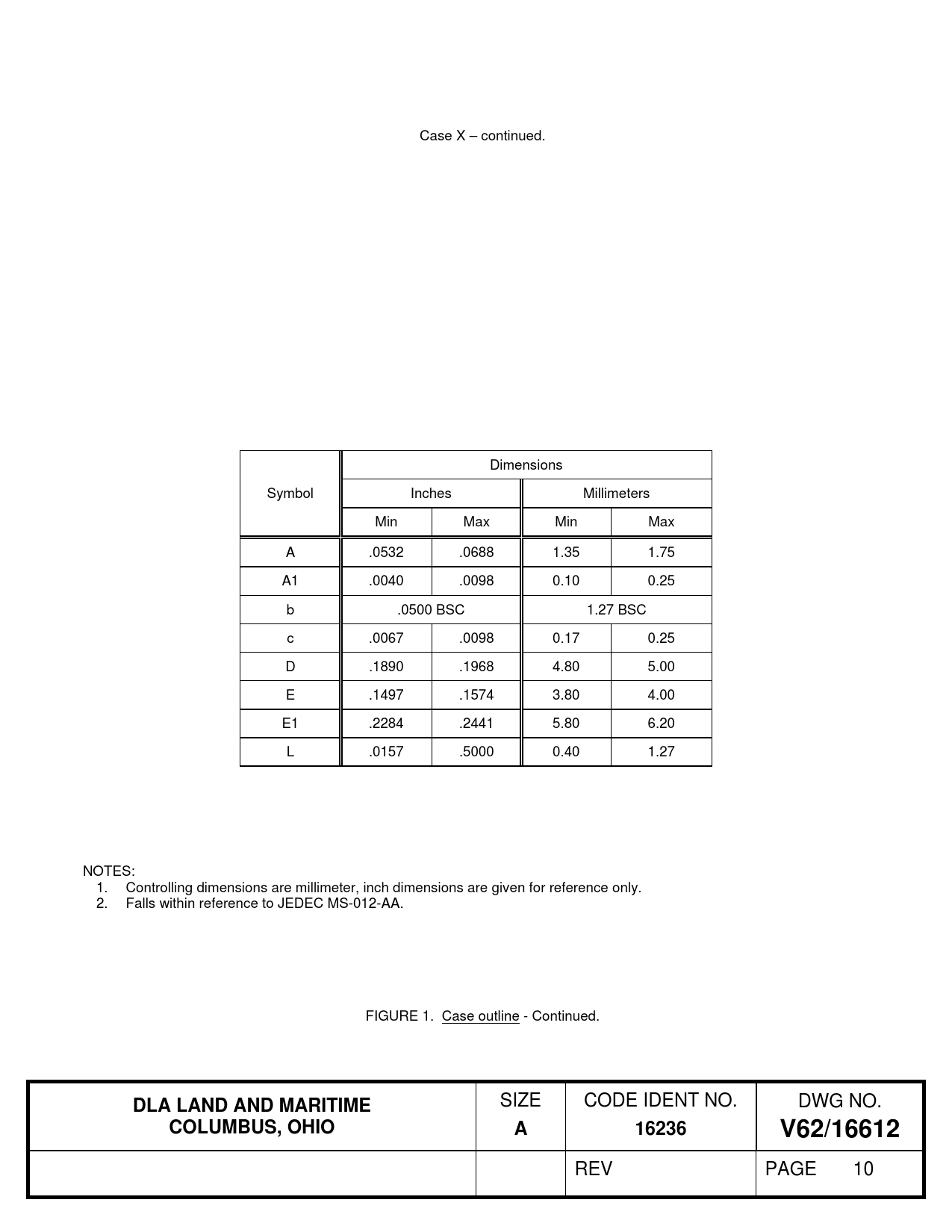

Case X – continued. Dimensions Symbol Inches Millimeters Min Max Min Max A .0532 .0688 1.35 1.75 A1 .0040 .0098 0.10 0.25 b .0500 BSC 1.27 BSC c .0067 .0098 0.17 0.25 D .1890 .1968 4.80 5.00 E .1497 .1574 3.80 4.00 E1 .2284 .2441 5.80 6.20 L .0157 .5000 0.40 1.27 NOTES: 1. Controlling dimensions are millimeter, inch dimensions are given for reference only. 2. Falls within reference to JEDEC MS-012-AA. FIGURE 1. Case outline - Continued.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16612
REV PAGE 10
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16612
REV PAGE 10
