Datasheet OP262-EP (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 15 MHz, Rail-to-Rail, Dual Operational Amplifier |
| Seiten / Seite | 12 / 6 — Table 4. Parameter Min. Table 5. Package Type. θ 1. θJC. Unit. ESD CAUTION |
| Dateiformat / Größe | PDF / 239 Kb |
| Dokumentensprache | Englisch |
Table 4. Parameter Min. Table 5. Package Type. θ 1. θJC. Unit. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

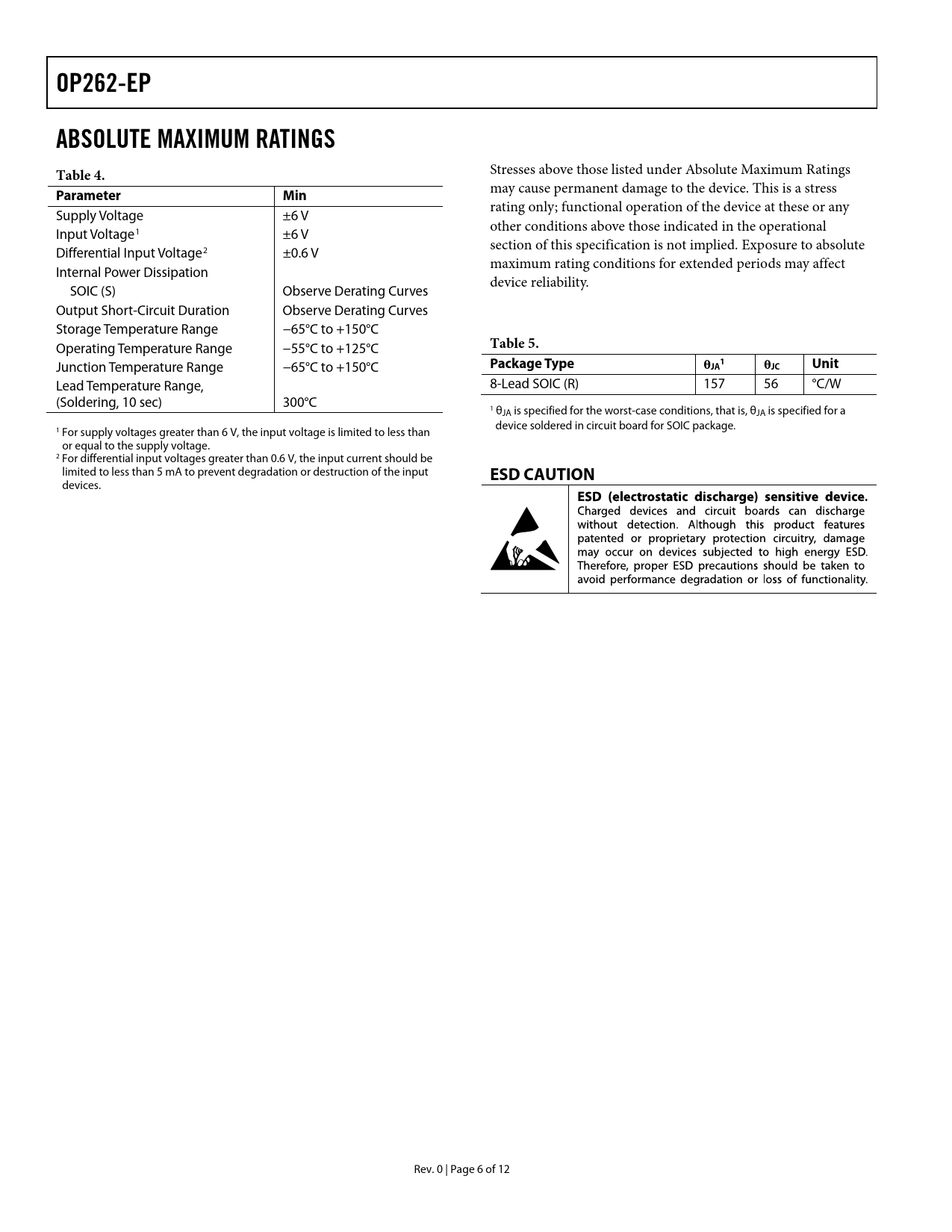

link to page 6 link to page 6 link to page 6 OP262-EP ABSOLUTE MAXIMUM RATINGS
Table 4.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Min
rating only; functional operation of the device at these or any Supply Voltage ±6 V other conditions above those indicated in the operational Input Voltage1 ±6 V section of this specification is not implied. Exposure to absolute Differential Input Voltage2 ±0.6 V maximum rating conditions for extended periods may affect Internal Power Dissipation device reliability. SOIC (S) Observe Derating Curves Output Short-Circuit Duration Observe Derating Curves Storage Temperature Range −65°C to +150°C Operating Temperature Range −55°C to +125°C
Table 5.
Junction Temperature Range −65°C to +150°C
Package Type θ 1 JA θJC Unit
Lead Temperature Range, 8-Lead SOIC (R) 157 56 °C/W (Soldering, 10 sec) 300°C 1 θJA is specified for the worst-case conditions, that is, θJA is specified for a device soldered in circuit board for SOIC package. 1 For supply voltages greater than 6 V, the input voltage is limited to less than or equal to the supply voltage. 2 For differential input voltages greater than 0.6 V, the input current should be limited to less than 5 mA to prevent degradation or destruction of the input
ESD CAUTION
devices. Rev. 0 | Page 6 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
