| Beschreibung | 15 MHz, Rail-to-Rail, Dual Operational Amplifier |
| Seiten / Seite | 12 / 1 — FEATURES. PIN CONFIGURATION. Supports defense and aerospace applications. … |
| Dateiformat / Größe | PDF / 239 Kb |
| Dokumentensprache | Englisch |
FEATURES. PIN CONFIGURATION. Supports defense and aerospace applications. OUT A 1. (AQEC standard). –IN A. OP262-EP 7 OUT B
Modelllinie für dieses Datenblatt
Textversion des Dokuments

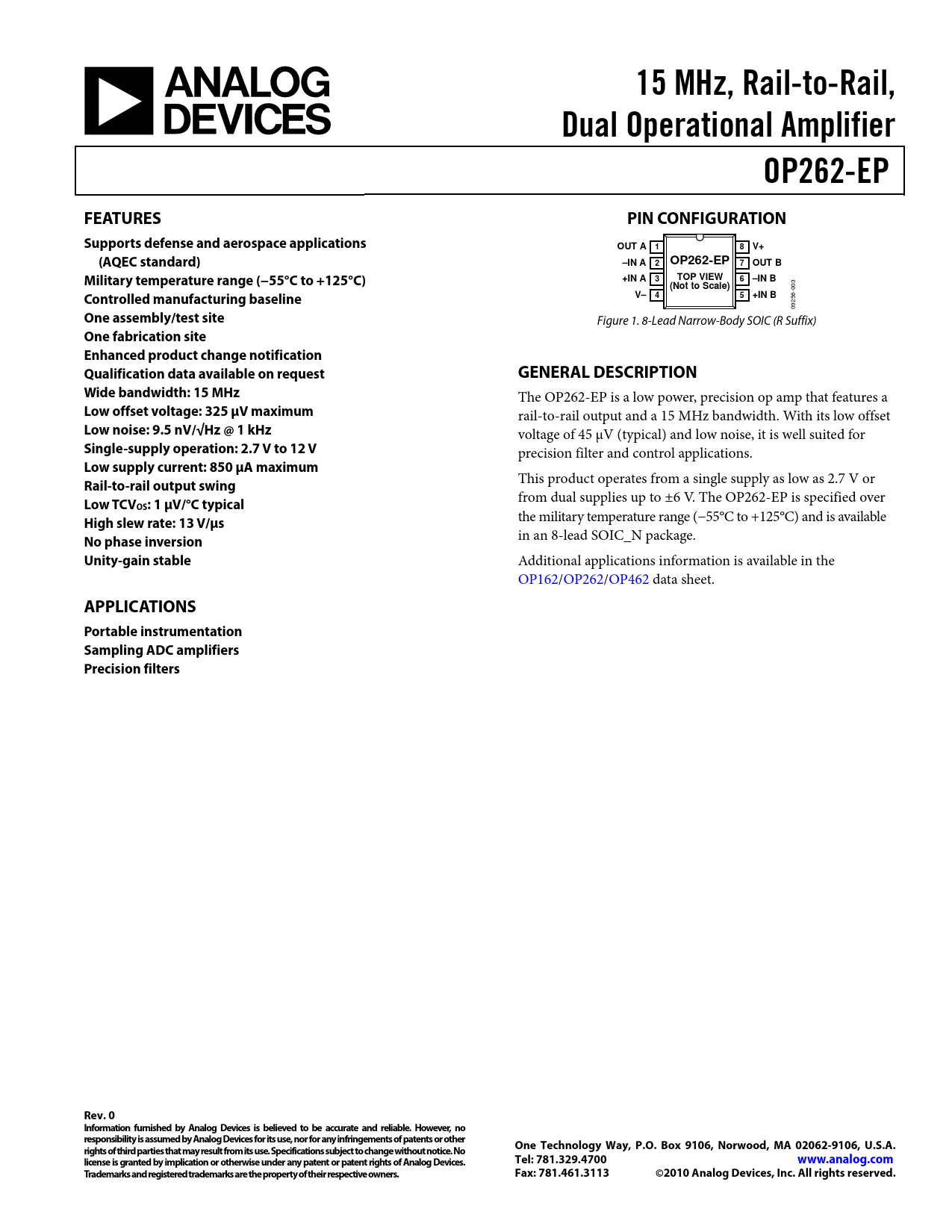

15 MHz, Rail-to-Rail, Dual Operational Amplifier OP262-EP
FEATURES PIN CONFIGURATION Supports defense and aerospace applications OUT A 1 8 V+ (AQEC standard) –IN A 2 OP262-EP 7 OUT B Military temperature range (−55°C to +125°C) +IN A 3 TOP VIEW 6 –IN B
3
(Not to Scale)
-00
Controlled manufacturing baseline V– 4 5 +IN B
56 92 0
One assembly/test site
Figure 1. 8-Lead Narrow-Body SOIC (R Suffix)
One fabrication site Enhanced product change notification Qualification data available on request GENERAL DESCRIPTION Wide bandwidth: 15 MHz
The OP262-EP is a low power, precision op amp that features a
Low offset voltage: 325 μV maximum
rail-to-rail output and a 15 MHz bandwidth. With its low offset
Low noise: 9.5 nV/√Hz @ 1 kHz
voltage of 45 μV (typical) and low noise, it is well suited for
Single-supply operation: 2.7 V to 12 V
precision filter and control applications.
Low supply current: 850 μA maximum
This product operates from a single supply as low as 2.7 V or
Rail-to-rail output swing
from dual supplies up to ±6 V. The OP262-EP is specified over
Low TCVOS: 1 μV/°C typical
the military temperature range (−55°C to +125°C) and is available
High slew rate: 13 V/μs
in an 8-lead SOIC_N package.
No phase inversion Unity-gain stable
Additional applications information is available in the OP162/OP262/OP462 data sheet.
APPLICATIONS Portable instrumentation Sampling ADC amplifiers Precision filters Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2010 Analog Devices, Inc. All rights reserved.
