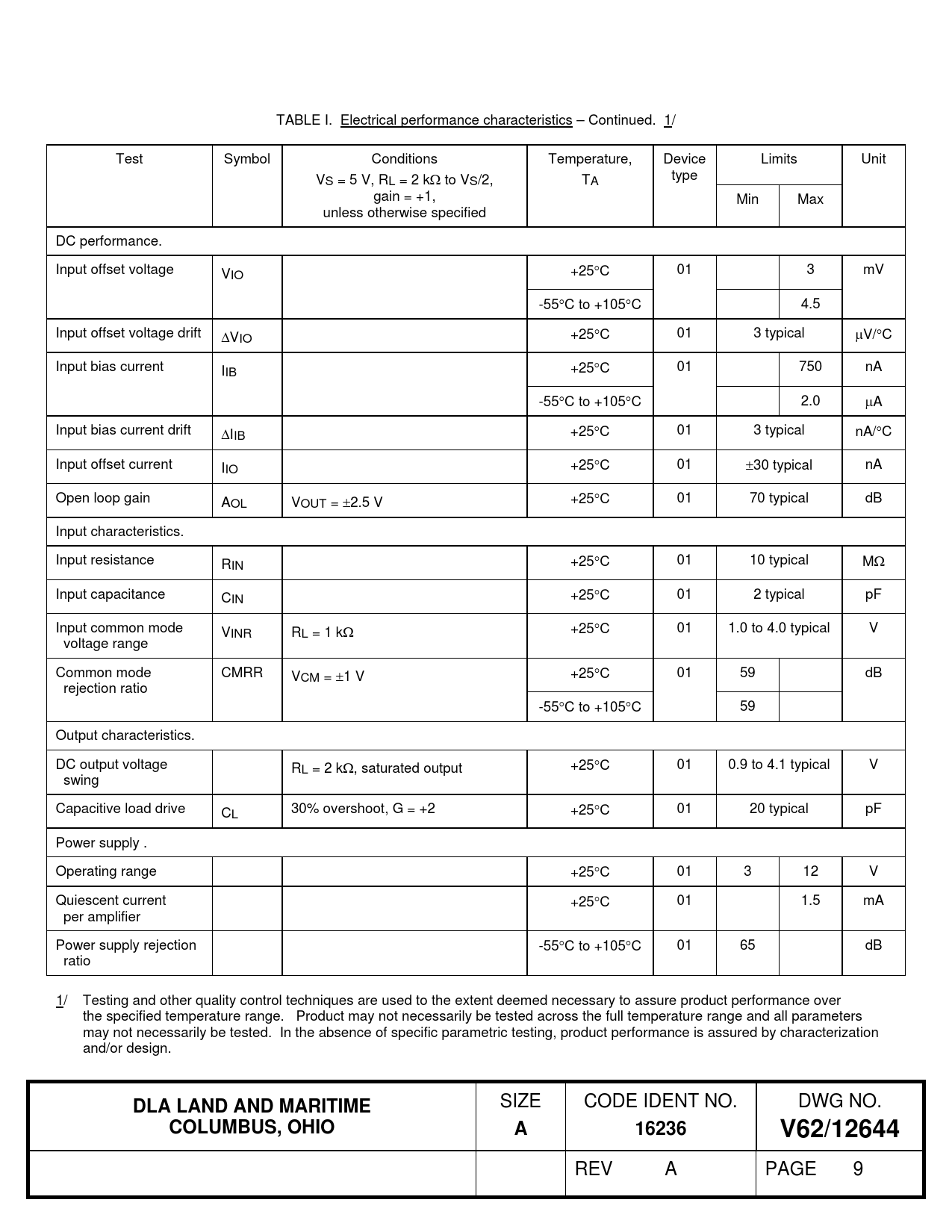

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 5 V, RL = 2 k to VS/2, TA type gain = +1, Min Max unless otherwise specified DC performance. Input offset voltage VIO +25C 01 3 mV -55C to +105C 4.5 Input offset voltage drift VIO +25C 01 3 typical V/C Input bias current IIB +25C 01 750 nA -55C to +105C 2.0 A Input bias current drift IIB +25C 01 3 typical nA/C Input offset current IIO +25C 01 30 typical nA Open loop gain AOL VOUT = 2.5 V +25C 01 70 typical dB Input characteristics. Input resistance RIN +25C 01 10 typical M Input capacitance CIN +25C 01 2 typical pF Input common mode VINR RL = 1 k +25C 01 1.0 to 4.0 typical V voltage range Common mode CMRR VCM = 1 V +25C 01 59 dB rejection ratio -55C to +105C 59 Output characteristics. DC output voltage RL = 2 k, saturated output +25C 01 0.9 to 4.1 typical V swing Capacitive load drive CL 30% overshoot, G = +2 +25C 01 20 typical pF Power supply . Operating range +25C 01 3 12 V Quiescent current +25C 01 1.5 mA per amplifier Power supply rejection -55C to +105C 01 65 dB ratio 1/ Testing and other quality control techniques are used to the extent deemed necessary to assure product performance over the specified temperature range. Product may not necessarily be tested across the full temperature range and all parameters may not necessarily be tested. In the absence of specific parametric testing, product performance is assured by characterization and/or design. DLA LAND AND MARITIME SIZE CODE IDENT NO. DWG NO. COLUMBUS, OHIOA16236V62/12644 REV A PAGE 9
