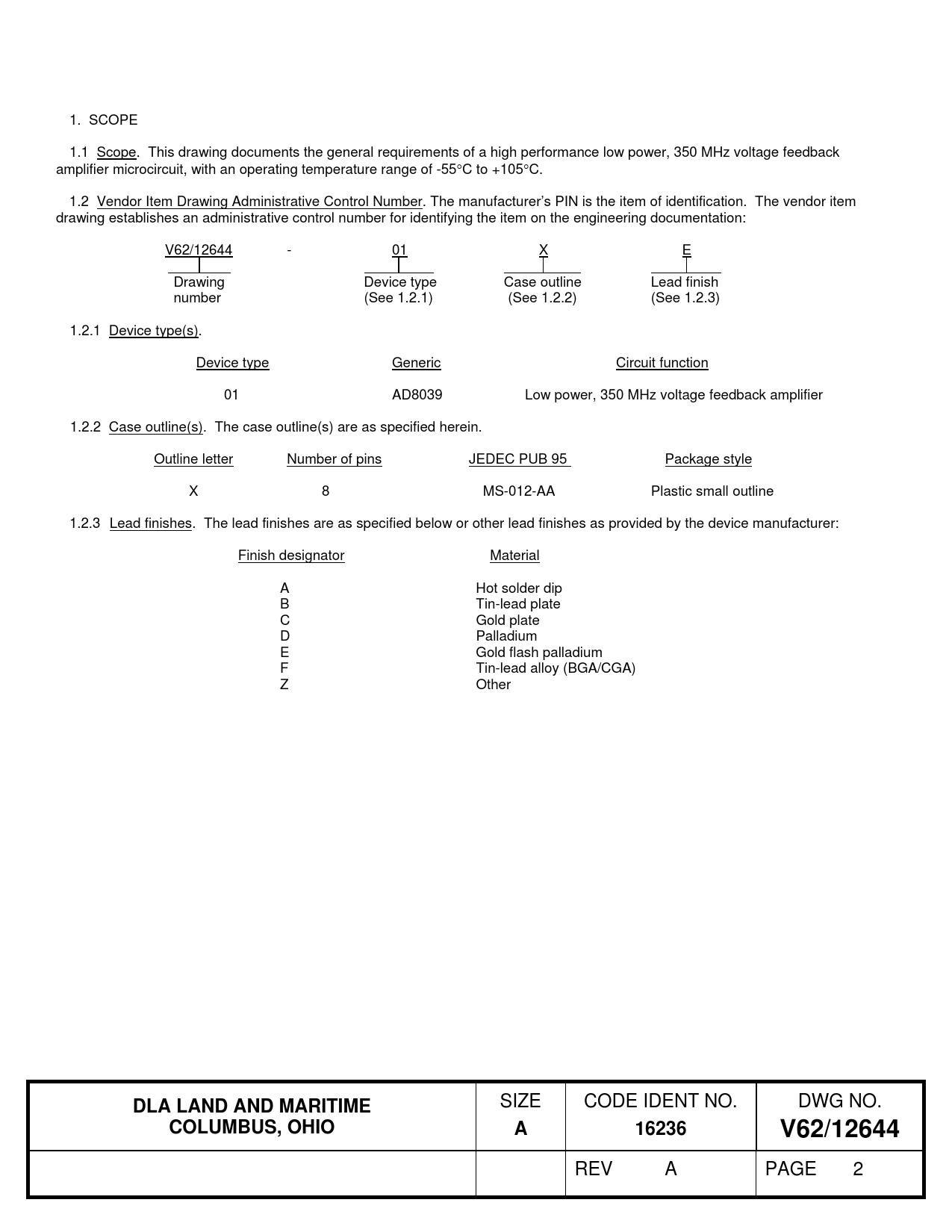

1. SCOPE 1.1 Scope. This drawing documents the general requirements of a high performance low power, 350 MHz voltage feedback amplifier microcircuit, with an operating temperature range of -55C to +105C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/12644 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s). Device type Generic Circuit function 01 AD8039 Low power, 350 MHz voltage feedback amplifier 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 8 MS-012-AA Plastic small outline 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium F Tin-lead alloy (BGA/CGA) Z Other
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12644
REV A PAGE 2
