Datasheet AD8039-EP (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Low Power, 350 MHz Voltage Feedback Amplifier |
| Seiten / Seite | 8 / 3 — AD8039-EP. SPECIFICATIONS. Table 1. Parameter Test. Conditions/Comments. … |
| Dateiformat / Größe | PDF / 238 Kb |
| Dokumentensprache | Englisch |
AD8039-EP. SPECIFICATIONS. Table 1. Parameter Test. Conditions/Comments. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments

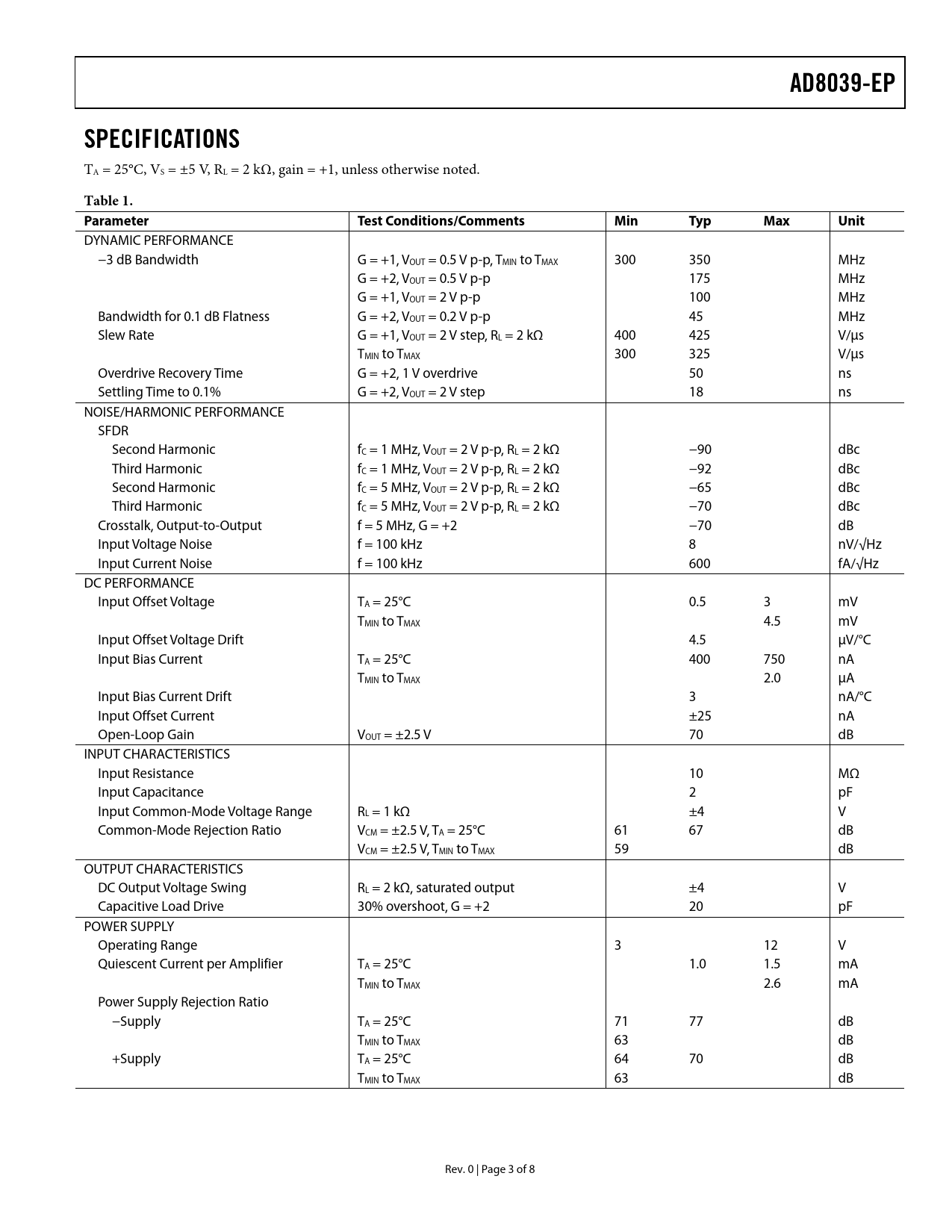

AD8039-EP SPECIFICATIONS
TA = 25°C, VS = ±5 V, RL = 2 kΩ, gain = +1, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VOUT = 0.5 V p-p, TMIN to TMAX 300 350 MHz G = +2, VOUT = 0.5 V p-p 175 MHz G = +1, VOUT = 2 V p-p 100 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p 45 MHz Slew Rate G = +1, VOUT = 2 V step, RL = 2 kΩ 400 425 V/μs TMIN to TMAX 300 325 V/μs Overdrive Recovery Time G = +2, 1 V overdrive 50 ns Settling Time to 0.1% G = +2, VOUT = 2 V step 18 ns NOISE/HARMONIC PERFORMANCE SFDR Second Harmonic fC = 1 MHz, VOUT = 2 V p-p, RL = 2 kΩ −90 dBc Third Harmonic fC = 1 MHz, VOUT = 2 V p-p, RL = 2 kΩ −92 dBc Second Harmonic fC = 5 MHz, VOUT = 2 V p-p, RL = 2 kΩ −65 dBc Third Harmonic fC = 5 MHz, VOUT = 2 V p-p, RL = 2 kΩ −70 dBc Crosstalk, Output-to-Output f = 5 MHz, G = +2 −70 dB Input Voltage Noise f = 100 kHz 8 nV/√Hz Input Current Noise f = 100 kHz 600 fA/√Hz DC PERFORMANCE Input Offset Voltage TA = 25°C 0.5 3 mV TMIN to TMAX 4.5 mV Input Offset Voltage Drift 4.5 μV/°C Input Bias Current TA = 25°C 400 750 nA TMIN to TMAX 2.0 μA Input Bias Current Drift 3 nA/°C Input Offset Current ±25 nA Open-Loop Gain VOUT = ±2.5 V 70 dB INPUT CHARACTERISTICS Input Resistance 10 MΩ Input Capacitance 2 pF Input Common-Mode Voltage Range RL = 1 kΩ ±4 V Common-Mode Rejection Ratio VCM = ±2.5 V, TA = 25°C 61 67 dB VCM = ±2.5 V, TMIN to TMAX 59 dB OUTPUT CHARACTERISTICS DC Output Voltage Swing RL = 2 kΩ, saturated output ±4 V Capacitive Load Drive 30% overshoot, G = +2 20 pF POWER SUPPLY Operating Range 3 12 V Quiescent Current per Amplifier TA = 25°C 1.0 1.5 mA TMIN to TMAX 2.6 mA Power Supply Rejection Ratio −Supply TA = 25°C 71 77 dB TMIN to TMAX 63 dB +Supply TA = 25°C 64 70 dB TMIN to TMAX 63 dB Rev. 0 | Page 3 of 8 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION OUTPUT SHORT CIRCUIT ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
TA = 25°C, VS = ±5 V, RL = 2 kΩ, gain = +1, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +1, VOUT = 0.5 V p-p, TMIN to TMAX 300 350 MHz G = +2, VOUT = 0.5 V p-p 175 MHz G = +1, VOUT = 2 V p-p 100 MHz Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p 45 MHz Slew Rate G = +1, VOUT = 2 V step, RL = 2 kΩ 400 425 V/μs TMIN to TMAX 300 325 V/μs Overdrive Recovery Time G = +2, 1 V overdrive 50 ns Settling Time to 0.1% G = +2, VOUT = 2 V step 18 ns NOISE/HARMONIC PERFORMANCE SFDR Second Harmonic fC = 1 MHz, VOUT = 2 V p-p, RL = 2 kΩ −90 dBc Third Harmonic fC = 1 MHz, VOUT = 2 V p-p, RL = 2 kΩ −92 dBc Second Harmonic fC = 5 MHz, VOUT = 2 V p-p, RL = 2 kΩ −65 dBc Third Harmonic fC = 5 MHz, VOUT = 2 V p-p, RL = 2 kΩ −70 dBc Crosstalk, Output-to-Output f = 5 MHz, G = +2 −70 dB Input Voltage Noise f = 100 kHz 8 nV/√Hz Input Current Noise f = 100 kHz 600 fA/√Hz DC PERFORMANCE Input Offset Voltage TA = 25°C 0.5 3 mV TMIN to TMAX 4.5 mV Input Offset Voltage Drift 4.5 μV/°C Input Bias Current TA = 25°C 400 750 nA TMIN to TMAX 2.0 μA Input Bias Current Drift 3 nA/°C Input Offset Current ±25 nA Open-Loop Gain VOUT = ±2.5 V 70 dB INPUT CHARACTERISTICS Input Resistance 10 MΩ Input Capacitance 2 pF Input Common-Mode Voltage Range RL = 1 kΩ ±4 V Common-Mode Rejection Ratio VCM = ±2.5 V, TA = 25°C 61 67 dB VCM = ±2.5 V, TMIN to TMAX 59 dB OUTPUT CHARACTERISTICS DC Output Voltage Swing RL = 2 kΩ, saturated output ±4 V Capacitive Load Drive 30% overshoot, G = +2 20 pF POWER SUPPLY Operating Range 3 12 V Quiescent Current per Amplifier TA = 25°C 1.0 1.5 mA TMIN to TMAX 2.6 mA Power Supply Rejection Ratio −Supply TA = 25°C 71 77 dB TMIN to TMAX 63 dB +Supply TA = 25°C 64 70 dB TMIN to TMAX 63 dB Rev. 0 | Page 3 of 8 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION OUTPUT SHORT CIRCUIT ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
