Known Good Die. AD8028-KGD-CHIP. PAD CONFIGURATION AND FUNCTION DESCRIPTIONS. ADI Logo
Modelllinie für dieses Datenblatt
Textversion des Dokuments

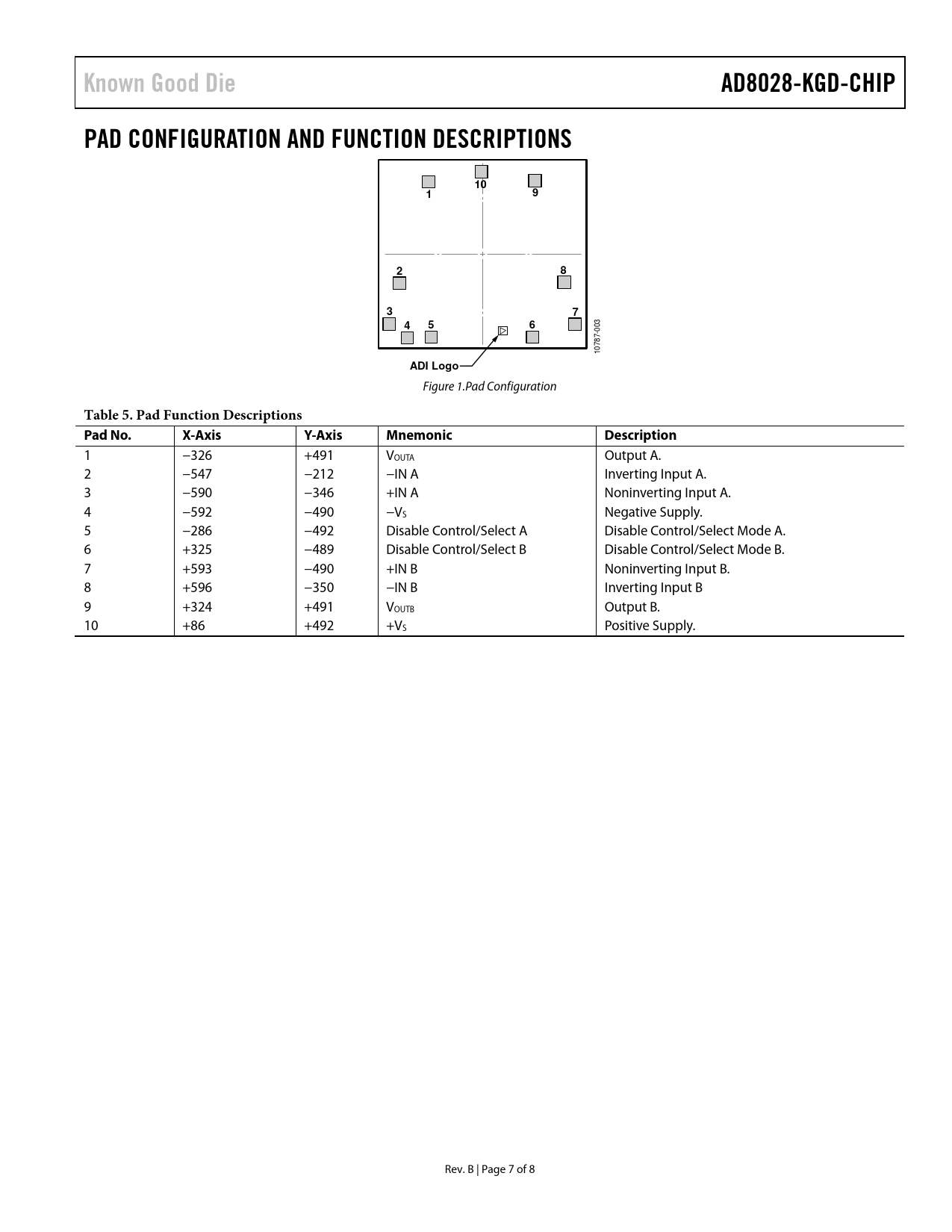

Known Good Die AD8028-KGD-CHIP PAD CONFIGURATION AND FUNCTION DESCRIPTIONS 10 1 9 2 8 3 7 4 5 6
003 10787-
ADI Logo
Figure 1.Pad Configuration
Table 5. Pad Function Descriptions Pad No. X-Axis Y-Axis Mnemonic Description
1 −326 +491 VOUTA Output A. 2 −547 −212 −IN A Inverting Input A. 3 −590 −346 +IN A Noninverting Input A. 4 −592 −490 −VS Negative Supply. 5 −286 −492 Disable Control/Select A Disable Control/Select Mode A. 6 +325 −489 Disable Control/Select B Disable Control/Select Mode B. 7 +593 −490 +IN B Noninverting Input B. 8 +596 −350 −IN B Inverting Input B 9 +324 +491 VOUTB Output B. 10 +86 +492 +VS Positive Supply. Rev. B | Page 7 of 8 Document Outline Features Applications General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
