Datasheet ADA4841-2KGD (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier |
| Seiten / Seite | 9 / 9 — Known Good Die. ADA4841-2KGD. Table 7. Assembly Recommendations Assembly … |
| Revision | A |
| Dateiformat / Größe | PDF / 164 Kb |
| Dokumentensprache | Englisch |

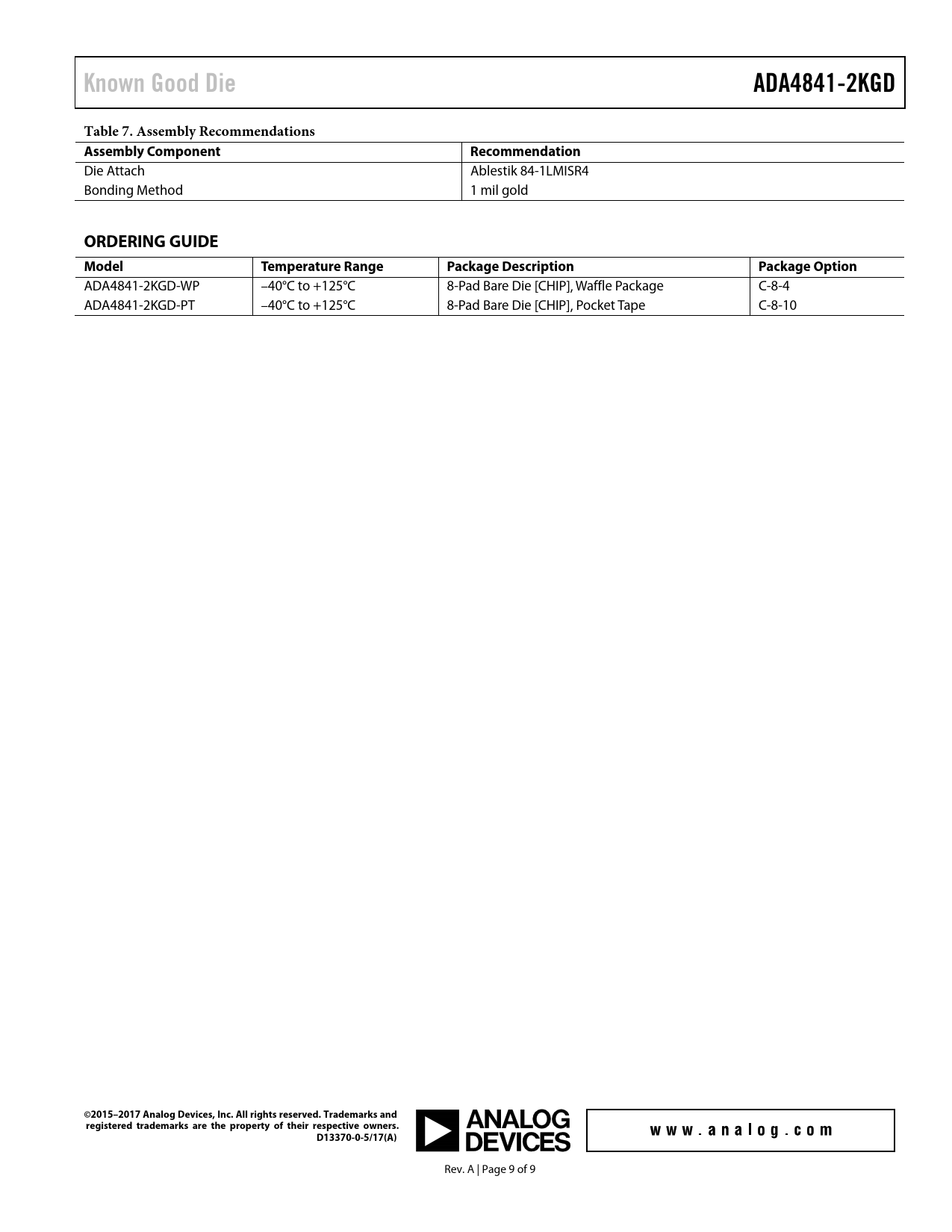

Known Good Die. ADA4841-2KGD. Table 7. Assembly Recommendations Assembly Component. Recommendation. ORDERING GUIDE
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Known Good Die ADA4841-2KGD Table 7. Assembly Recommendations Assembly Component Recommendation
Die Attach Ablestik 84-1LMISR4 Bonding Method 1 mil gold
ORDERING GUIDE Model Temperature Range Package Description Package Option
ADA4841-2KGD-WP –40°C to +125°C 8-Pad Bare Die [CHIP], Waffle Package C-8-4 ADA4841-2KGD-PT –40°C to +125°C 8-Pad Bare Die [CHIP], Pocket Tape C-8-10
