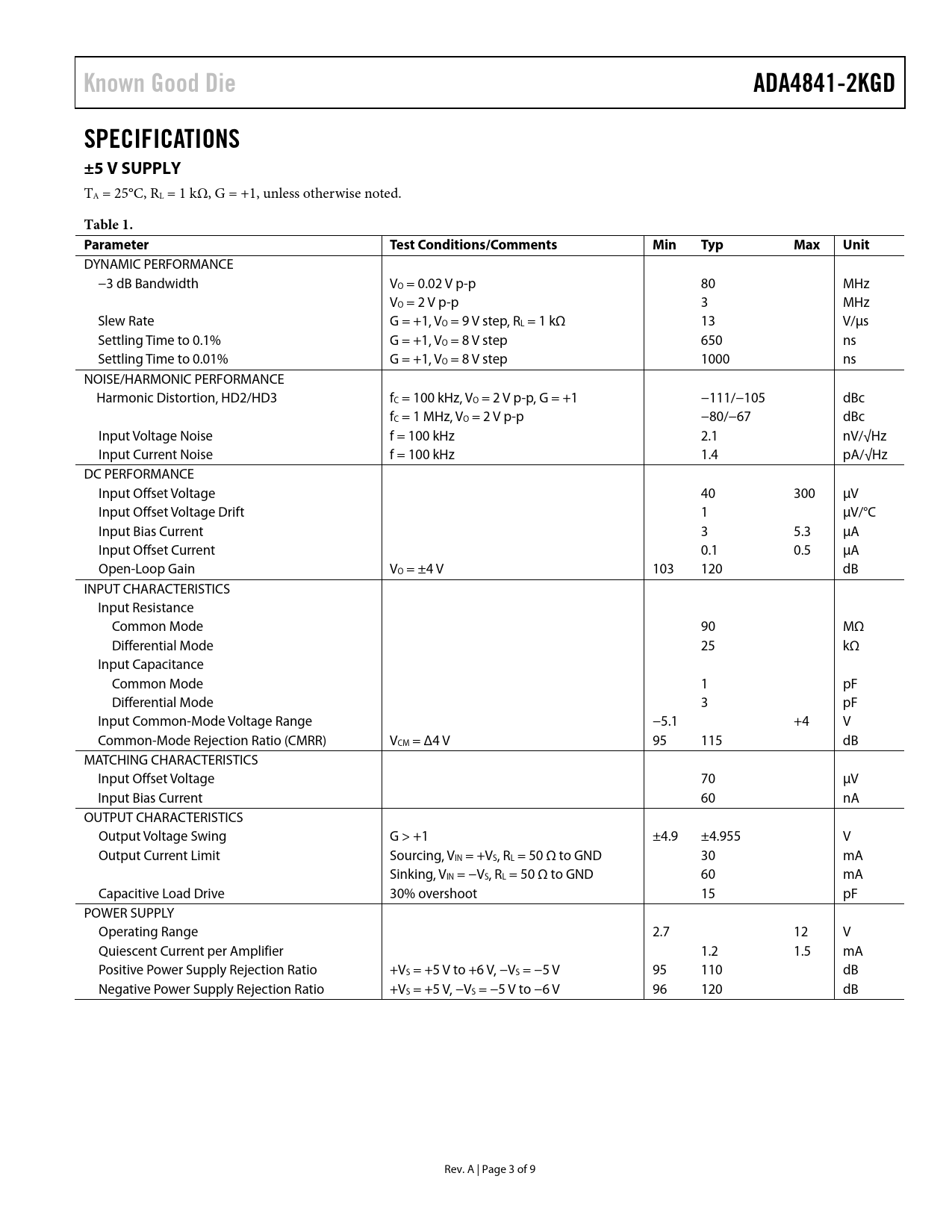

Known Good Die ADA4841-2KGD SPECIFICATIONS ±5 V SUPPLY
TA = 25°C, RL = 1 kΩ, G = +1, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
