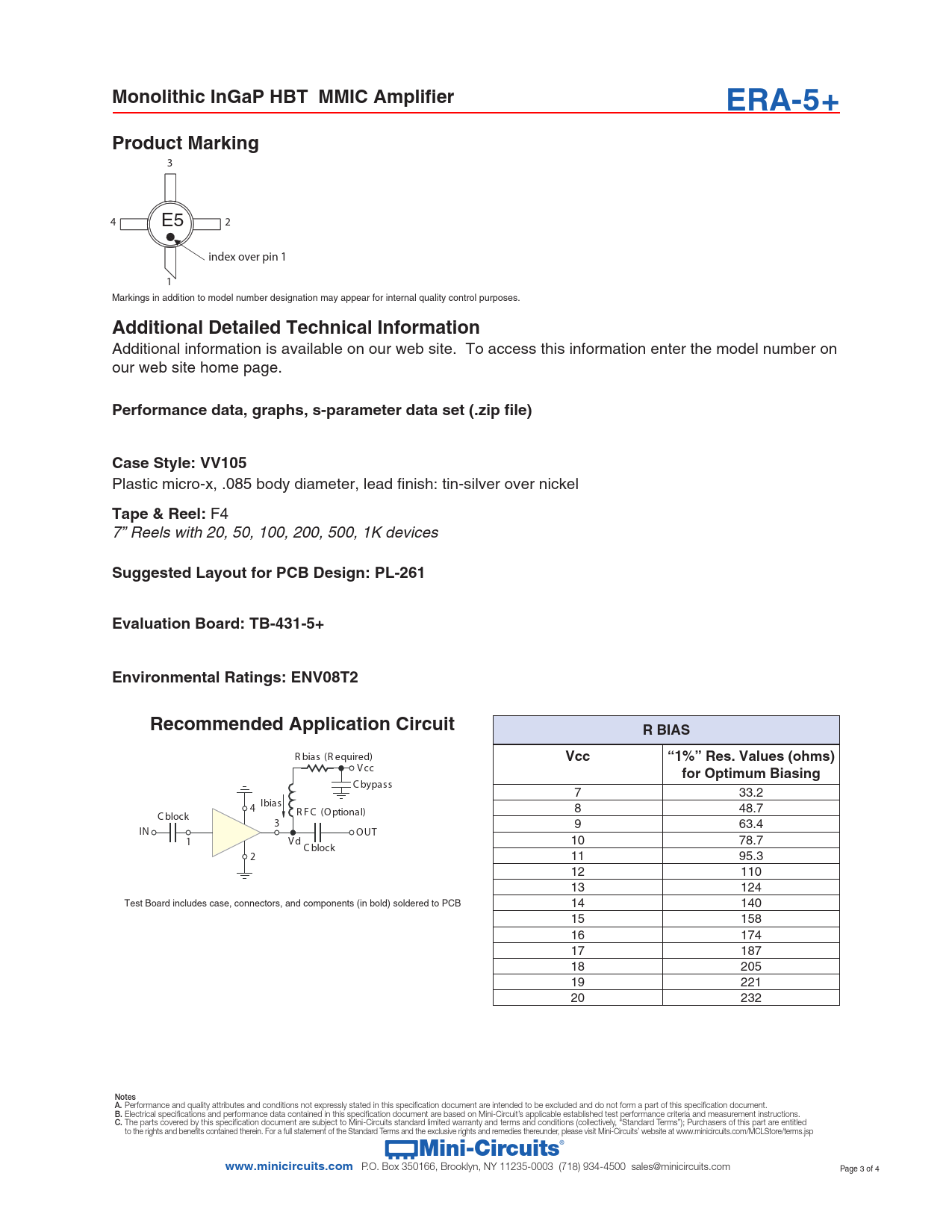

Datasheet ERA-5+ Full Version (Mini-Circuits) - 3

Monolithic InGaP HBT MMIC Amplifier ERA-5+ Product Marking
3 4 E5 2 index over pin 1 1 Markings in addition to model number designation may appear for internal quality control purposes.
Additional Detailed Technical Information
Additional information is available on our web site. To access this information enter the model number on our web site home page.
Performance data, graphs, s-parameter data set (.zip file) Case Style: VV105
Plastic micro-x, .085 body diameter, lead finish: tin-silver over nickel
Tape & Reel:
F4 7” Reels with 20, 50, 100, 200, 500, 1K devices
Suggested Layout for PCB Design: PL-261 Evaluation Board: TB-431-5+ Environmental Ratings: ENV08T2 Recommended Application Circuit R BIAS
R bias (R equired)
Vcc “1%” Res. Values (ohms)
V cc
for Optimum Biasing
C bypass 7 33.2 4 Ibias 8 48.7 C block R F C (Optional) 3 9 63.4 IN OUT 1 V d 10 78.7 C block 2 11 95.3 12 110 13 124 Test Board includes case, connectors, and components (in bold) soldered to PCB 14 140 15 158 16 174 17 187 18 205 19 221 20 232 Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
