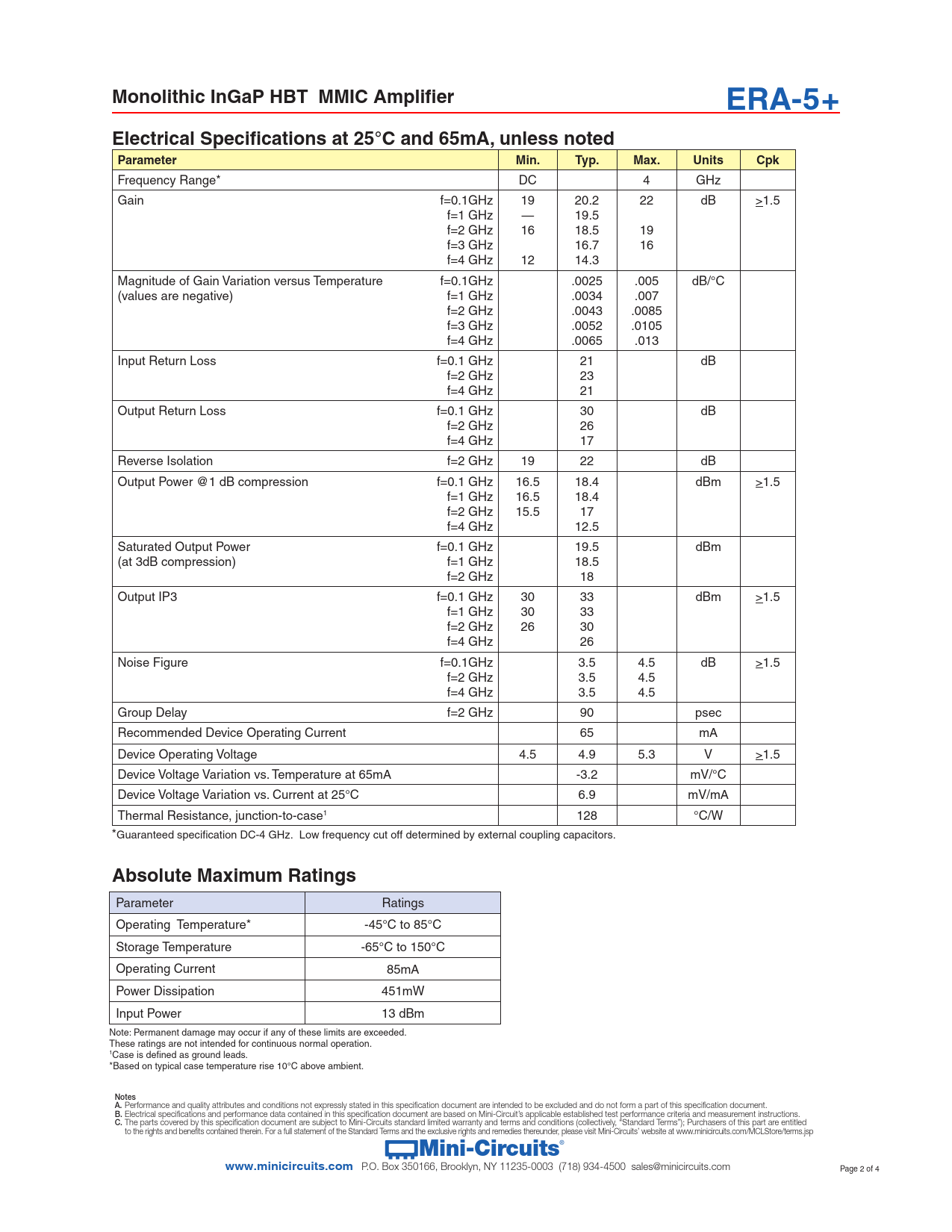

Monolithic InGaP HBT MMIC Amplifier. ERA-5+. Electrical Specifications at 25°C and 65mA, unless noted. Parameter. Min. Typ. Max
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Monolithic InGaP HBT MMIC Amplifier ERA-5+ Electrical Specifications at 25°C and 65mA, unless noted Parameter Min. Typ. Max. Units Cpk
Frequency Range* DC 4 GHz Gain f=0.1GHz 19 20.2 22 dB >1.5 f=1 GHz — 19.5 f=2 GHz 16 18.5 19 f=3 GHz 16.7 16 f=4 GHz 12 14.3 Magnitude of Gain Variation versus Temperature f=0.1GHz .0025 .005 dB/°C (values are negative) f=1 GHz .0034 .007 f=2 GHz .0043 .0085 f=3 GHz .0052 .0105 f=4 GHz .0065 .013 Input Return Loss f=0.1 GHz 21 dB f=2 GHz 23 f=4 GHz 21 Output Return Loss f=0.1 GHz 30 dB f=2 GHz 26 f=4 GHz 17 Reverse Isolation f=2 GHz 19 22 dB Output Power @1 dB compression f=0.1 GHz 16.5 18.4 dBm >1.5 f=1 GHz 16.5 18.4 f=2 GHz 15.5 17 f=4 GHz 12.5 Saturated Output Power f=0.1 GHz 19.5 dBm (at 3dB compression) f=1 GHz 18.5 f=2 GHz 18 Output IP3 f=0.1 GHz 30 33 dBm >1.5 f=1 GHz 30 33 f=2 GHz 26 30 f=4 GHz 26 Noise Figure f=0.1GHz 3.5 4.5 dB >1.5 f=2 GHz 3.5 4.5 f=4 GHz 3.5 4.5 Group Delay f=2 GHz 90 psec Recommended Device Operating Current 65 mA Device Operating Voltage 4.5 4.9 5.3 V >1.5 Device Voltage Variation vs. Temperature at 65mA -3.2 mV/°C Device Voltage Variation vs. Current at 25°C 6.9 mV/mA Thermal Resistance, junction-to-case1 128 °C/W *Guaranteed specification DC-4 GHz. Low frequency cut off determined by external coupling capacitors.
Absolute Maximum Ratings
Parameter Ratings Operating Temperature* -45°C to 85°C Storage Temperature -65°C to 150°C Operating Current 85mA Power Dissipation 451mW Input Power 13 dBm Note: Permanent damage may occur if any of these limits are exceeded. These ratings are not intended for continuous normal operation. 1Case is defined as ground leads. *Based on typical case temperature rise 10°C above ambient. Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
