Data Sheet. ADIS16060. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. MSEL. 3.6865 BSC. DIN. 2 1. GND. 2.5050 BSC. PIN 1 INDICATOR. SCLK. 1 1
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 8 link to page 8

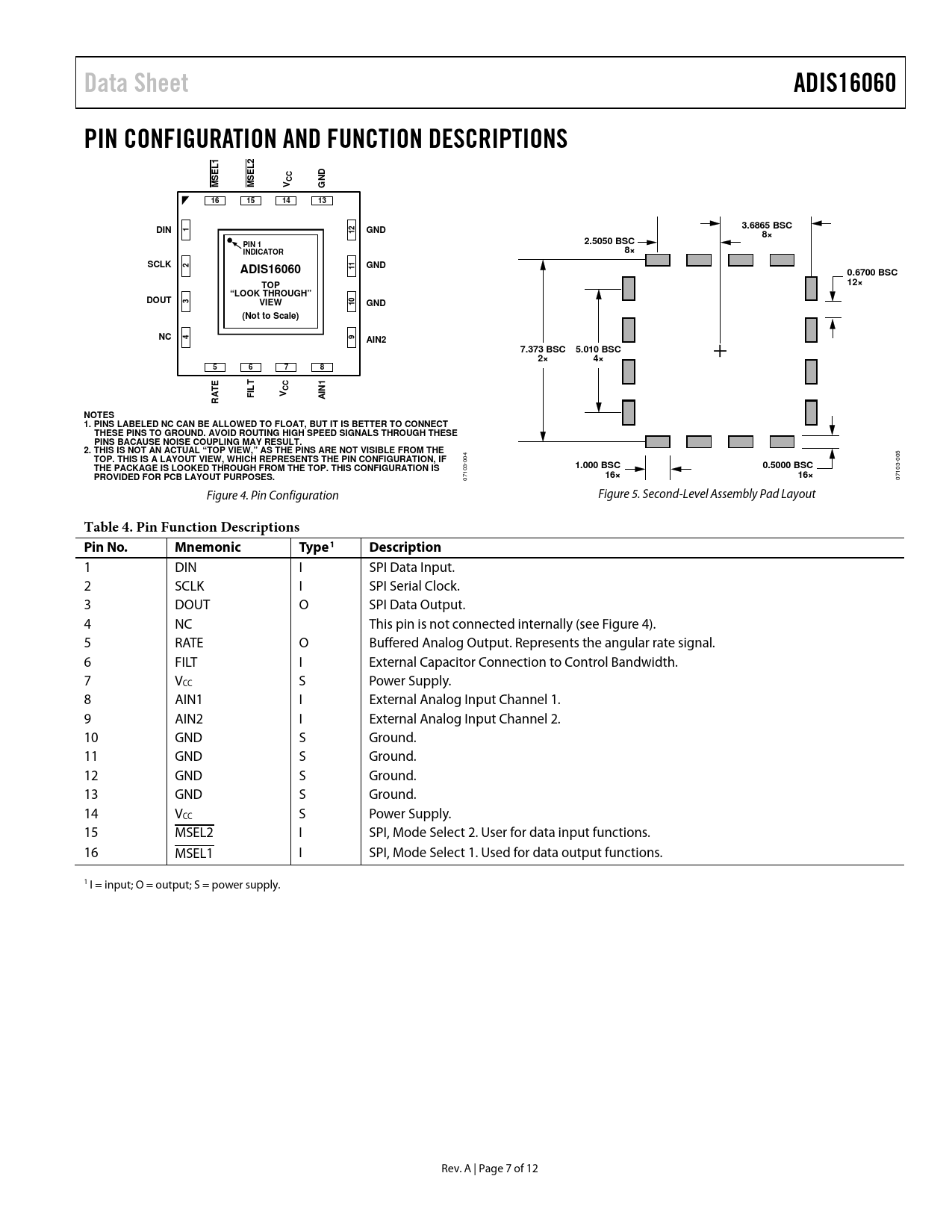

Data Sheet ADIS16060 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 2 CC ND MSEL MSEL V G 16 15 14 13 3.6865 BSC DIN 1 2 1 GND 8× 2.5050 BSC PIN 1 INDICATOR 8× SCLK 2 1 1 GND ADIS16060 0.6700 BSC TOP 12× “LOOK THROUGH” DOUT 3 VIEW 0 1 GND (Not to Scale) NC 4 9 AIN2 7.373 BSC 5.010 BSC 2× 4× 5 6 7 8 E CC N1 V FILT AI RAT NOTES 1. PINS LABELED NC CAN BE ALLOWED TO FLOAT, BUT IT IS BETTER TO CONNECT THESE PINS TO GROUND. AVOID ROUTING HIGH SPEED SIGNALS THROUGH THESE PINS BACAUSE NOISE COUPLING MAY RESULT. 2. THIS IS NOT AN ACTUAL “TOP VIEW,” AS THE PINS ARE NOT VISIBLE FROM THE
04 05
TOP. THIS IS A LAYOUT VIEW, WHICH REPRESENTS THE PIN CONFIGURATION, IF
-0 -0 3 3
THE PACKAGE IS LOOKED THROUGH FROM THE TOP. THIS CONFIGURATION IS 1.000 BSC 0.5000 BSC
0 0 1 1 7
PROVIDED FOR PCB LAYOUT PURPOSES. 16× 16×
7 0 0 Figure 4. Pin Configuration Figure 5. Second-Level Assembly Pad Layout
Table 4. Pin Function Descriptions Pin No. Mnemonic Type1 Description
1 DIN I SPI Data Input. 2 SCLK I SPI Serial Clock. 3 DOUT O SPI Data Output. 4 NC This pin is not connected internally (see Figure 4). 5 RATE O Buffered Analog Output. Represents the angular rate signal. 6 FILT I External Capacitor Connection to Control Bandwidth. 7 VCC S Power Supply. 8 AIN1 I External Analog Input Channel 1. 9 AIN2 I External Analog Input Channel 2. 10 GND S Ground. 11 GND S Ground. 12 GND S Ground. 13 GND S Ground. 14 VCC S Power Supply. 15 MSEL2 I SPI, Mode Select 2. User for data input functions. 16 MSEL1 I SPI, Mode Select 1. Used for data output functions. 1 I = input; O = output; S = power supply. Rev. A | Page 7 of 12 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Specifications Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Analog-to-Digital Converter Input Rate Sensitive Axis Basic Operation Serial Peripheral Interface (SPI) Selecting Output Data Output Data Access Output Data Formatting ADC Conversion Applications Information Supply And Common Considerations Setting Bandwidth Increasing Measurement Range Dynamic Digital Sensitivity Scaling Temperature Measurements Self-Test Function Outline Dimensions Ordering Guide
