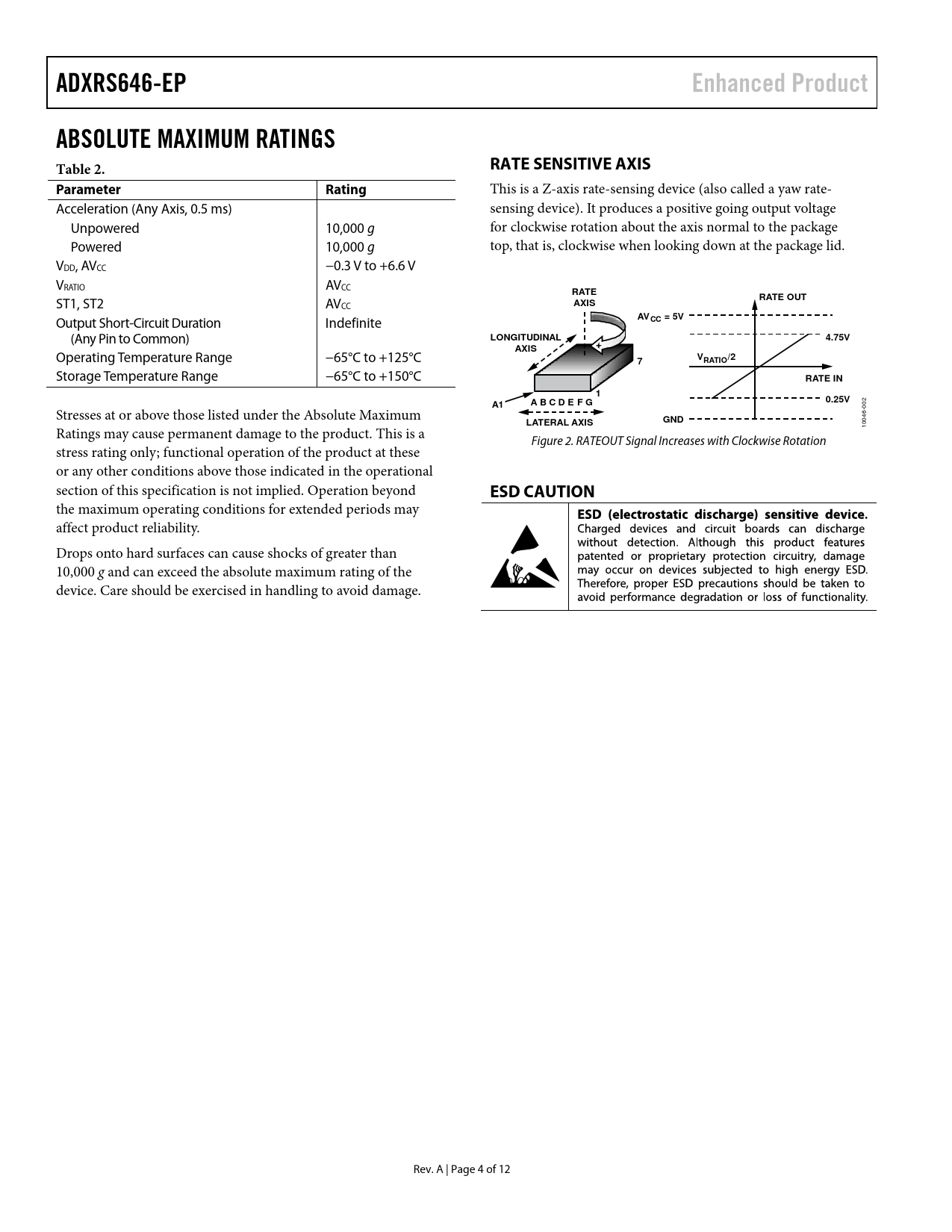

ADXRS646-EP Enhanced Product ABSOLUTE MAXIMUM RATINGS Table 2. RATE SENSITIVE AXIS Parameter Rating
This is a Z-axis rate-sensing device (also called a yaw rate- Acceleration (Any Axis, 0.5 ms) sensing device). It produces a positive going output voltage Unpowered 10,000 g for clockwise rotation about the axis normal to the package Powered 10,000 g top, that is, clockwise when looking down at the package lid. VDD, AVCC −0.3 V to +6.6 V VRATIO AVCC
RATE RATE OUT
ST1, ST2 AVCC
AXIS AV
Output Short-Circuit Duration Indefinite
CC = 5V
(Any Pin to Common)
LONGITUDINAL 4.75V AXIS +
Operating Temperature Range −65°C to +125°C
V 7 RATIO/2
Storage Temperature Range −65°C to +150°C
RATE IN 1 A B C D E F G 0.25V A1
-002 Stresses at or above those listed under the Absolute Maximum
LATERAL AXIS GND
10046 Ratings may cause permanent damage to the product. This is a Figure 2. RATEOUT Signal Increases with Clockwise Rotation stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond
ESD CAUTION
the maximum operating conditions for extended periods may affect product reliability. Drops onto hard surfaces can cause shocks of greater than 10,000 g and can exceed the absolute maximum rating of the device. Care should be exercised in handling to avoid damage. Rev. A | Page 4 of 12 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS RATE SENSITIVE AXIS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES NOTES
