Datasheet ADXRS646 (Analog Devices)

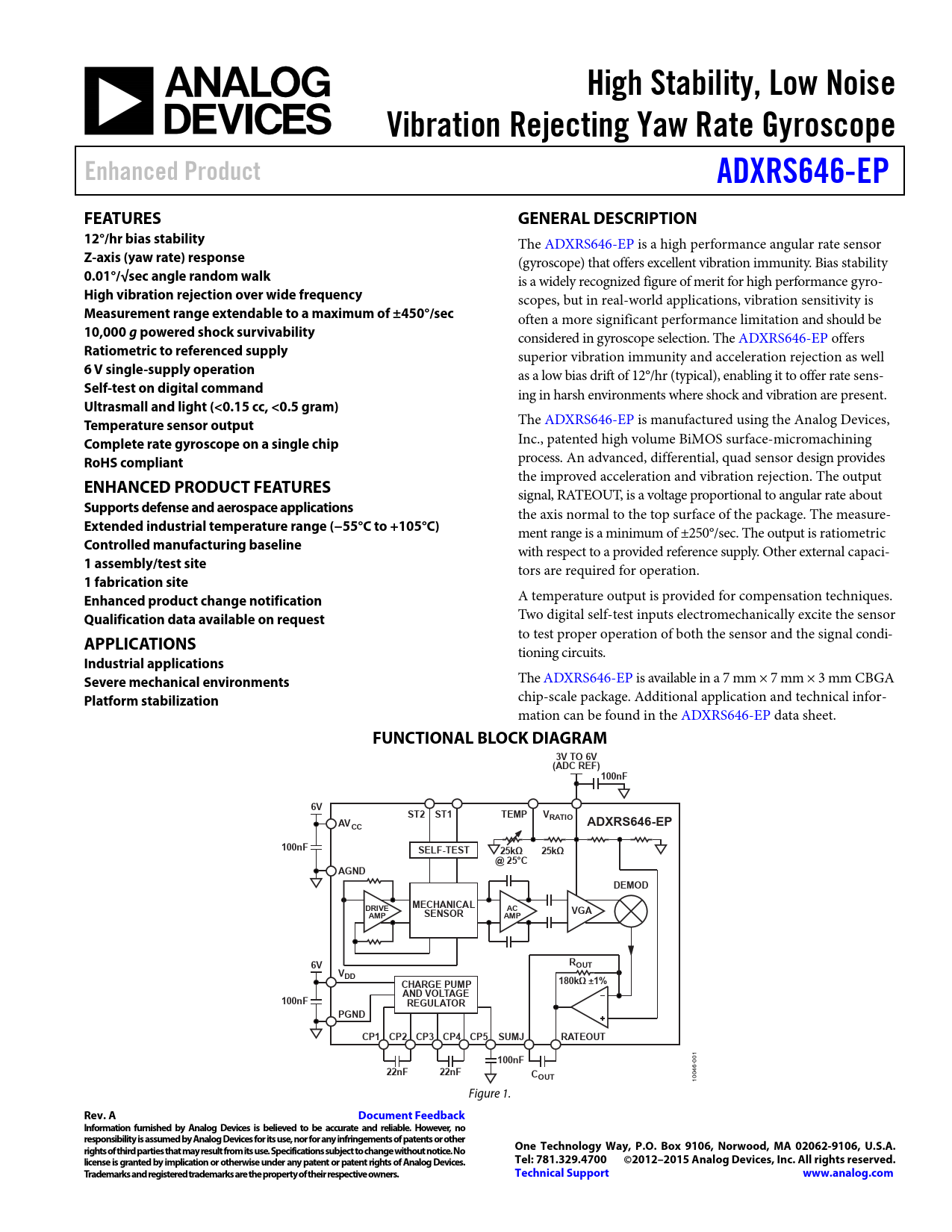

High Stability, Low Noise Vibration Rejecting Yaw Rate Gyroscope Enhanced Product ADXRS646-EP FEATURES GENERAL DESCRIPTION 12°/hr bias stability
The ADXRS646-EP is a high performance angular rate sensor
Z-axis (yaw rate) response
(gyroscope) that offers excellent vibration immunity. Bias stability
0.01°/√sec angle random walk
is a widely recognized figure of merit for high performance gyro-
High vibration rejection over wide frequency
scopes, but in real-world applications, vibration sensitivity is
Measurement range extendable to a maximum of ±450°/sec
often a more significant performance limitation and should be
10,000 g powered shock survivability
considered in gyroscope selection. The ADXRS646-EP offers
Ratiometric to referenced supply
superior vibration immunity and acceleration rejection as well
6 V single-supply operation
as a low bias drift of 12°/hr (typical), enabling it to offer rate sens-
Self-test on digital command
ing in harsh environments where shock and vibration are present.
Ultrasmall and light (<0.15 cc, <0.5 gram) Temperature sensor output
The ADXRS646-EP is manufactured using the Analog Devices,
Complete rate gyroscope on a single chip
Inc., patented high volume BiMOS surface-micromachining
RoHS compliant
process. An advanced, differential, quad sensor design provides the improved acceleration and vibration rejection. The output
ENHANCED PRODUCT FEATURES
signal, RATEOUT, is a voltage proportional to angular rate about
Supports defense and aerospace applications
the axis normal to the top surface of the package. The measure-
Extended industrial temperature range (−55°C to +105°C)
ment range is a minimum of ±250°/sec. The output is ratiometric
Controlled manufacturing baseline
with respect to a provided reference supply. Other external capaci-
1 assembly/test site
tors are required for operation.
1 fabrication site Enhanced product change notification
A temperature output is provided for compensation techniques.
Qualification data available on request
Two digital self-test inputs electromechanically excite the sensor to test proper operation of both the sensor and the signal condi-
APPLICATIONS
tioning circuits.
Industrial applications Severe mechanical environments
The ADXRS646-EP is available in a 7 mm × 7 mm × 3 mm CBGA
Platform stabilization
chip-scale package. Additional application and technical infor- mation can be found in the ADXRS646-EP data sheet.
FUNCTIONAL BLOCK DIAGRAM 3V TO 6V (ADC REF)100nF 6V ST2 ST1 TEMP VRATIO AV ADXRS646-EP CC 100nF SELF-TEST 25kΩ 25kΩ @ 25°C AGND DEMOD DRIVE MECHANICAL AC VGA AMP SENSOR AMP R 6V OUT VDD 180kΩ ±1% CHARGE PUMP AND VOLTAGE 100nF REGULATOR PGND CP1 CP2 CP3 CP4 CP5 SUMJ RATEOUT 100nF
001
22nF 22nF C
46-
OUT
100 Figure 1.
