Datasheet ADXL327 (Analog Devices) - 6

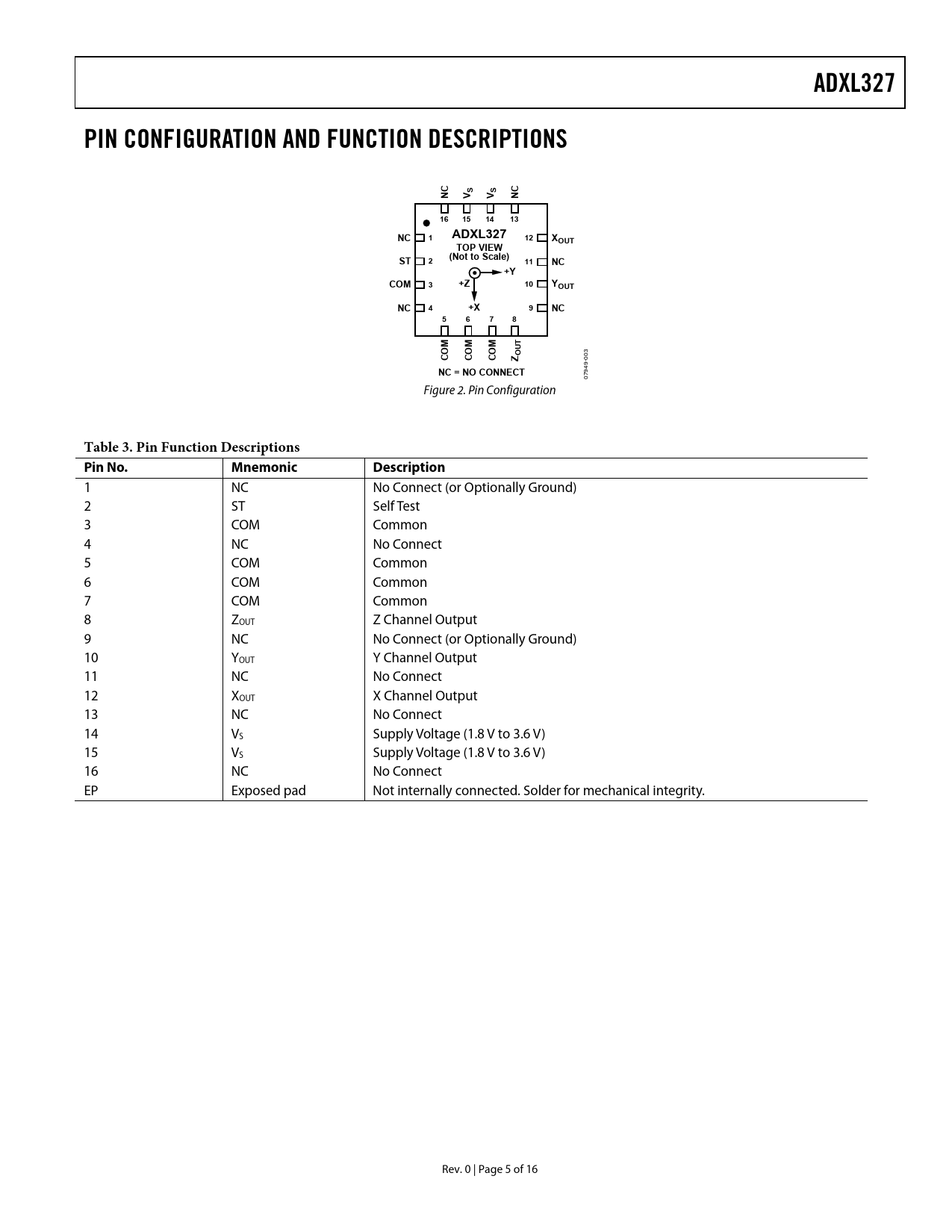

ADXL327 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS S S NC V V NC 16 15 14 13 NC 1 ADXL327 12 XOUT TOP VIEW ST (Not to Scale) 2 11 NC +Y COM 3 +Z 10 YOUT NC 4 +X 9 NC 5 6 7 8 M M M T CO CO CO Z OU
03 0 9-
NC = NO CONNECT
94 07 Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 NC No Connect (or Optionally Ground) 2 ST Self Test 3 COM Common 4 NC No Connect 5 COM Common 6 COM Common 7 COM Common 8 ZOUT Z Channel Output 9 NC No Connect (or Optionally Ground) 10 YOUT Y Channel Output 11 NC No Connect 12 XOUT X Channel Output 13 NC No Connect 14 VS Supply Voltage (1.8 V to 3.6 V) 15 VS Supply Voltage (1.8 V to 3.6 V) 16 NC No Connect EP Exposed pad Not internally connected. Solder for mechanical integrity. Rev. 0 | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL SENSOR PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX, CY, AND CZ SELF TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: THE NOISE/BW TRADE-OFF USE WITH OPERATING VOLTAGES OTHER THAN 3 V AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
