Datasheet ADXL327 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | Small, Low Power, 3-Axis ±2 g Accelerometer |
| Seiten / Seite | 17 / 5 — ADXL327. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| Dateiformat / Größe | PDF / 304 Kb |
| Dokumentensprache | Englisch |

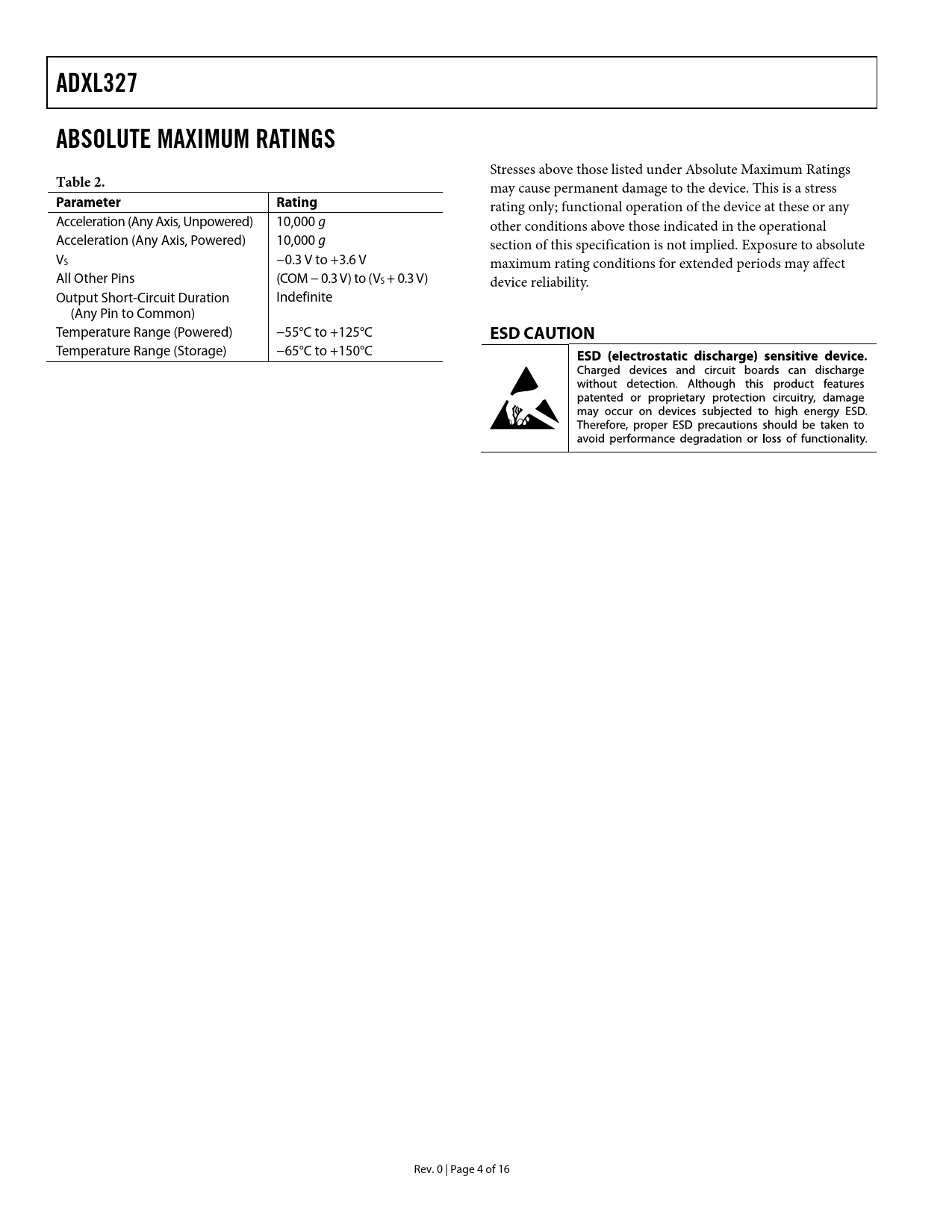

ADXL327. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADXL327 ABSOLUTE MAXIMUM RATINGS
Stresses above those listed under Absolute Maximum Ratings
Table 2.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Acceleration (Any Axis, Unpowered) 10,000 g other conditions above those indicated in the operational Acceleration (Any Axis, Powered) 10,000 g section of this specification is not implied. Exposure to absolute VS −0.3 V to +3.6 V maximum rating conditions for extended periods may affect All Other Pins (COM − 0.3 V) to (VS + 0.3 V) device reliability. Output Short-Circuit Duration Indefinite (Any Pin to Common) Temperature Range (Powered) −55°C to +125°C
ESD CAUTION
Temperature Range (Storage) −65°C to +150°C Rev. 0 | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION MECHANICAL SENSOR PERFORMANCE APPLICATIONS INFORMATION POWER SUPPLY DECOUPLING SETTING THE BANDWIDTH USING CX, CY, AND CZ SELF TEST DESIGN TRADE-OFFS FOR SELECTING FILTER CHARACTERISTICS: THE NOISE/BW TRADE-OFF USE WITH OPERATING VOLTAGES OTHER THAN 3 V AXES OF ACCELERATION SENSITIVITY LAYOUT AND DESIGN RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
