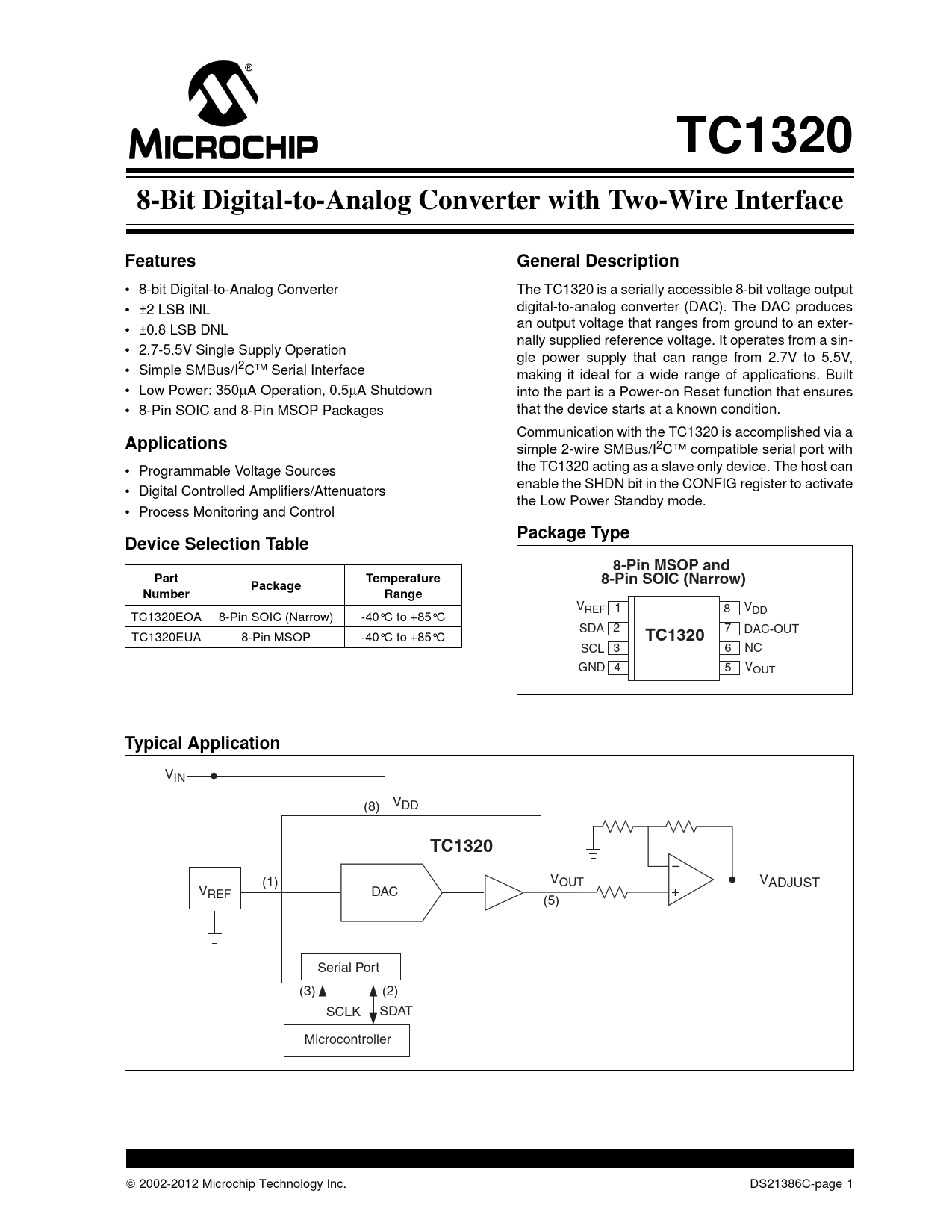

TC1320 8-Bit Digital-to-Analog Converter with Two-Wire Interface Features General Description
• 8-bit Digital-to-Analog Converter The TC1320 is a serially accessible 8-bit voltage output • ±2 LSB INL digital-to-analog converter (DAC). The DAC produces • ±0.8 LSB DNL an output voltage that ranges from ground to an exter- nally supplied reference voltage. It operates from a sin- • 2.7-5.5V Single Supply Operation gle power supply that can range from 2.7V to 5.5V, • Simple SMBus/I2CTM Serial Interface making it ideal for a wide range of applications. Built • Low Power : 350A Operation, 0.5A Shutdown into the part is a Power-on Reset function that ensures • 8-Pin SOIC and 8-Pin MSOP Packages that the device starts at a known condition. Communication with the TC1320 is accomplished via a
Applications
simple 2-wire SMBus/I2C™ compatible serial port with • Programmable Voltage Sources the TC1320 acting as a slave only device. The host can enable the SHDN bit in the CONFIG register to activate • Digital Controlled Amplifiers/Attenuators the Low Power Standby mode. • Process Monitoring and Control
Package Type Device Selection Table 8-Pin MSOP and Part Temperature 8-Pin SOIC (Narrow) Package Number Range
VREF 1 8 VDD TC1320EOA 8-Pin SOIC (Narrow) -40°C to +85°C SDA 2 7 DAC-OUT TC1320EUA 8-Pin MSOP -40°C to +85°C
TC1320
SCL 3 6 NC GND 4 5 VOUT
Typical Application
VIN V (8) DD
TC1320
– (1) VOUT VADJUST VREF DAC + (5) Serial Port (3)
(2)
(2) SCLK SDAT Microcontroller  2002-2012 Microchip Technology Inc. DS21386C-page 1
